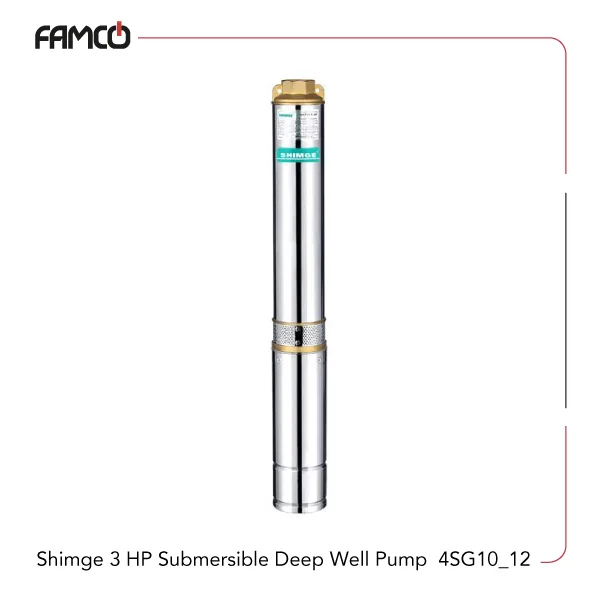

Shimge 3 HP Submersible Deep Well Pump 4SG10/12 Specifications
Shimge 3 HP submersible deep well pump 4SG10/12 operates at a frequency of 50 or 60 Hz and supports both single-phase and three-phase power systems. It delivers a power output of 2.2 kW, equivalent to 3 HP, with rated currents of 15.6A for single-phase and 7.4A for three-phase configurations. The maximum head height it can achieve is 77 meters. It can handle a maximum flow rate of 12.6 cubic meters per hour, which translates to 210 liters per minute. The device is designed to function efficiently in environments with ambient temperatures below 40°C. It can operate in water containing up to 0.01% sand by mass, with hydrogen sulfide levels up to 1.5 mg/L, and chloride ions up to 400 mg/L. The pH range for optimal operation is between 6.5 and 8.5, ensuring compatibility with most natural water sources. This product is built for durability and efficiency, suitable for various industrial and domestic water pumping needs, especially in environments with moderate chemical content and particulate matter.
| Specification | Value |
| Frequency (Hz) | 50/60 |
| Number of phases | Single- and Three-phase |
| Power (kW) | 2.2 |
| Power (HP) | 3 |
| Rated Current (A) | 15.6 (Single-phase)/7.4 (three-phase) |
| Maximum Head (m) | 77 |
| Maximum Flow rate (m3/h) | 12.6 |
| Maximum Flow rate (l/min) | 210 |
| Maximum ambient temperature | < 40°C |
| Sand content (mass fraction) | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH range | 6.5 to 8.5 |
Shimge 3 HP Submersible Deep Well Pump 4SG10/12 Applications
- Water supply systems for residential and commercial buildings
- Irrigation in agricultural fields
- Drainage and flood control projects
- Industrial water transfer and processing
Shimge 3 HP Submersible Deep Well Pump 4SG10/12 Benefits
- High flow rate and maximum head for efficient water transfer
- Supports both single-phase and three-phase power setups
- Operates reliably in environments with moderate chemical content
- Durable design suitable for various water conditions
Shimge 3 HP Submersible Deep Well Pump 4SG10/12 Price List
| No. | Name | Price |
| 1 | Shimge 3 HP Submersible Deep Well Pump 4SG10/12 Price | Contact us |
