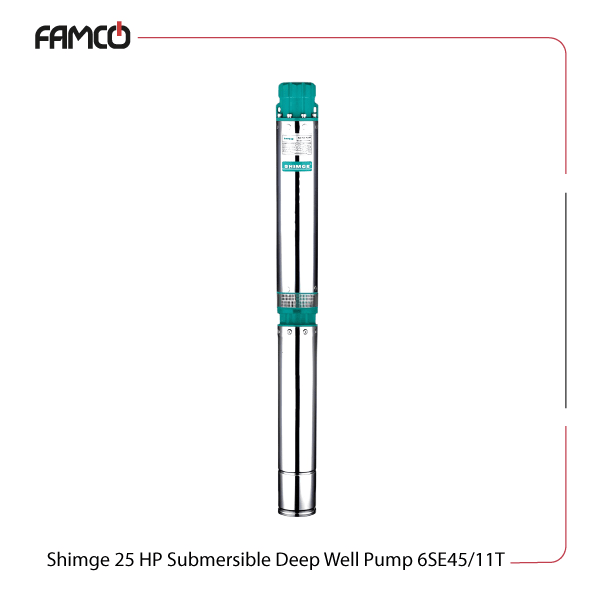

Shimge 25 HP Submersible Deep Well Pump 6SE45/11T Specifications
This product features a powerful 18.5 kW (25 HP) motor designed for efficient water pumping. It operates in environments with ambient temperatures below 40°C and can handle water with minimal sand content up to 0.01%. The pump is suitable for water containing hydrogen sulfide up to 1.5 mg/L and chloride ions up to 400 mg/L. It functions within a pH range of 6.5 to 8.5, ensuring compatibility with different water types. The pump can be immersed up to 70 meters deep, providing flexibility for deep well applications. It requires a three-phase power supply of 380V and can deliver a maximum flow rate of 1000 liters per minute or 60 cubic meters per hour. The maximum delivery head ranges from 79 to 146 meters, making this submersible pump suitable for high-head applications. Designed for installation in 6-inch boreholes, this pump is well-suited for industrial, agricultural, or municipal water supply systems that require reliable and high-capacity water transfer.
| Specification | Value |
| Power (kW) | 18.5 |
| Power (HP) | 25 |
| Max. ambient temperature (℃) | < 40 |
| Sand content | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Three-phase voltage (V) | 380 |
| Max. flow rate (l/min) | 1000 |
| Max. flow rate (m3/h) | 60 |
| Max. delivery head (m) | 79-146 |
| Placement in | 6 inch boreholes |

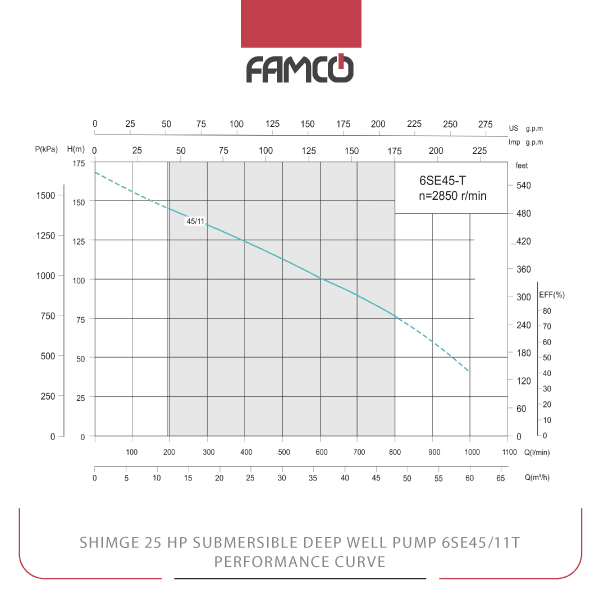

Shimge 25 HP Submersible Deep Well Pump 6SE45/11T Performance Data
| M3/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Head (m) | 169 | 155 | 144 | 134 | 124 | 113 | 101 | 89 | 76 | 60 | 40 |
Shimge 25 HP Submersible Deep Well Pump 6SE45/11T Applications
- Municipal water supply systems
- Agricultural irrigation projects
- Industrial water transfer
- Deep well water extraction
Shimge 25 HP Submersible Deep Well Pump 6SE45/11T Benefits
- High power output for demanding applications
- Suitable for deep borehole installation up to 70 meters
- Handles water with moderate contaminants
- Reliable performance with high flow and head capacity
Shimge 25 HP Submersible Deep Well Pump 6SE45/11T Price List
| No. | Name | Price |
| 1 | Shimge 25 HP Submersible Deep Well Pump 6SE45/11T Price | Contact us |
