Shimge 25 HP Submersible Deep Well Pump 6SE10/32T

18.5 kW (25 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Shimge Pumps, Shimge Submersible Pumps

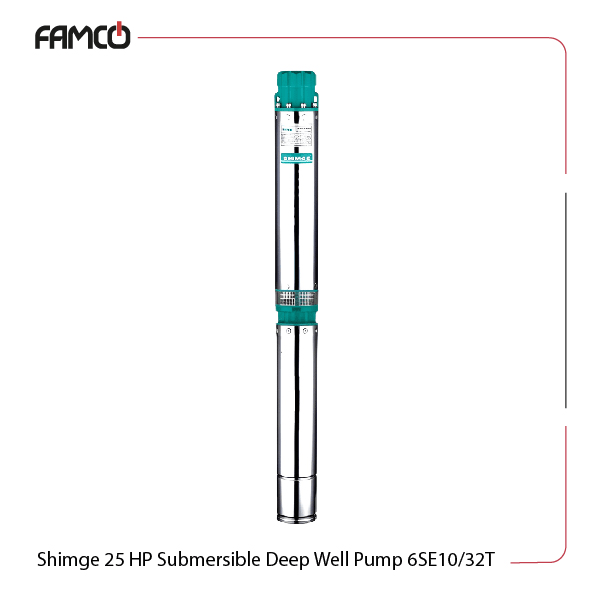

Overview of Shimge 25 HP Submersible Deep Well Pump 6SE10/32T

With 18.5 kW of power, the 6SE10/32T handles large volumes of water efficiently. Its ability to operate at depths up to 70 meters has made it the perfect solution for deep well extraction. The pump withstands water with impurities like 0.01% sand, 1.5mg/L hydrogen sulfide, and 400mg/L chlorides. It is ideal for industrial, municipal, and agricultural use by offering 300 l/min water transfer flow rate and strong pressure. Its compatibility with a 380V three-phase power supply makes it suitable for large-scale projects requiring consistent and powerful performance. Overall, this pump offers a combination of durability, efficiency, and versatility for various water pumping needs.

Shimge 25 HP Submersible Deep Well Pump 6SE10/32T Specifications

This robust pump operates with a power of 18.5 kW (25 HP), suitable for demanding applications. The 6SE10/32T can handle environments with temperatures below 40°C. As for the contaminated water, it passes liquids containing up to 0.01% sand, 1.5 mg/L hydrogen sulfide, and 400 mg/L chloride ions. The pump functions within a pH range of 6.5 to 8.5 to support different water qualities. This submersible pump can be submerged up to 70 meters deep, which comes in handy for deeper applications. Powered by a three-phase 380V system, it delivers a maximum flow rate of 300 liters per minute, or 18 cubic meters per hour.

The maximum delivery head reaches 445 meters with strong pressure for various water transfer needs. Its durable construction and high performance make it suitable for industrial, municipal, and agricultural water pumping tasks, especially in challenging environments requiring high flow and pressure capabilities.

Specification	Value
Power (kW)	18.5
Power (HP)	25
Max. ambient temperature (℃)	< 40
Sand content	up to 0.01%
Hydrogen sulfide content	up to 1.5mg/L
Chloride ion content	up to 400mg/L
pH	6.5 to 8.5
Max. immersion depth (m)	70
Three-phase voltage (V)	380
Max. flow rate (l/min)	300
Max. flow rate (m3/h)	18
Max. delivery head (m)	199 ≈ 445

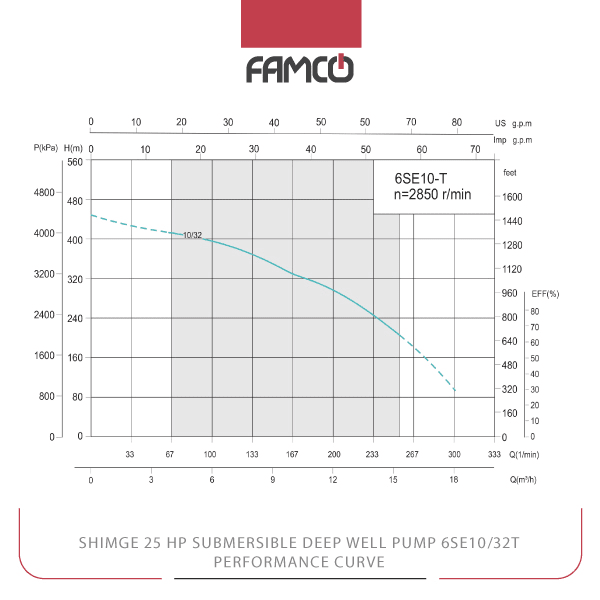

Shimge 25 HP Submersible Deep Well Pump 6SE10/32T Performance Data

M3/h	0	2	4	6	8	10	12	14	16	18
l/min	0	33	67	100	133	167	200	233	267	300
Head (m)	448	426	413	394	366	326	294	246	185	78

Shimge 25 HP Submersible Deep Well Pump 6SE10/32T Applications

Deep well water extraction
Industrial water transfer
Municipal water supply systems
Agricultural irrigation projects

Shimge 25 HP Submersible Deep Well Pump 6SE10/32T Benefits

High flow rate and strong pressure output
Capable of operating in challenging water conditions
Suitable for deep water applications up to 70 meters
Reliable and durable for long-term use

Shimge 25 HP Submersible Deep Well Pump 6SE10/32T Price List

No.	Name	Price
1	Shimge 25 HP Submersible Deep Well Pump 6SE10/32T Price	Contact us

Brand	Shimge
Power (kW)	18.5
Maximum Ambient Temperature (°C)	40
Maximum immersion depth (m)	70
Voltage (V)	380
Maximum Flow Rate (L/min)	300
Maximum Flow Rate (m3/h)	18
Maximum Delivery Head (m)	445
