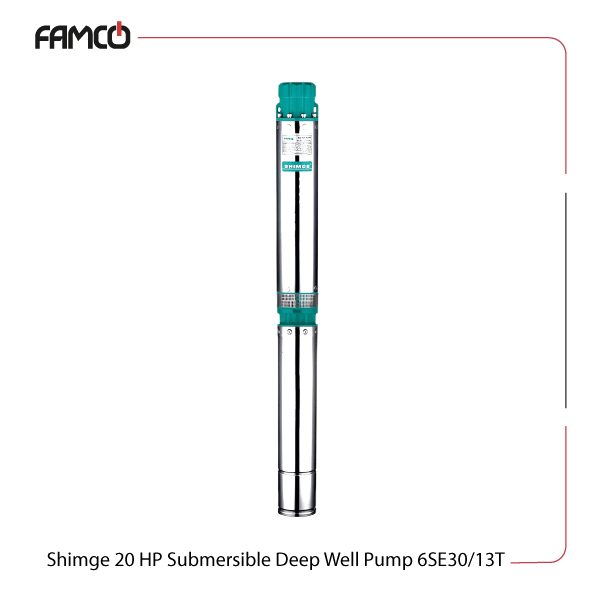

Shimge 20 HP Submersible Deep Well Pump 6SE30/13T Specifications
This product features a powerful 15 kW (20 HP) motor designed for demanding applications. It operates efficiently in environments with ambient temperatures below 40°C. As is important in submersible pumps, it handles water with sand content of up to 0.01%, hydrogen sulfide levels of up to 1.5 mg/L, and chloride ion concentrations of up to 400 mg/L. It functions optimally within a pH range of 6.5 to 8.5. The maximum immersion depth it tolerates is 70 meters. All it requires is a three-phase power supply of 380V. The pump can deliver a maximum flow rate of 667 liters per minute, equivalent to 40 cubic meters per hour. Its maximum delivery head ranges from 87 to 195 meters, which provides strong pressure for various pumping needs.
| Specification | Value |
| Power (kW) | 15 |
| Power (HP) | 20 |
| Max. ambient temperature (℃) | < 40 |
| Sand content | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Three-phase voltage (V) | 380 |
| Max. flow rate (l/min) | 667 |
| Max. flow rate (m3/h) | 40 |
| Max. delivery head (m) | 87-195 |

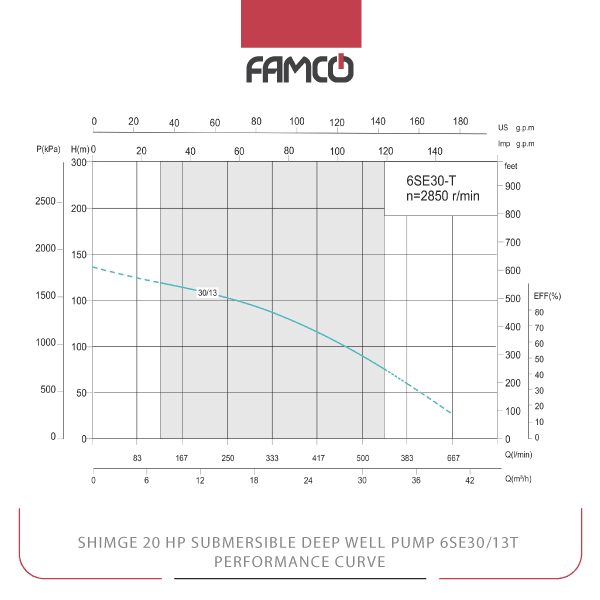

Shimge 20 HP Submersible Deep Well Pump 6SE30/13T Performance Data
| M3/h | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 |
| l/min | 0 | 83 | 167 | 250 | 333 | 417 | 500 | 583 | 667 |
| Head (m) | 186 | 174 | 164 | 153 | 137 | 116 | 90 | 60 | 27 |
Shimge 20 HP Submersible Deep Well Pump 6SE30/13T Applications
- Water supply systems
- Irrigation projects
- Industrial water transfer
- Deep well pumping
Shimge 20 HP Submersible Deep Well Pump 6SE30/13T Benefits
- High power output for demanding tasks
- Capable of handling contaminated water
- Deep immersion capability up to 70 meters
- Efficient flow rate and pressure range
Shimge 20 HP Submersible Deep Well Pump 6SE30/13T Price List
| No. | Name | Price |
| 1 | Shimge 20 HP Submersible Deep Well Pump 6SE30/13T Price | Contact us |
