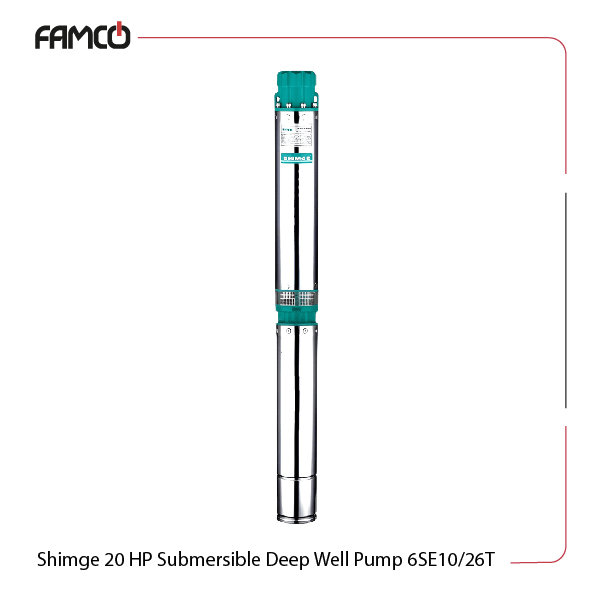

Shimge 20 HP Submersible Deep Well Pump 6SE10/26T Specifications
This powerful pump operates at 15 kW (20 HP) and is designed for demanding applications. It can handle environments with temperatures below 40°C and is suitable for water with minimal sand content up to 0.01%. This submersible pump can manage water containing hydrogen sulfide up to 1.5 mg/L and chloride ions up to 400 mg/L. It works efficiently within a pH range of 6.5 to 8.5. The device can be submerged up to 70 meters deep and requires a three-phase power supply of 380V. It offers users a maximum flow rate of 300 liters per minute, equivalent to 18 cubic meters per hour, and can deliver water with a head height of up to 338 meters. Overall, this pump combines power, durability, and flexibility, making it a top choice for demanding water management needs.
| Specification | Value |
| Power (kW) | 15 |
| Power (HP) | 20 |
| Max. ambient temperature (℃) | < 40 |
| Sand content | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Three-phase voltage (V) | 380 |
| Max. flow rate (l/min) | 300 |
| Max. flow rate (m3/h) | 18 |
| Max. delivery head (m) | 161≈338 |

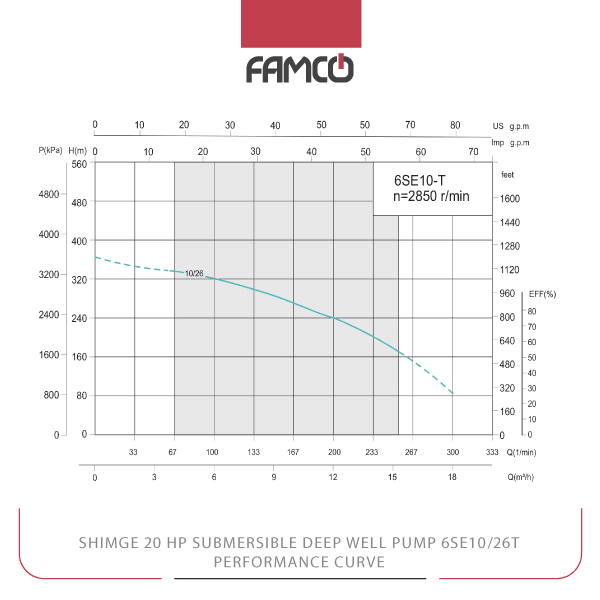

Shimge 20 HP Submersible Deep Well Pump 6SE10/26T Performance Data
| M3/h | 0 | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 |
| l/min | 0 | 33 | 67 | 100 | 133 | 167 | 200 | 233 | 267 | 300 |
| Head (m) | 364 | 346 | 335 | 320 | 298 | 265 | 239 | 200 | 150 | 64 |
Shimge 20 HP Submersible Deep Well Pump 6SE10/26T Applications
- Industrial water transfer
- Municipal water supply systems
- Agricultural irrigation projects
- Water treatment facilities
Shimge 20 HP Submersible Deep Well Pump 6SE10/26T Benefits
- High power output for demanding tasks
- Suitable for deep immersion up to 70 meters
- Handles water with specific chemical contents
- Efficient flow rate and high delivery head
Shimge 20 HP Submersible Deep Well Pump 6SE10/26T Price List
| No. | Name | Price |
| 1 | Shimge 20 HP Submersible Deep Well Pump 6SE10/26T Price | Contact us |
