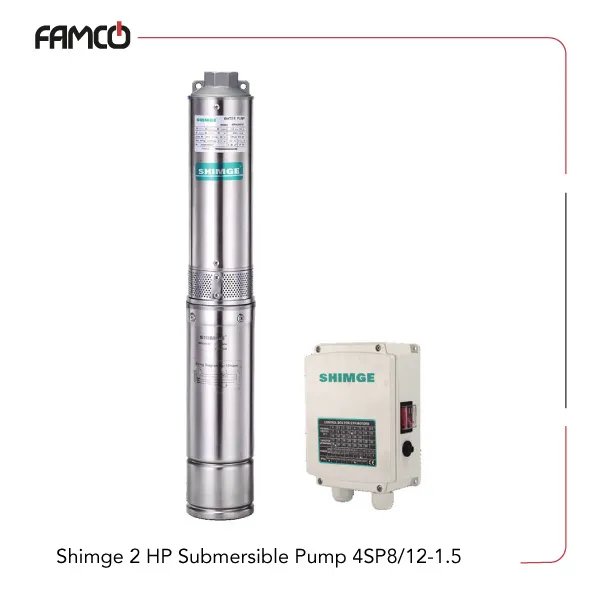

Shimge 2 HP Submersible Pump 4SP8/12-1.5 Specifications
This product operates efficiently in environments with a maximum ambient temperature of less than 40°C. It can handle sand content up to 100 grams per cubic meter and hydrogen sulfide levels up to 1.5 milligrams per liter. The chloride ion concentration should not exceed 400 milligrams per liter, and it functions well within a pH range of 6.5 to 8.5. The device can be submerged up to 70 meters deep, making it suitable for deep well applications. It supports both single-phase voltage of 220 volts and three-phase voltage of 380 volts, allowing flexible installation options. Designed for installation in 4-inch boreholes, the 4SP8/12-1.5 Shimge submersible pump consumes 1.5 kilowatts of power, equivalent to 2 horsepower. The maximum flow rate it can achieve is 180 liters per minute, with a head range from 32 to 70 meters, and a maximum head of 77 meters. These specifications make it ideal for various water pumping needs, especially in challenging environments with specific chemical and temperature conditions.
| Specification | Value |
| Max. ambient temperature | < 40°C |
| Maximum sand content | 100g/m³ |
| Maximum Hydrogen sulfide content | up to 1.5mg/L |
| Maximum chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Single-phase voltage (V) | 220 |
| Three-phase voltage (V) | 380 |
| Installation | in 4-inch boreholes |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Max. flow rate (l/min) | 180 |
| Head range (m) | 70-32 |
| Max. head (m) | 77 |

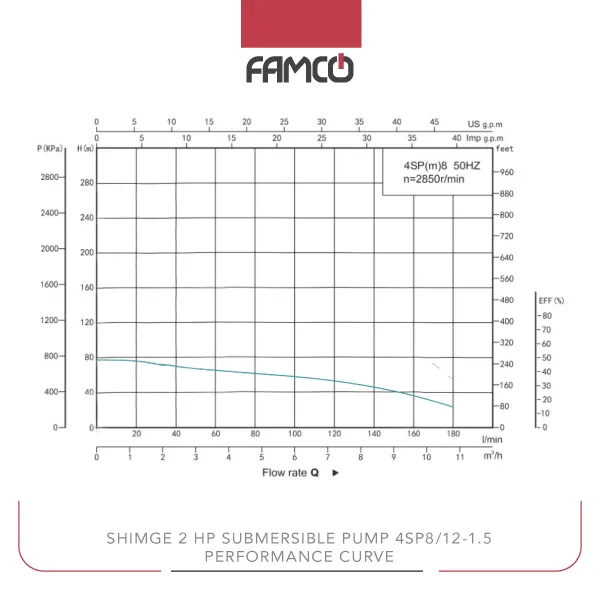

Shimge 2 HP Submersible Pump 4SP8/12-1.5 Performance Data
| m³/h | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | 9.6 | 10.8 |
| l/min | 0 | 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 |
| head (m) | 77 | 76 | 70 | 65 | 61 | 58 | 53 | 46 | 36 | 23 |
Shimge 2 HP Submersible Pump 4SP8/12-1.5 Applications
- Deep well water extraction
- Irrigation systems
- Industrial water supply
- Municipal water treatment
Shimge 2 HP Submersible Pump 4SP8/12-1.5 Benefits
- Supports deep water extraction up to 70 meters
- Flexible power options for various setups
- Handles water with specific chemical contents
- High flow rate for efficient water transfer
Shimge 2 HP Submersible Pump 4SP8/12-1.5 Price List
| No. | Name | Price |
| 1 | Shimge 2 HP Submersible Pump 4SP8/12-1.5 Price | Contact us |
