Shimge 2 HP Submersible Pump 4SP6/14-1.5

1.5 kW (2 HP)

Single-phase or three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Shimge Pumps, Shimge Submersible Pumps

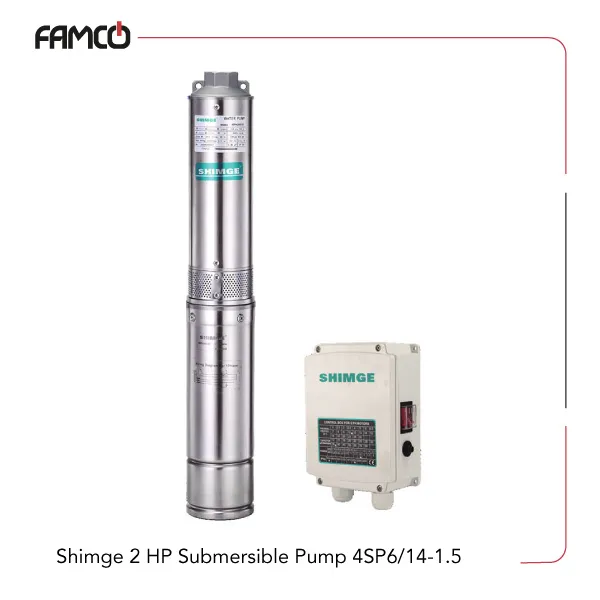

Overview of Shimge 2 HP Submersible Pump 4SP6/14-1.5

The 4SP6/14-1.5 pumps liquids at rates of up to 70 l/min with heads of about 100 meters max. You may use this unit in different environments, handling water with specific chemical and physical properties. Thanks to its construction, it operates efficiently at depths up to 70 meters. The pump is versatile, compatible with both single-phase and three-phase power supplies, and offers a good flow rate for residential or small commercial use. Its high head capacity makes it ideal for water supply systems, irrigation, and other water transfer needs. Easy to install in standard boreholes, it provides a durable and efficient solution for water pumping tasks. This Shimge pump model is available in two models:

Shimge 2 HP Submersible Pump 4SPm6/14-1.5 (single-phase)

Shimge 2 HP Submersible Pump 4SP6/14-1.5 (three-phase)

Shimge 2 HP Submersible Pump 4SP6/14-1.5 Specifications

The 4SP6/14-1.5 Shimge pump is designed to operate efficiently under various environmental conditions. It can withstand ambient temperatures below 40°C and handle water with sand content up to 100 grams per cubic meter. The device is suitable for water with hydrogen sulfide levels up to 1.5 milligrams per liter and chloride ions up to 400 milligrams per liter, making it ideal for diverse water sources. It functions within a pH range of 6.5 to 8.5, ensuring compatibility with most water types. The equipment from the 4SP6 Shimge submersible pump series can be installed at depths up to 70 meters in 4-inch boreholes. It supports both single-phase (220V) and three-phase (380V) power supplies, with a power consumption of 1.5 kilowatts or 2 horsepower. The maximum flow rate is 70 liters per minute, with a head range from 93 to 40 meters, and a maximum head of 103 meters, making it suitable for various water lifting applications.

Specification	Value
Max. ambient temperature	< 40°C
Maximum sand content	100g/m³
Maximum Hydrogen sulfide content	up to 1.5mg/L
Maximum chloride ion content	up to 400mg/L
pH	6.5 to 8.5
Max. immersion depth (m)	70
single-phase voltage (V)	220
three-phase voltage (V)	380
installation	in 4-inch boreholes
power (kW)	1.5
power (HP)	2
Max. flow rate (l/min)	70
head range (m)	93-40
max. head (m)	103

Shimge 2 HP Submersible Pump 4SP6/14-1.5 Performance Data

m³/h	0	1.2	2.4	3.6	4.8	6	7.2	8.4	head range (m)
l/min	0	10	20	30	40	50	60	70	head range (m)
head (m)	103	95	93	85	76	66	52	30	93-40

Shimge 2 HP Submersible Pump 4SP6/14-1.5 Applications

Water supply for residential buildings
Irrigation systems in agriculture
Industrial water transfer
Deep well water extraction

Shimge 2 HP Submersible Pump 4SP6/14-1.5 Benefits

High efficiency at various depths
Suitable for different water qualities
Flexible power options
Durable and easy to install

Shimge 2 HP Submersible Pump 4SP6/14-1.5 Price List

No.	Name	Price
1	Shimge 2 HP Submersible Pump 4SP6/14-1.5 Price	Contact us

Brand	Shimge
Applications	Boosting Water Pressure in Plumbing Systems, Deep well water extraction, Water Supply Connections
Power (kW)	1.5
Power (HP)	2
Maximum Flow Rate (L/min)	70
Maximum Delivery Head (m)	103
