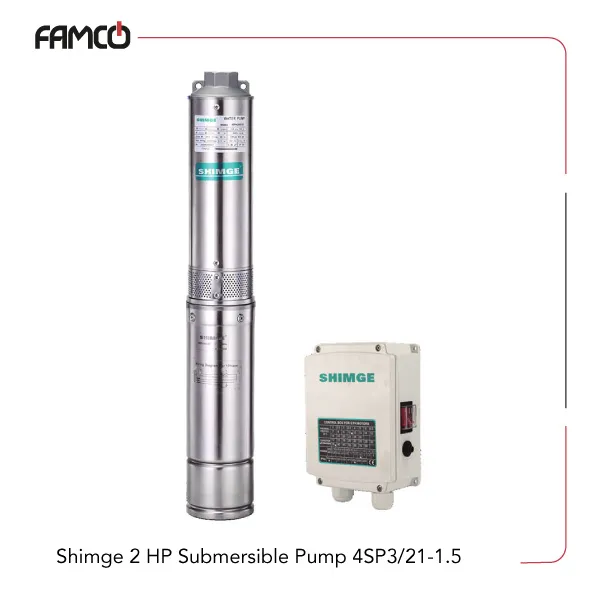

Shimge 2 HP Submersible Pump 4SP3/21-1.5 Specifications
This product is designed to operate efficiently under various environmental conditions. It can withstand ambient temperatures below 40°C and is suitable for installation in boreholes with a diameter of 4 inches. The Shimge submersible pump handles water with sand content up to 100 grams per cubic meter, and can manage water containing hydrogen sulfide levels up to 1.5 milligrams per liter. It also tolerates chloride ion concentrations up to 400 milligrams per liter, making it suitable for diverse water sources. The pH range for optimal operation is between 6.5 and 8.5, ensuring compatibility with most natural and treated waters. The maximum immersion depth is 70 meters, allowing for deep well applications. It operates on a single-phase voltage of 220V or a three-phase voltage of 380V, providing flexibility for different power setups. The device consumes 1.5 kilowatts (or 2 horsepower) and can deliver a maximum flow rate of 80 liters per minute. Its head range varies from 85 to 150 meters, with a maximum head capacity of 155 meters, making it suitable for high-lift applications in water supply systems.
| Specification | Value |
| Max. ambient temperature | < 40°C |
| Maximum sand content | 100g/m³ |
| Maximum Hydrogen sulfide content | up to 1.5mg/L |
| Maximum chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| single-phase voltage (V) | 220 |
| three-phase voltage (V) | 380 |
| installation | in 4-inch boreholes |
| power (kW) | 1.5 |
| power (HP) | 2 |
| Max. flow rate (l/min) | 80 |
| head range (m) | 150-85 |
| max. head (m) | 155 |

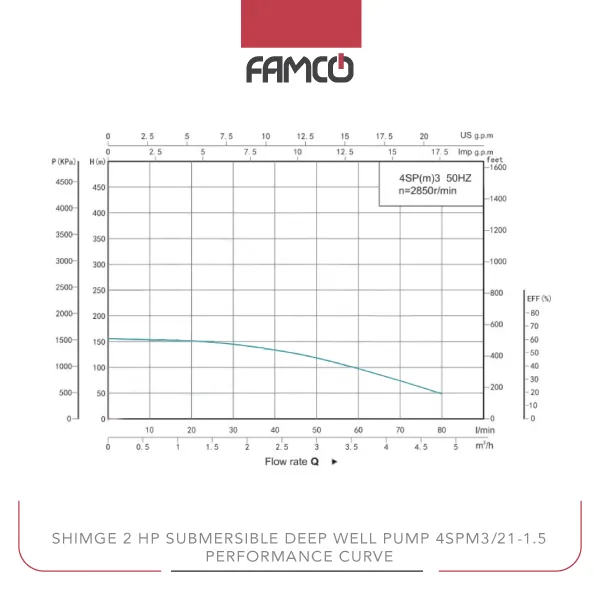

Shimge 2 HP Submersible Pump 4SP3/21-1.5 Performance Data
| m³/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.8 |
| l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
| head (m) | 155 | 153 | 150 | 144 | 133 | 117 | 96 | 73 | 48 |
Shimge 2 HP Submersible Pump 4SP3/21-1.5 Applications
- Deep well water extraction for residential use
- Irrigation systems in agriculture
- Industrial water supply systems
- Municipal water treatment plants
Shimge 2 HP Submersible Pump 4SP3/21-1.5 Benefits
- Handles high flow rates up to 80 l/min
- Suitable for deep immersion up to 70 meters
- Operates efficiently within a wide pH range of 6.5 to 8.5
- Robust design tolerates sand and chemical content
Shimge 2 HP Submersible Pump 4SP3/21-1.5 Price List
| No. | Name | Price |
| 1 | Shimge 2 HP Submersible Pump 4SP3/21-1.5 Price | Contact us |
