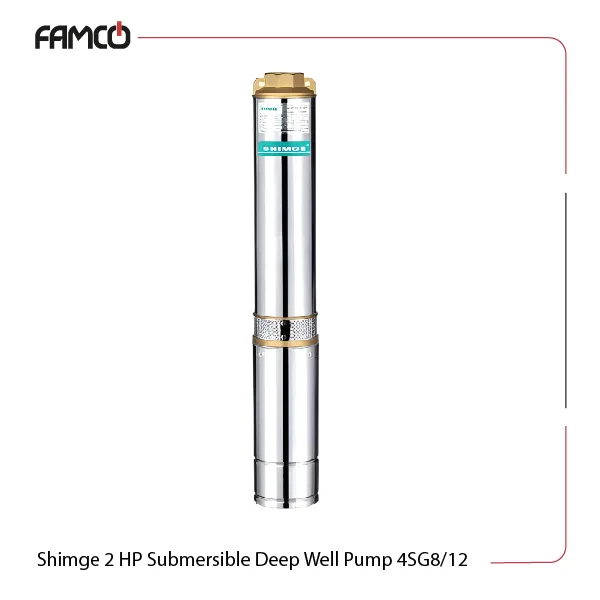

Shimge 2 HP Submersible Deep Well Pump 4SG8/12

1.5 kW (2 HP)

Single- or three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Shimge Pumps, Shimge Submersible Pumps

Overview of Shimge 2 HP Submersible Deep Well Pump 4SG8/12

The 4SG8/12 is a pump that operates at depths up to 70 meters, serving applications in deep well pumping, irrigation, and municipal water systems. This water pump offers a powerful 1.5 kW (2 HP) motor that facilitates water transfer at flow rates up to 180 l/min. It is suitable for use in environments with moderate temperatures and can handle water with minimal 0.01% sand, 1.5 mg/L hydrogen sulfide, and 400 mg/L chloride content. Its compatibility with both single-phase and three-phase power supplies provides flexibility for different installation settings. With a high flow rate and adjustable 23 to 77 meter head, this pump is perfect for demanding water transfer tasks, ensuring reliable performance and long-lasting durability. This model is provided in both single- or three-phase versions.

Shimge 2 HP Submersible Deep Well Pump 4SGm8/12 (single-phase)

Shimge 2 HP Submersible Deep Well Pump 4SG8/12 (three-phase)

Shimge 2 HP Submersible Deep Well Pump 4SG8/12 Specifications

This product features a power output of 1.5 kW (2 HP). Ambient temperatures below 40°C are best suited for this deep well pump. This Shimge pump can handle water with sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ion concentrations up to 400 mg/L. It is designed to work within a pH range of 6.5 to 8.5, which enables compatibility with waters of various qualities. The maximum immersion depth is 70 meters, so you could integrate this submersible pump into tasks with varying immersion requirements. It supports both single-phase (220V) and three-phase (380V) power supplies, a flexible choice for different setups. The pump can deliver a maximum flow rate of 180 liters per minute, equivalent to 10.8 cubic meters per hour, with a maximum delivery head ranging from 23 to 77 meters. These specifications make it a reliable choice for various industrial, agricultural, and municipal water transfer tasks, combining power, durability, and efficiency in one compact unit.

Specification	Value
Power (kW)	1.5
Power (HP)	2
Max. ambient temperature (℃)	< 40
Sand content	up to 0.01%
Hydrogen sulfide content	up to 1.5mg/L
Chloride ion content	up to 400mg/L
pH	6.5 to 8.5
Max. immersion depth (m)	70
Single-phase voltage (V)	220
Three-phase voltage (V)	380
Max. flow rate (l/min)	180
Max. flow rate (m3/h)	10.8
Max. delivery head (m)	23-77

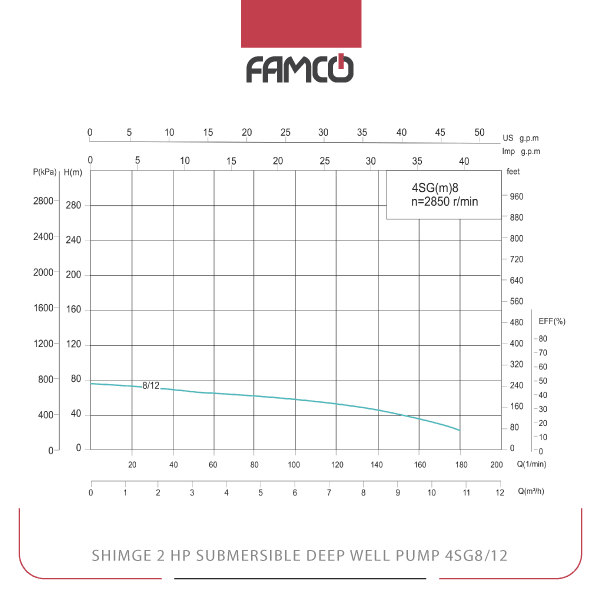

Shimge 2 HP Submersible Deep Well Pump 4SG8/12 Performance Data

M3/h	0	1.2	2.4	3.6	4.8	6	7.2	8.4	9.6	10.8
l/min	0	20	40	60	80	100	120	140	160	180
Head (m)	77	76	70	65	61	58	53	46	36	23

Shimge 2 HP Submersible Deep Well Pump 4SG8/12 Applications

Deep well water extraction
Irrigation systems for agriculture
Municipal water supply projects
Industrial water transfer

Shimge 2 HP Submersible Deep Well Pump 4SG8/12 Benefits

High efficiency with 1.5 kW power output
Suitable for deep water applications up to 70 meters
Flexible power options with single and three-phase support
Handles water with minimal sand and chemical content

Shimge 2 HP Submersible Deep Well Pump 4SG8/12 Price List

No.	Name	Price
1	Shimge 2 HP Submersible Deep Well Pump 4SG8/12 Price	Contact us

Brand	Shimge
Power (kW)	1.5
Power (HP)	2
Maximum Ambient Temperature (°C)	40
Maximum immersion depth (m)	70
Voltage (V)	220, 380
Maximum Flow Rate (m3/h)	10.8
Maximum Delivery Head (m)	77
