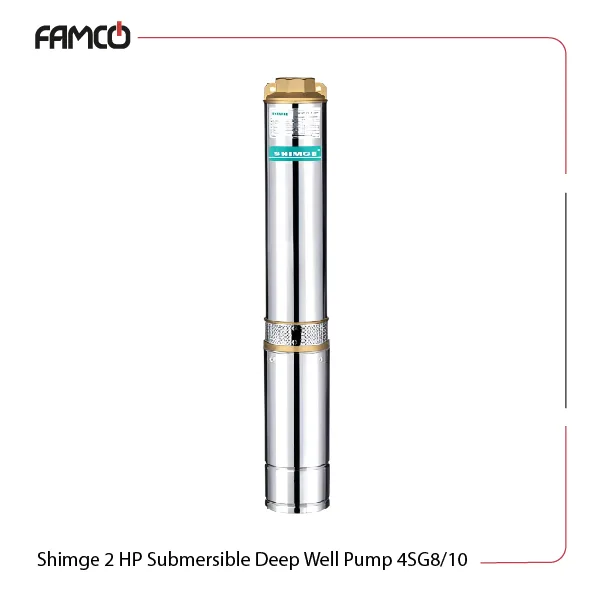

Shimge 2 HP Submersible Deep Well Pump 4SG8/10

1.5 kW (2 HP)

Single- or three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Shimge Pumps, Shimge Submersible Pumps

Overview of Shimge 2 HP Submersible Deep Well Pump 4SG8/10

This versatile water pump is designed for efficient water transfer in multiple settings. With a power of 1.5 kW, it provides strong performance for deep and high-volume water pumping. Its ability to operate in environments with specific water qualities, including low sand and hydrogen sulfide content, makes it suitable for well, borehole, and industrial applications. The pump supports both single-phase and three-phase power, offering flexibility for different power sources. Its maximum immersion depth of 70 meters allows it to be used in deep wells or reservoirs. The flow rate and head range make it ideal for irrigation, water supply, and industrial processes. Built for durability and efficiency, this pump ensures reliable operation even under challenging conditions, making it a popular choice for professionals and homeowners alike. This model is provided in both single- or three-phase versions.

Shimge 2 HP Submersible Deep Well Pump 4SG8/10 (single-phase)

Shimge 2 HP Submersible Deep Well Pump 4SGm8/10 (three-phase)

Shimge 2 HP Submersible Deep Well Pump 4SG8/10 Specifications

This product features a power of 1.5 kW (2 HP), suitable for various water pumping needs. It operates efficiently in environments with ambient temperatures below 40°C. The pump can handle water with sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ions up to 400 mg/L. It functions within a pH range of 6.5 to 8.5, ensuring compatibility with different water qualities. The maximum immersion depth is 70 meters to make the4SG8/10 a top-choice among submersible pumps. It supports both single-phase (220V) and three-phase (380V) power supplies, providing flexibility for different setups. The pump can deliver a maximum flow rate of 180 liters per minute, equivalent to 10.8 cubic meters per hour, with a maximum delivery head ranging from 19 to 64 meters. This makes it suitable for various industrial, agricultural, and domestic water transfer tasks, offering reliable performance across different conditions.

Specification	Value
Power (kW)	1.5
Power (HP)	2
Max. ambient temperature (℃)	< 40
Sand content	up to 0.01%
Hydrogen sulfide content	up to 1.5mg/L
Chloride ion content	up to 400mg/L
pH	6.5 to 8.5
Max. immersion depth (m)	70
Single-phase voltage (V)	220
Three-phase voltage (V)	380
Max. flow rate (l/min)	180
Max. flow rate (m3/h)	10.8
Max. delivery head (m)	19-64

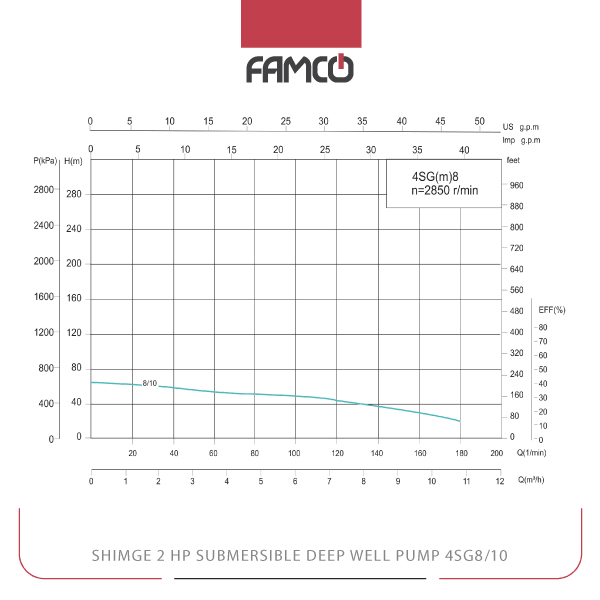

Shimge 2 HP Submersible Deep Well Pump 4SG8/10 Performance Data

M3/h	0	1.2	2.4	3.6	4.8	6	7.2	8.4	9.6	10.8
l/min	0	20	40	60	80	100	120	140	160	180
Head (m)	64	63	58	54	51	48	44	38	30	19

Shimge 2 HP Submersible Deep Well Pump 4SG8/10 Applications

Deep well water extraction
Irrigation systems for agriculture
Industrial water transfer
Domestic water supply systems

Shimge 2 HP Submersible Deep Well Pump 4SG8/10 Benefits

High efficiency with 1.5 kW power
Supports deep water applications up to 70 meters
Flexible power options with single and three-phase support
Handles water with specific qualities, including low sand and sulfide levels

Shimge 2 HP Submersible Deep Well Pump 4SG8/10 Price List

No.	Name	Price
1	Shimge 2 HP Submersible Deep Well Pump 4SG8/10 Price	Contact us

Brand	Shimge
Power (kW)	1.5
Power (HP)	2
Maximum Ambient Temperature (°C)	40
Maximum immersion depth (m)	70
Voltage (V)	220, 380
Maximum Flow Rate (L/min)	180
Maximum Flow Rate (m3/h)	380
Maximum Delivery Head (m)	64
