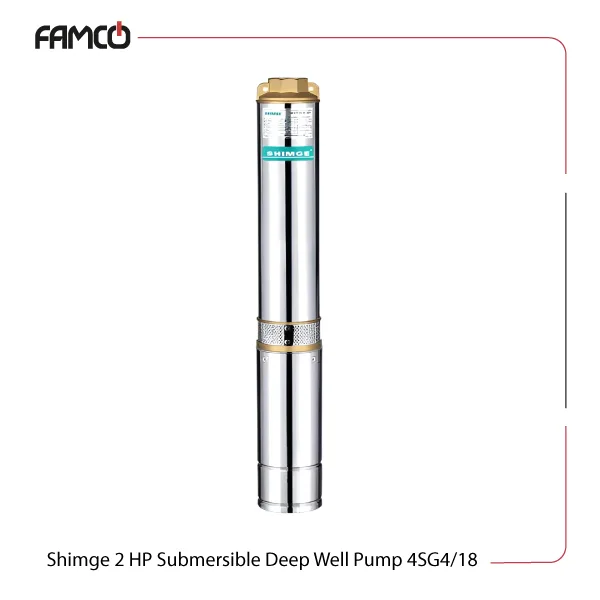

Shimge 2 HP Submersible Deep Well Pump 4SG4/18

1.5 kW (2 HP)

Single-or three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Shimge 2 HP Submersible Deep Well Pump 4SG4/18

In this Shimge pump, an advanced 1.5 kW motor is the reason behind immersion depths up to 70 meters. The 4SG4/18 is compatible with water containing small amounts of sand, hydrogen sulfide, and chloride. The pump operates smoothly at 38V and 220 voltages and can handle flow rates up to 100 liters per minute. Its adjustable 29 to 133 meter delivery head allows for flexible installation and use. Suitable for boreholes of 4 inches, it is perfect for residential water supply, irrigation, and industrial processes. Its consistent performance persists in various environmental conditions, especially in areas with moderate temperatures below 40°C. This model is provided in both single- or three-phase versions.

Shimge 2 HP Submersible Deep Well Pump 4SGm4/18 (single-phase)

Shimge 2 HP Submersible Deep Well Pump 4SG4/18 (three-phase)

Related Products

Shimge 2 HP Submersible Deep Well Pump 4SG4/18 Specifications

This Shimge-engineered pump has a power of 1.5 kW (2 HP). To keep operations smooth, it should function in ambient temperatures below 40°C. The pump can handle water impurities to an extent. The amount of sand found in the water must stay under 0.01%, while hydrogen sulfide levels up to 1.5 mg/L are tolerated. To further enhance its performance, chloride ions up to 400 mg/L are permitted, as well. It works with different water qualities within a pH range of 6.5 to 8.5. The maximum immersion depth is 70 meters when placed in boreholes of 4 inches or larger. These Shimge submersible pumps run on a single-phase voltage of 220V and a three-phase voltage of 380V. The maximum flow rates achieved are 100 liters per minute or 6 cubic meters per hour. The pump can deliver water with a head ranging from 29 to 133 meters, helpful in water lifting tasks.

Shimge 2 HP Submersible Deep Well Pump 4SG4/18

Specification Value
Power (kW) 1.5
Power (HP) 2
Max. ambient temperature (℃) < 40
Sand content up to 0.01%
Hydrogen sulfide content up to 1.5mg/L
Chloride ion content up to 400mg/L
pH 6.5 to 8.5
Max. immersion depth (m) 70
Single-phase voltage (V) 220
Max. flow rate (l/min) 100
Max. flow rate (m3/h) 6
Max. delivery head (m) 29-133
Placement in 4 inch boreholes

Shimge 2 HP Submersible Deep Well Pump 4SG4/18 Performance Data

M3/h 0 0.6 1.2 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6
l/min 0 10 20 30 40 50 60 70 80 90 100
Head (m) 133 127 124 120 115 107 97 84 68 51 29

Shimge 2 HP Submersible Deep Well Pump 4SG4/18 Performance Curve

Shimge 2 HP Submersible Deep Well Pump 4SG4/18 Applications

  • Residential water supply from deep wells
  • Agricultural irrigation systems
  • Industrial water pumping
  • Municipal water distribution



Shimge 2 HP Submersible Deep Well Pump 4SG4/18 Benefits

  • High efficiency with a 1.5 kW motor
  • Suitable for deep boreholes up to 70 meters
  • Handles water with minor impurities like sand and hydrogen sulfide
  • Flexible installation with adjustable head and flow rates



Shimge 2 HP Submersible Deep Well Pump 4SG4/18 Price List

No. Name Price
1 Shimge 2 HP Submersible Deep Well Pump 4SG4/18 Price Contact us
Brand

Power (kW)

Power (HP)

Maximum Ambient Temperature (°C)

Maximum immersion depth (m)

Voltage (V)

,

Maximum Flow Rate (L/min)

Maximum Delivery Head (m)
