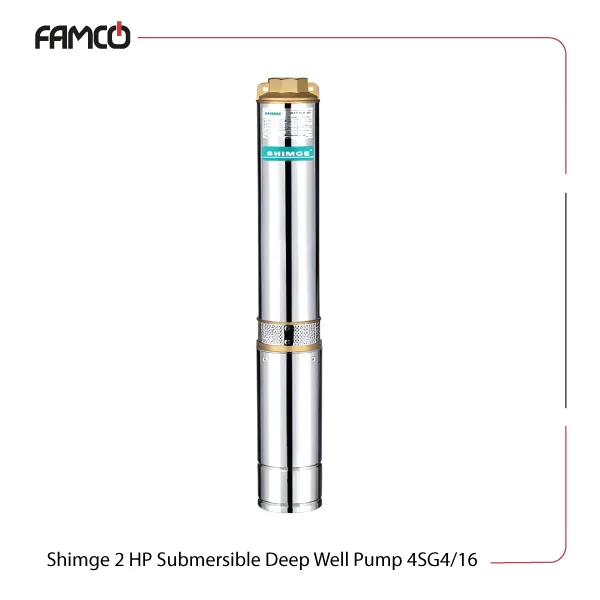

Shimge 2 HP Submersible Deep Well Pump 4SG4/16

1.1 kW (1.5 HP)

Single-or three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Shimge 2 HP Submersible Deep Well Pump 4SG4/16

Prioritizing performance has resulted in the 2 HP Shimge 4SG4/16. It provides strong water flow and a 26 to 118-meter head height for residential, agricultural, and industrial use. The pump’s compatibility with standard 4-inch boreholes has made installation easier than ever. It is suitable for environments with temperatures under 40℃ and can handle significant water flow. Minimal maintenance and contaminants tolerance helps ensure peace of mind for long-term use. This model is provided in both single- or three-phase versions.

Shimge 2 HP Submersible Deep Well Pump 4SGm4/16 (single-phase)

Shimge 2 HP Submersible Deep Well Pump 4SG4/16 (three-phase)

Related Products

Shimge 2 HP Submersible Deep Well Pump 4SG4/16 Specifications

This product features a power of 1.5 kW (2 HP), suitable for various water pumping needs. Using this submersible pump, users are investing in their peace of mind. Working best in ambient temperatures below 40°C, it has some contaminants tolerance, as well. This Shimge pump handles water with sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ions up to 400 mg/L. It functions within a pH range of 6.5 to 8.5, which provide compatibility with different water qualities. The maximum immersion depth is 70 meters, so this pumping solution remains accountable for deep well applications. It runs on single and three-phase voltages and provides a maximum flow rate of 100 liters per minute or 6 cubic meters per hour. The pump can deliver water at a head height ranging from 26 to 118 meters. Designed for installation in 4-inch boreholes, it is most suitable for various water supply and irrigation projects.

Shimge 2 HP Submersible Deep Well Pump 4SG4/16

Specification Value
Power (kW) 1.5
Power (HP) 2
Max. ambient temperature (℃) < 40
Sand content up to 0.01%
Hydrogen sulfide content up to 1.5mg/L
Chloride ion content up to 400mg/L
pH 6.5 to 8.5
Max. immersion depth (m) 70
Single-phase voltage (V) 220
Max. flow rate (l/min) 100
Max. flow rate (m3/h) 6
Max. delivery head (m) 26-118
Placement in 4-inch boreholes

Shimge 2 HP Submersible Deep Well Pump 4SG4/16 Performance Data

M3/h 0 0.6 1.2 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6
l/min 0 10 20 30 40 50 60 70 80 90 100
Head (m) 118 113 110 107 102 95 86 75 60 45 26

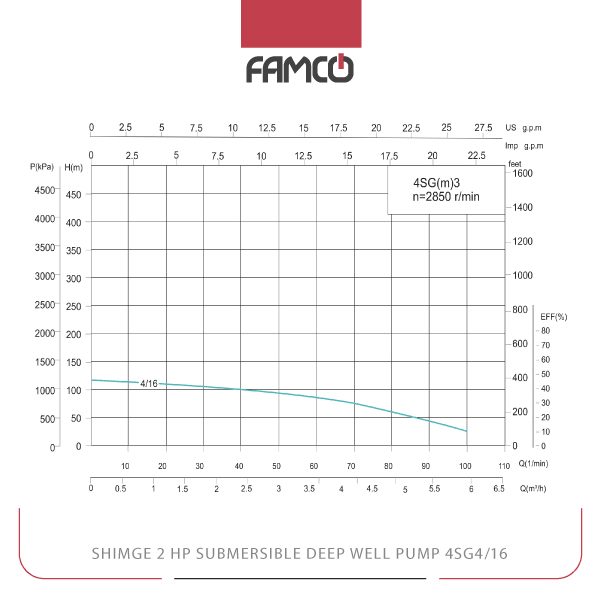

Shimge 2 HP Submersible Deep Well Pump 4SG4/16 Performance Curve

Shimge 2 HP Submersible Deep Well Pump 4SG4/16 Applications

  • Deep well water extraction
  • Irrigation systems for agriculture
  • Residential water supply
  • Industrial water pumping



Shimge 2 HP Submersible Deep Well Pump 4SG4/16 Benefits

  • High efficiency with 1.5 kW power
  • Suitable for deep boreholes up to 70 meters
  • Handles water with minimal sand and low contaminants
  • Reliable performance in various water qualities



Shimge 2 HP Submersible Deep Well Pump 4SG4/16 Price List

No. Name Price
1 Shimge 2 HP Submersible Deep Well Pump 4SG4/16 Price Contact us
Brand

Power (kW)

Power (HP)

Maximum Ambient Temperature (°C)

Maximum immersion depth (m)

Voltage (V)

,

Maximum Flow Rate (m3/h)

Maximum Delivery Head (m)
