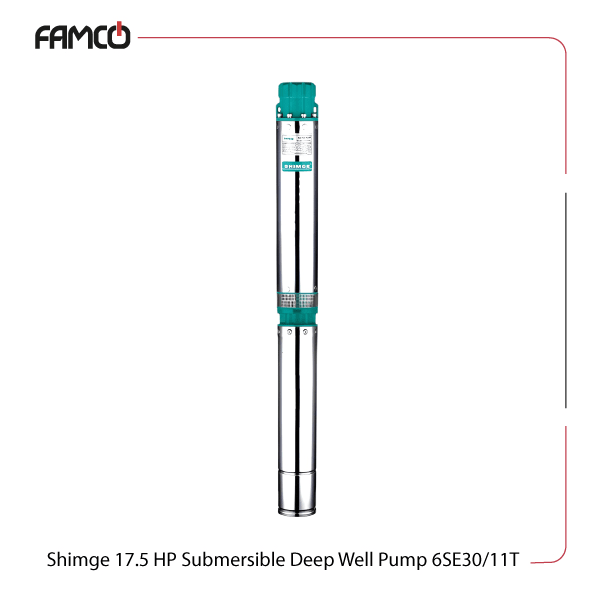

Shimge 17.5 HP Submersible Deep Well Pump 6SE30/11T Specifications
This powerful pump operates at 13 kW (17.5 HP) and is designed for deep well applications. It can handle environments with temperatures below 40°C and is suitable for boreholes with a diameter of 6 inches. The pump can manage water with minimal sand content up to 0.01%, and it is resistant to water containing hydrogen sulfide up to 1.5 mg/L and chloride ions up to 400 mg/L. This submersible pump is functional within a pH range of 6.5 to 8.5 with consistent performance. It can be immersed up to 70 meters deep. The pump operates on a three-phase power supply of 380V, providing a maximum flow rate of 667 liters per minute or 40 cubic meters per hour. Its maximum delivery head ranges from 75 to 169 meters, so it gets to lift water over significant heights.
| Specification | Value |
| Power (kW) | 13 |
| Power (HP) | 17.5 |
| Max. ambient temperature (℃) | < 40 |
| Sand content | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Three-phase voltage (V) | 380 |
| Max. flow rate (l/min) | 667 |
| Max. flow rate (m3/h) | 40 |
| Max. delivery head (m) | 75-169 |

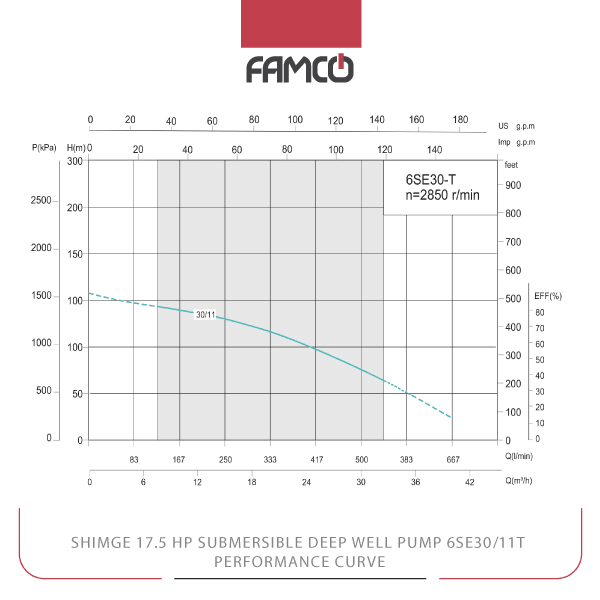

Shimge 17.5 HP Submersible Deep Well Pump 6SE30/11T Performance Data
| M3/h | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 |
| l/min | 0 | 83 | 167 | 250 | 333 | 417 | 500 | 583 | 667 |
| Head (m) | 157 | 147 | 139 | 129 | 116 | 98 | 76 | 51 | 23 |
Shimge 17.5 HP Submersible Deep Well Pump 6SE30/11T Applications
- Deep well water extraction for agriculture
- Municipal water supply systems
- Industrial water pumping
- Irrigation systems for large farms
Shimge 17.5 HP Submersible Deep Well Pump 6SE30/11T Benefits
- High flow rate for efficient water delivery
- Suitable for deep boreholes up to 70 meters
- Resistant to water with impurities like sand and hydrogen sulfide
- Reliable operation with a durable design
Shimge 17.5 HP Submersible Deep Well Pump 6SE30/11T Price List
| No. | Name | Price |
| 1 | Shimge 17.5 HP Submersible Deep Well Pump 6SE30/11T Price | Contact us |
