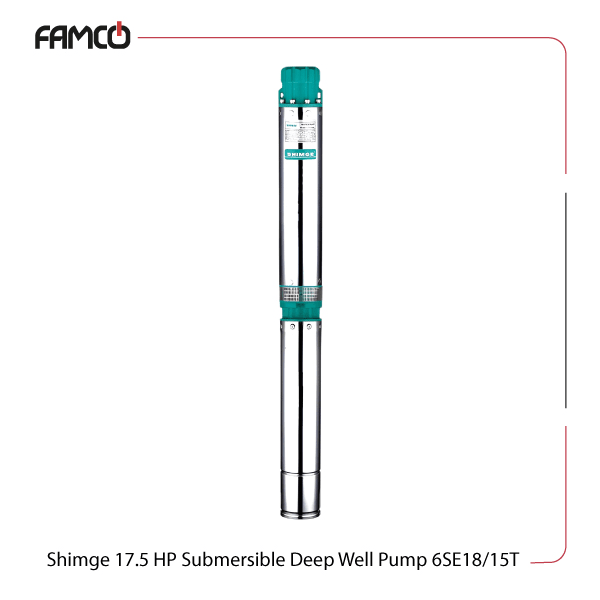

Shimge 17.5 HP Submersible Deep Well Pump 6SE18/15T

Shimge 17.5 HP Submersible Deep Well Pump 6SE18/15T Specifications

This Shimge pump operates with a power of 13 kW (17.5 HP) with strong water movement. Its installation requirements include ambient temperatures below 40°C and boreholes with a diameter of 6 inches. The pump can withstand 0.01% sand content, hydrogen sulfide levels up to 1.5 mg/L, and up to 400 mg/L chloride ion concentrations. This submersible pump functions effectively within a pH range of 6.5 to 8.5. The maximum immersion depth is set at 70 meters for deeper wells. It requires a three-phase power supply of 380V. The pump has a maximum flow rate of 450 liters per minute, equivalent to 27 cubic meters per hour, and can generate a delivery head ranging from 79 to 199 meters.

Specification	Value
Power (kW)	13
Power (HP)	17.5
Max. ambient temperature (℃)	< 40
Sand content	up to 0.01%
Hydrogen sulfide content	up to 1.5mg/L
Chloride ion content	up to 400mg/L
pH	6.5 to 8.5
Max. immersion depth (m)	70
Three-phase voltage (V)	380
Max. flow rate (l/min)	450
Max. flow rate (m3/h)	27
Max. delivery head (m)	79-199
Placement in	6-inch boreholes

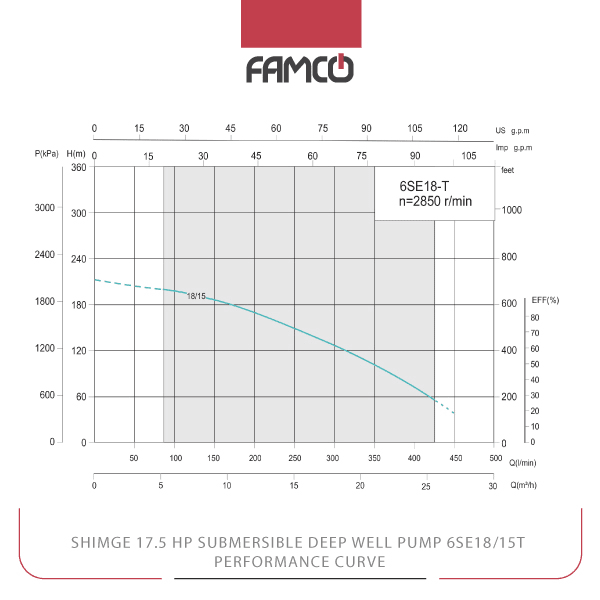

Shimge 17.5 HP Submersible Deep Well Pump 6SE18/15T Performance Data

M3/h	0	3	6	9	12	15	18	21	24	27
l/min	0	50	100	150	200	250	300	350	400	450
Head (m)	213	205	198	188	170	150	128	103	73	37

Shimge 17.5 HP Submersible Deep Well Pump 6SE18/15T Applications

• Deep well water extraction
• Municipal water supply systems
• Agricultural irrigation projects
• Industrial water transfer



Shimge 17.5 HP Submersible Deep Well Pump 6SE18/15T Benefits

• High flow rate for efficient water delivery
• Suitable for deep boreholes up to 70 meters
• Handles challenging water conditions with sand and chemicals
• Durable and reliable for long-term use



Shimge 17.5 HP Submersible Deep Well Pump 6SE18/15T Price List

No.	Name	Price
1	Shimge 17.5 HP Submersible Deep Well Pump 6SE18/15T Price	Contact us
