Shimge 17.5 HP Submersible Deep Well Pump 6SE10/22T Specifications
This model is powered by a 13 kW motor running at 2850 r/min, which offers a steady output of roughly 18 m³/h. The pump’s high head capacity (up to 290 meters) makes it ideal for deep wells or locations requiring significant vertical water lift. This series of Shimge pumps has a 300 l/min flow rate that suits applications where the movement of larger volume of liquids is at stake. The pump is designed to handle water temperatures up to 40°C and pH levels suitable for most groundwater conditions. Most liquids with 6.5 to 8.5 pH levels are a good-match for this Shimge pumping product.
Operating on a standard 380V three-phase supply makes it compatible with common industrial and agricultural power setups. This combination of power and precision makes the 6SE10/22T, under the category of submersible pumps, well-suited for demanding deep well water extraction tasks that rely on consistent pressure.
| Specification | Value |
| power (kW) | 13 |
| power (HP) | 17.5 |
| Max. ambient temperature (° C) | <40 |
| suitable pH range | 6.5-8.5 |
| max. immersion (m) | 70m below static water table |
| max. flow rate (l/min) | 300 |
| max. flow rate (m3/h) | 18 |
| Max. delivery head (m) | 137≈290 |
| Voltage (V) | 380 (Three-phase) |
| rotation speed (rpm) | 2850 |

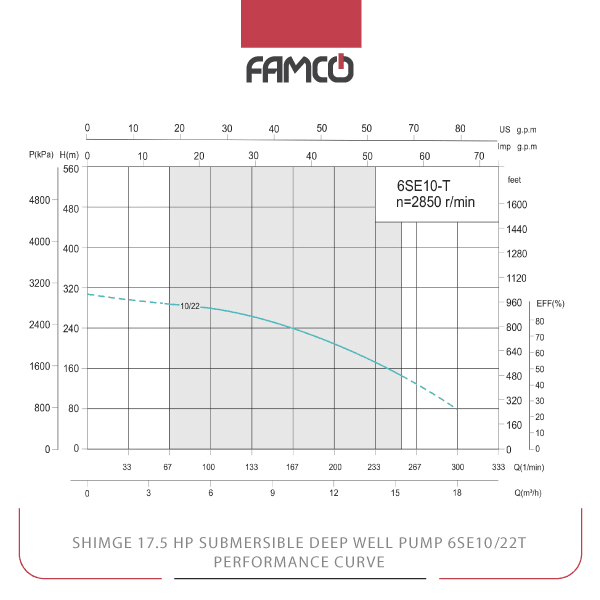

Shimge 17.5 HP Submersible Deep Well Pump 6SE10/22T Performance Data
| M3/h | 0 | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 |
| l/min | 0 | 33 | 67 | 100 | 133 | 167 | 200 | 233 | 267 | 300 |
| Head (m) | 308 | 293 | 284 | 197 | 252 | 224 | 202 | 169 | 127 | 54 |
Shimge 17.5 HP Submersible Deep Well Pump 6SE10/22T Applications
- Deep well pumping for industrial and municipal water supply
- High-pressure irrigation systems
- Water supply for tall buildings or elevated terrain
- Remote groundwater extraction projects
Shimge 17.5 HP Submersible Deep Well Pump 6SE10/22T Benefits
- High delivery head for deep and high-elevation wells
- Suitable for precise, lower flow rate applications
- Durable performance in standard three-phase power environments
- Handles typical groundwater pH and temperature ranges
Shimge 17.5 HP Submersible Deep Well Pump 6SE10/22T Price List
| No. | Name | Price |
| 1 | Shimge 17.5 HP Submersible Deep Well Pump 6SE10/22T Price | Contact us |
