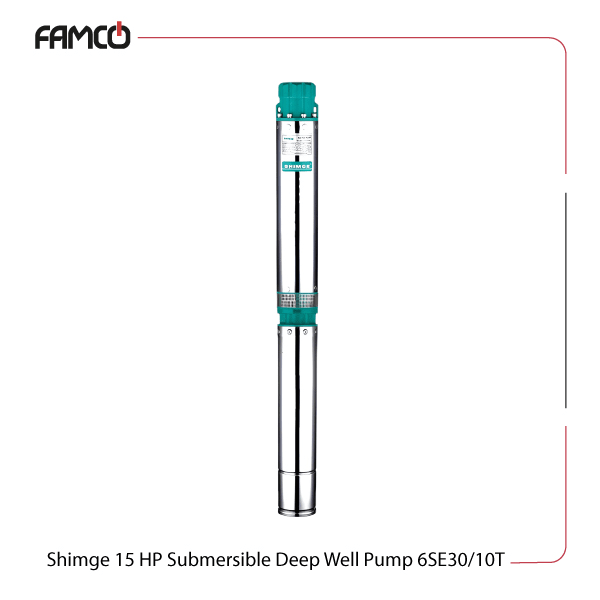

Shimge 15 HP Submersible Deep Well Pump 6SE30/10T

11 kW (15 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Shimge Pumps, Shimge Submersible Pumps

Overview of Shimge 15 HP Submersible Deep Well Pump 6SE30/10T

The 6SE30/10T three-phase Shimge pumping product helps manage water supplies. With an 11 kW motor, it offers more than satisfactory performance. Places with moderate temperatures under 40℃ can best benefit from this submersible pump. It even handles water with some impurities, such as sand and hydrogen sulfide. Its ability to operate at depths up to 70 meters makes it perfect for deep borehole installations. The pump’s flow rate reaches 667 l/min while its head ranges from 64 to 143 meters. Its 6-inch diameter measurement has made its placement a breeze. Overall, this pump combines power, durability, and adaptability for water extraction projects.

Shimge 15 HP Submersible Deep Well Pump 6SE30/10T Specifications

This product features a powerful 11 kW (15 HP) motor designed for efficient water pumping. You can implement this well pump where ambient temperatures are below 40°C. The pump’s operation is not limited to clean water only and can handle sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ions less than 400 mg/L. It functions within a pH range of 6.5 to 8.5, and with different water sources. The maximum immersion depth is 70 meters, so deeper wells remain in reach. This three-phase configured submersible pump requires a power supply of 380V. The pump can deliver a maximum flow rate of 667 liters per minute, equivalent to 40 cubic meters per hour, with a maximum delivery head ranging from 64 to 143 meters.

Specification	Value
Power (kW)	11
Power (HP)	15
Max. ambient temperature (℃)	< 40
Sand content	up to 0.01%
Hydrogen sulfide content	up to 1.5mg/L
Chloride ion content	up to 400mg/L
pH	6.5 to 8.5
Max. immersion depth (m)	70
Three-phase voltage (V)	380
Max. flow rate (l/min)	667
Max. flow rate (m3/h)	40
Max. delivery head (m)	64-143

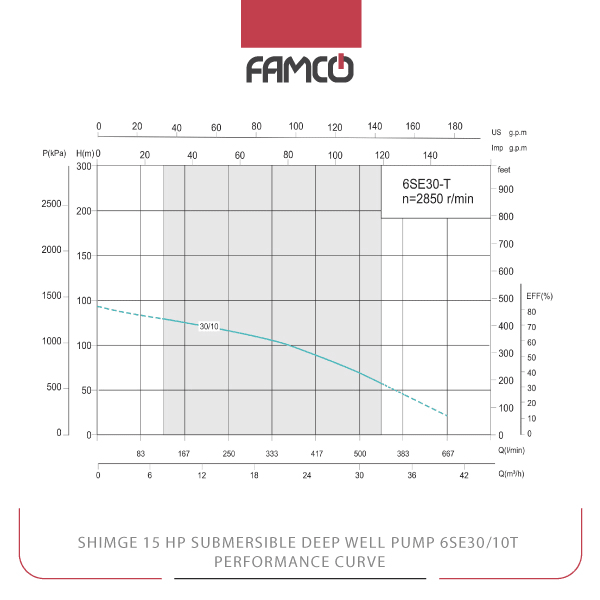

Shimge 15 HP Submersible Deep Well Pump 6SE30/10T Performance Data

M3/h	0	5	10	15	20	25	30	35	40
l/min	0	83	167	250	333	417	500	583	667
Head (m)	143	134	125	117	105	89	69	46	21

Shimge 15 HP Submersible Deep Well Pump 6SE30/10T Applications

Deep well water extraction
Industrial water supply systems
Municipal water projects
Agricultural irrigation

Shimge 15 HP Submersible Deep Well Pump 6SE30/10T Benefits

High power efficiency for demanding tasks
Suitable for deep borehole installations
Handles water with impurities effectively
Reliable and durable for long-term use

Shimge 15 HP Submersible Deep Well Pump 6SE30/10T Price List

No.	Name	Price
1	Shimge 15 HP Submersible Deep Well Pump 6SE30/10T Price	Contact us

Brand	Shimge
Power (kW)	11
Power (HP)	15
Maximum Ambient Temperature (°C)	40
Maximum immersion depth (m)	70
Voltage (V)	380
Maximum Flow Rate (m3/h)	40
Maximum Delivery Head (m)	143
