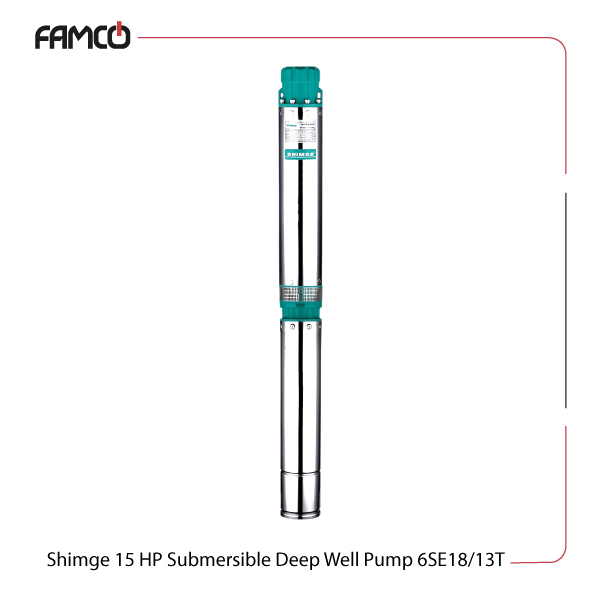

Shimge 15 HP Submersible Deep Well Pump 6SE18/13T Specifications
This deep well pumping has a maximum delivery head that ranges from 71 to 176 meters. It operates at 11 kW (15 HP) and is designed for deep well applications. The 6SE18/13T Shimge pump has a maximum immersion depth of 70 meters, fitting boreholes with a diameter of 6 inches. The pump can deliver an impressive maximum flow rate of 450 liters per minute, which translates to 27 cubic meters per hour. It operates efficiently in environments with ambient temperatures below 40°C. It withstands water with minimal sand content (up to 0.01%). Hydrogen sulfide levels up to 1.5 mg/L and chloride ion concentrations up to 400 mg/L are also tolerated. This submersible pump is powered by a three-phase voltage of 380V that matches most power supplies. Industrial, agricultural, and municipal water supply systems most benefit from adding this water pump to their demanding setups.
| Specification | Value |
| Power (kW) | 11 |
| Power (HP) | 15 |
| Max. ambient temperature (℃) | < 40 |
| Sand content | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Three-phase voltage (V) | 380 |
| Max. flow rate (l/min) | 450 |
| Max. flow rate (m3/h) | 27 |
| Max. delivery head (m) | 71-176 |
| Placement in | 6 inch boreholes |

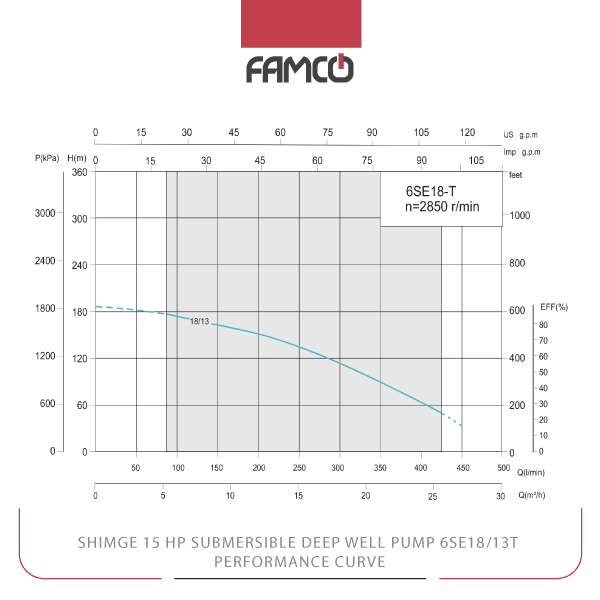

Shimge 15 HP Submersible Deep Well Pump 6SE18/13T Peformance Data
| M3/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 27 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| Head (m) | 186 | 179 | 179 | 169 | 149 | 137 | 115 | 90 | 66 | 34 |
Shimge 15 HP Submersible Deep Well Pump 6SE18/13T Applications
- Deep well water extraction for agriculture
- Municipal water supply systems
- Industrial water pumping
- Irrigation projects
Shimge 15 HP Submersible Deep Well Pump 6SE18/13T Benefits
- High flow rate for large-scale water needs
- Suitable for deep boreholes up to 70 meters
- Reliable operation in tough water conditions
- Energy-efficient with stable power supply
Shimge 15 HP Submersible Deep Well Pump 6SE18/13T Price List
| No. | Name | Price |
| 1 | Shimge 15 HP Submersible Deep Well Pump 6SE18/13T Price | Contact us |
