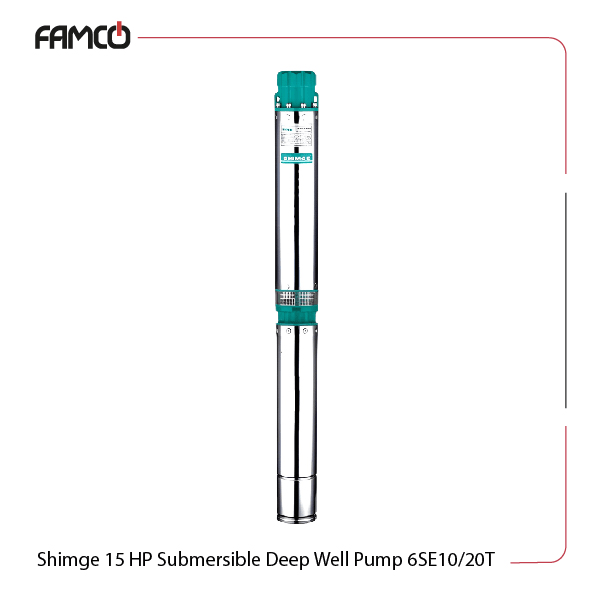

Shimge 15 HP Submersible Deep Well Pump 6SE10/20T Specifications

Powered by an 11 kW motor running at 2850 r/min, this Shimge pump model maintains a steady output of around 18 m³/h with consistently high-pressure water transfer. This submersible pump operates in water with pH levels between 6.5 and 8.5 and handles temperatures under 40°C. The combination of deep immersion capacity and long head range makes it fit for large-scale water management systems, especially in vertical or inclined installations. Suitable for ambient temperatures below 40 °C, this product handles most tasks without hassles. Its compatibility with three-phase setups is what makes it a widespread option with a 380V. With everything said, these submersible pumps cover a range of users with different needs by providing reliable results.

Specefication	Value
Model	6SE10/20T
Power (HP)	15
Power (kW)	11
Max ambient temperature (°C)	<40
Suitable pH range	6.5–8.5
Maximum immersion (m)	70 m below static water table
Maximum delivery head (m)	≈119–260
Maximum flow rate (l/min)	300
Maximum flow rate (m³/h)	18
Voltage	380V (Three-phase)
Rotation speed (r/min)	2850

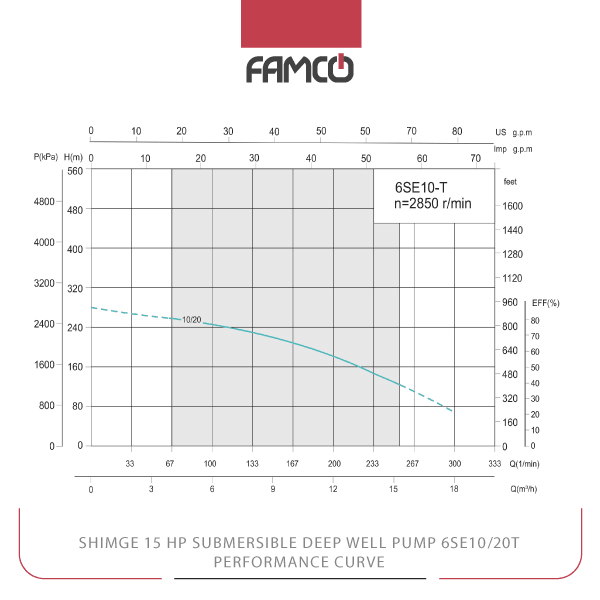

Shimge 15 HP Submersible Deep Well Pump 6SE10/20T Performance Data

l/min	0	2	4	6	8	10	12	14	16	18
m³/h	0	33	67	100	133	167	200	233	267	300
H	280	266	258	246	229	204	174	138	96	49

Shimge 15 HP Submersible Deep Well Pump 6SE10/20T Applications

• Deep well pumping for industrial zones
• Water supply for remote infrastructure
• High-elevation agricultural irrigation
• Long-distance water transport for commercial needs

Shimge 15 HP Submersible Deep Well Pump 6SE10/20T Benefits

• Lifts water up to approx. 260 meters
• Maintains stable flow at deep immersion
• Built for high-demand and large-scale systems
• Operates on standard 380V industrial setups

Shimge 15 HP Submersible Deep Well Pump 6SE10/20T Price List

No.	Name	Price
1	Shimge 15 HP Submersible Deep Well Pump 6SE10/20T Price	Contact us
