Shimge 12.5 HP Submersible Deep Well Pump 6SE45/6T Specifications
This powerful submersible pump operates with a 9.2 kW (12.5 HP) motor, suitable for demanding water extraction tasks. It can handle environments with ambient temperatures below 40°C and is designed to work efficiently in boreholes with a diameter of 6 inches. The pump can be immersed up to 70 meters deep, making it ideal for deep well applications. It supports a maximum flow rate of 1000 liters per minute, equivalent to 60 cubic meters per hour, and can deliver water with a head ranging from 43 to 80 meters. This series of submersible pumps is compatible with a three-phase power supply of 380V, ensuring stable and reliable operation. It is built to handle water with minimal sand content (up to 0.01%), low hydrogen sulfide levels (up to 1.5 mg/L), and chloride ion concentrations up to 400 mg/L. The pH range of 6.5 to 8.5 indicates its suitability when working with water qualities. Considering everything, this pump combines high power, durability, and efficiency, making it perfect for industrial, agricultural, and municipal water supply systems.
| Specification | Value |
| Power (kW) | 9.2 |
| Power (HP) | 12.5 |
| Max. ambient temperature (℃) | < 40 |
| Sand content | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Three-phase voltage (V) | 380 |
| Max. flow rate (l/min) | 1000 |
| Max. flow rate (m3/h) | 60 |
| Max. delivery head (m) | 43-80 |
| Placement in | 6-inch boreholes |

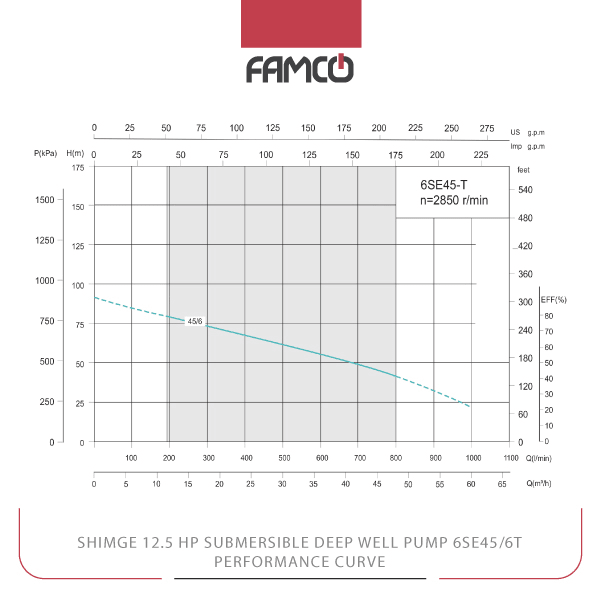

Shimge 12.5 HP Submersible Deep Well Pump 6SE45/6T Performance Data
| M3/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Head (m) | 92 | 85 | 79 | 73 | 68 | 62 | 55 | 49 | 42 | 33 | 22 |
Shimge 12.5 HP Submersible Deep Well Pump 6SE45/6T Applications
- Deep well water extraction
- Municipal water supply systems
- Agricultural irrigation projects
- Industrial water transfer
Shimge 12.5 HP Submersible Deep Well Pump 6SE45/6T Benefits
- High power and flow capacity for demanding tasks
- Suitable for deep boreholes up to 70 meters
- Durable construction for water with minimal sand and chemicals
- Reliable operation with stable three-phase power
Shimge 12.5 HP Submersible Deep Well Pump 6SE45/6T Price List
| No. | Name | Price |
| 1 | Shimge 12.5 HP Submersible Deep Well Pump 6SE45/6T Price | Contact us |
