Shimge 12.5 HP Submersible Deep Well Pump 6SE30/9T Specifications
This powerful submersible pump operates at 9.2 kW (12.5 HP), making it suitable for demanding water extraction tasks. It can handle environments with temperatures up to 40°C and is designed to work efficiently in boreholes with a diameter of 6 inches. The pump can manage water with minimal sand, hydrogen sulfide, and chloride ion content. The exact amounts are listed in the table below. This pumping solution operates within a pH range of 6.5 to 8.5, handling various water qualities. The maximum immersion depth is 70 meters, so it can be used in deeper wells and locations. This Shimge-manufactured submersible pump runs on a three-phase power supply of 380V, offering stable and reliable operation. The pump’s maximum flow rate is 667 liters per minute, or 40 cubic meters per hour, with a delivery head ranging from 52 to 117 meters.
| Specification | Value |
| Power (kW) | 9.2 |
| Power (HP) | 12.5 |
| Max. ambient temperature (℃) | < 40 |
| Sand content | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Three-phase voltage (V) | 380 |
| Max. flow rate (l/min) | 667 |
| Max. flow rate (m3/h) | 40 |
| Max. delivery head (m) | 52-117 |

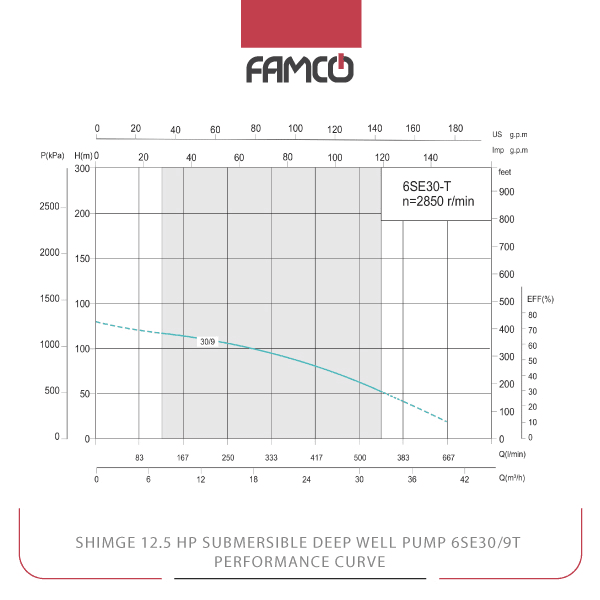

Shimge 12.5 HP Submersible Deep Well Pump 6SE30/9T Performance Data
| M3/h | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 |
| l/min | 0 | 83 | 167 | 250 | 333 | 417 | 500 | 583 | 667 |
| Head (m) | 129 | 121 | 113 | 105 | 95 | 80 | 62 | 42 | 19 |
Shimge 12.5 HP Submersible Deep Well Pump 6SE30/9T Applications
- Deep well water extraction
- Irrigation systems in agriculture
- Industrial water supply
- Municipal water projects
Shimge 12.5 HP Submersible Deep Well Pump 6SE30/9T Benefits
- High efficiency with 9.2 kW power output
- Suitable for deep boreholes up to 70 meters
- Handles water with minimal sand and contaminants
- Stable operation with 380V three-phase power
Shimge 12.5 HP Submersible Deep Well Pump 6SE30/9T Price List
| No. | Name | Price |
| 1 | Shimge 12.5 HP Submersible Deep Well Pump 6SE30/9T Price | Contact us |
