Shimge 12.5 HP Submersible Deep Well Pump 6SE18/11T Specifications
This water extraction pump operates at 9.2 kW (12.5 HP). It can handle environments with ambient temperatures below 40°C and is suitable for boreholes with a diameter of 6 inches. This pump solves contaminated pumping troubles while managing water with sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ions up to 400 mg/L. It functions efficiently within a pH range of 6.5 to 8.5. The maximum immersion depth is set at 70 meters, which comes in handy for deep well applications. It requires a three-phase power supply of 380V, which is standard in submersible pumps. The pump’s maximum flow rate is 100 liters per minute, or 6 cubic meters per hour, with a delivery head ranging from 58 to 146 meters. Its design is made for borehole installations and various industrial and municipal uses.
| Specification | Value |
| Power (kW) | 9.2 |
| Power (HP) | 12.5 |
| Max. ambient temperature (℃) | < 40 |
| Sand content | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Three-phase voltage (V) | 380 |
| Max. flow rate (l/min) | 100 |
| Max. flow rate (m3/h) | 6 |
| Max. delivery head (m) | 58-146 |

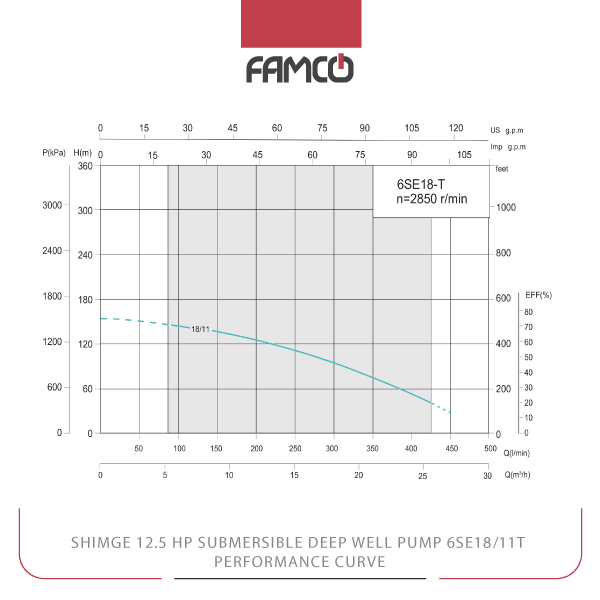

Shimge 12.5 HP Submersible Deep Well Pump 6SE18/11T Performance Data
| M3/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 27 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| Head (m) | 156 | 151 | 145 | 137 | 125 | 110 | 94 | 76 | 53 | 29 |
Shimge 12.5 HP Submersible Deep Well Pump 6SE18/11T Applications
- Deep well water extraction
- Municipal water supply systems
- Industrial water processing
- Irrigation systems
Shimge 12.5 HP Submersible Deep Well Pump 6SE18/11T Benefits
- High efficiency with 9.2 kW power
- Suitable for deep boreholes up to 70 meters
- Handles water with minor sand and chemical content
- Reliable performance in tough environments
Shimge 12.5 HP Submersible Deep Well Pump 6SE18/11T Price List
| No. | Name | Price |
| 1 | Shimge 12.5 HP Submersible Deep Well Pump 6SE18/11T Price | Contact us |
