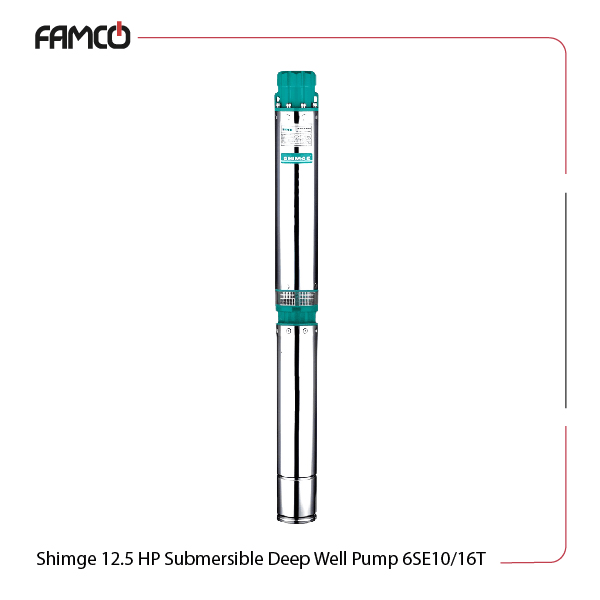

Shimge 12.5 HP Submersible Deep Well Pump 6SE10/16T Specifications

This deep well pump delivers up to 4 m³/h, supported by a high-speed motor operating at 2850 r/min. Its 9.2 kW motor allows the pump to handle significant vertical lifts. These submersible pumps work efficiently in water temperatures under 40°C and support almost neutral water with a pH between 6.5 and 8.5. Built for depth and endurance, the 6SE10/16T is a strong choice for large-scale installations where performance is a top priority. Users could integrate this Shimge pump into their setups with ease of mind since it tolerates ambient temperatures below 40°C easily. With everything considered, this product has it all to deliver more than satisfactory performance.

Specefication	Value
Model	6SE10/16T
Power (HP)	12.5
Power (kW)	9.2
Max ambient temperature (°C)	<40
Suitable pH range	6.5–8.5
Maximum immersion (m)	70 m below static water table
Maximum delivery head (m)	97≈210
Maximum flow rate (l/min)	300
Maximum flow rate (m³/h)	18
Voltage	380V (Three-phase)
Rotation speed (r/min)	2850

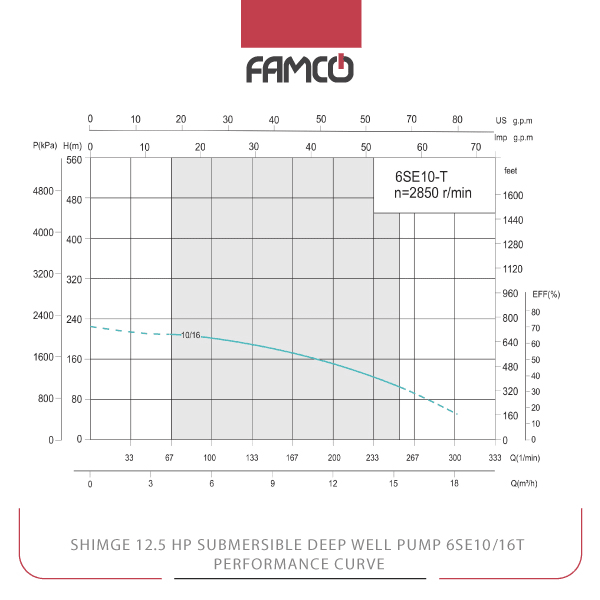

Shimge 12.5 HP Submersible Deep Well Pump 6SE10/16T Performance Data

l/min	0	2	4	6	8	10	12	14	16	18
m³/h	0	33	67	100	133	167	200	233	267	300
H	224	213	206	197	183	163	139	110	77	39

Shimge 12.5 HP Submersible Deep Well Pump 6SE10/16T Applications

• Groundwater systems for high-rise buildings
• Agricultural pumping over large fields
• Industrial water supply at elevated terrain
• Water delivery in deep commercial or municipal wells

Shimge 12.5 HP Submersible Deep Well Pump 6SE10/16T Benefits

• High-lift capacity up to 210 meters
• Stable performance at around 4 m³/h flow rate
• Suited for long-term and deep well operation
• Works with a standard three-phase 380V supply

Shimge 12.5 HP Submersible Deep Well Pump 6SE10/16T Price List

No.	Name	Price
1	Shimge 12.5 HP Submersible Deep Well Pump 6SE10/16T Price	Contact us
