Shimge 10 HP Submersible Pump 4SP8/46-7.5

7.5 kW (10 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Shimge Pumps, Shimge Submersible Pumps

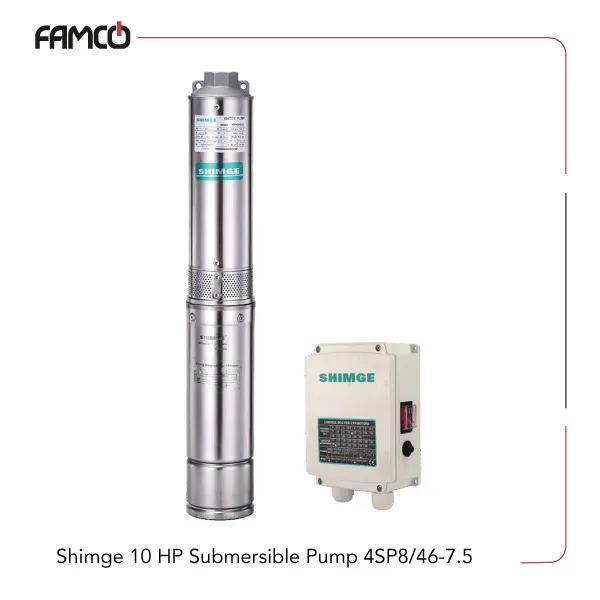

Overview of Shimge 10 HP Submersible Pump 4SP8/46-7.5

This three-phase pump from Shimge, the 4SP8/46-7.5, is a 10 HP powerful solution with heads of above 250 meters and flow rates of 10.8 m³/h. It is suitable for deep well installations and can handle challenging water conditions. Its robust design ensures durability and efficient performance. Most applied for industrial, agricultural, and municipal applications, it offers high flow rates and significant head capacity. The pump’s compatibility with three-phase power supplies makes it versatile for UAE regions. Its ability to operate under specific environmental parameters guarantees consistent operation even in demanding conditions.

Shimge 10 HP Submersible Pump 4SP8/46-7.5 Specifications

This product is designed to operate efficiently under various environmental conditions. It can withstand ambient temperatures below 40°C and handle sand content up to 100 grams per cubic meter. It is suitable for environments with hydrogen sulfide levels up to 1.5 milligrams per liter and chloride ion concentrations up to 400 milligrams per liter. The device functions within a pH range of 6.5 to 8.5, ensuring compatibility with most water sources. It can be installed at depths up to 70 meters in boreholes, making this Shimge submersible pump a practical choice for deep well applications. The equipment supports the UAE three-phase (380V) power supplies, with a power rating of 7.5 kilowatts or 10 horsepower. It offers a maximum flow rate of 180 liters per minute, with a head range from 106 to 264 meters, and a maximum head of 285 meters, providing versatile pumping solutions for various needs.

Specification	Value
Max. ambient temperature	< 40°C
Maximum sand content	100g/m³
Maximum Hydrogen sulfide content	up to 1.5mg/L
Maximum chloride ion content	up to 400mg/L
pH range	6.5 to 8.5
Max. immersion depth	70 meters
Three-phase voltage	380V
Installation	in 4-inch boreholes
Power	10 HP
Max. flow rate	180 liters per minute
Head range	264-106 meters
Max. head	285 meters

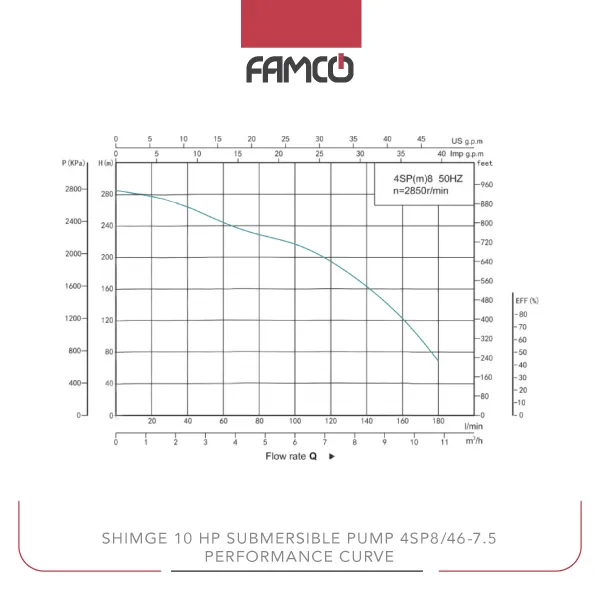

Shimge 10 HP Submersible Pump 4SP8/46-7.5 Performance Data

m³/h	0	1.2	2.4	3.6	4.8	6	7.2	8.4	9.6	10.8
l/min	0	20	40	60	80	100	120	140	160	180
head (m)	285	277	264	244	229	217	195	163	123	69

Shimge 10 HP Submersible Pump 4SP8/46-7.5 Applications

Deep well water extraction
Municipal water supply systems
Agricultural irrigation projects
Industrial water transfer

Shimge 10 HP Submersible Pump 4SP8/46-7.5 Benefits

High efficiency with a maximum flow rate of 180 l/min
Suitable for deep installations up to 70 meters
Operates reliably in challenging water conditions
Compatible with both single-phase and three-phase power supplies

Shimge 10 HP Submersible Pump 4SP8/46-7.5 Price List

No.	Name	Price
1	Shimge 10 HP Submersible Pump 4SP8/46-7.5 Price	Contact us

Brand	Shimge
Applications	Deep well water extraction, Municipal water supply, Water supply systems
Power (kW)	7.5
Power (HP)	10
Maximum Flow Rate (L/min)	180
Maximum Delivery Head (m)	285
