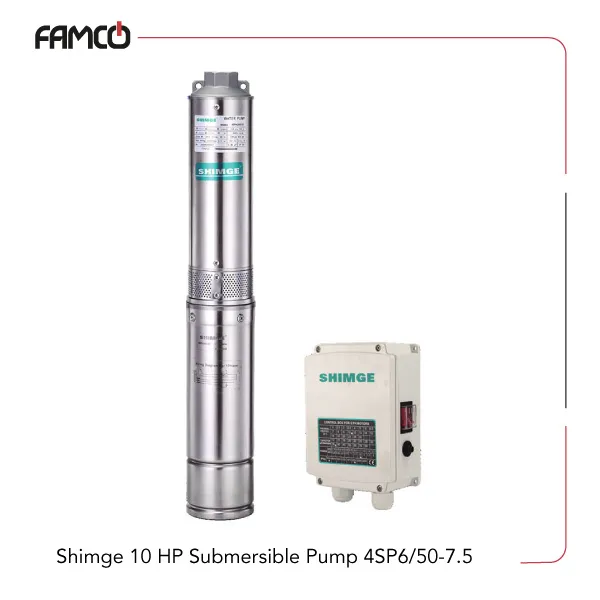

Shimge 10 HP Submersible Pump 4SP6/50-7.5 Specifications
This product operates efficiently in environments with temperatures below 40°C and can handle sand content up to 100 grams per cubic meter. It is designed to withstand water with hydrogen sulfide levels up to 1.5 milligrams per liter and chloride ion concentrations up to 400 milligrams per liter. The Shimge submersible pump functions within a pH range of 6.5 to 8.5, ensuring compatibility with various water qualities. It can be installed at depths up to 70 meters in 4-inch boreholes, making it suitable for deep water extraction. The motor runs on a three-phase voltage of 380 volts, providing reliable power for continuous operation. With a power output of 7.5 kilowatts (equivalent to 10 horsepower), it delivers a maximum flow rate of 70 liters per minute. The head range varies from 148 to 334 meters, with a maximum head capacity of 364 meters, making it ideal for high-pressure applications and deep well pumping. Its robust construction and versatile specifications make it suitable for industrial, municipal, and agricultural water supply systems, especially in challenging environments with high sand and chemical content.
| Specification | Value |
| Max. ambient temperature | < 40°C |
| Maximum sand content | 100g/m³ |
| Maximum Hydrogen sulfide content | up to 1.5mg/L |
| Maximum chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| three-phase voltage (V) | 380 |
| installation | in 4-inch boreholes |
| power (kW) | 7.5 |
| power (HP) | 10 |
| Max. flow rate (l/min) | 70 |
| head range (m) | 334-148 |
| max. head (m) | 364 |
Shimge 10 HP Submersible Pump 4SP6/50-7.5 Performance Data
| m³/h | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | head range (m) |
| l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | |
| head (m) | 364 | 338 | 326 | 300 | 269 | 233 | 177 | 118 | 334-148 |
Shimge 10 HP Submersible Pump 4SP6/50-7.5 Applications
- Deep well water extraction
- Municipal water supply systems
- Agricultural irrigation projects
- Industrial water processing
Shimge 10 HP Submersible Pump 4SP6/50-7.5 Benefits
- High efficiency at deep depths
- Handles water with chemical content
- Reliable performance in tough environments
- Easy installation in standard boreholes
Shimge 10 HP Submersible Pump 4SP6/50-7.5 Price List
| No. | Name | Price |
| 1 | Shimge 10 HP Submersible Pump 4SP6/50-7.5 Price | Contact us |
