Shimge 10 HP Submersible Deep Well Pump 6SE45/5T

7.5 kW (10 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Shimge Pumps, Shimge Submersible Pumps

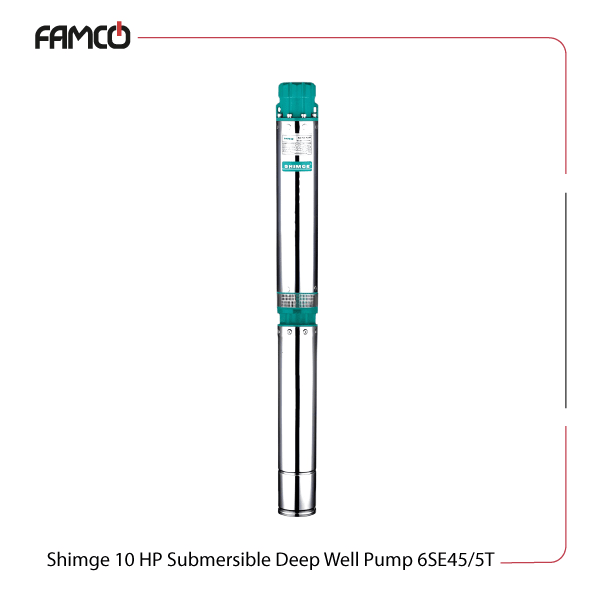

Overview of Shimge 10 HP Submersible Deep Well Pump 6SE45/5T

Deeper well extractions, irrigation, and industrial water supply tasks are facilitated using this Shimge 10 HP pump. Its output, equivalent to 7.5 kW, delivers a maximum flow rate of 60 m3/h and can operate at a maximum head of 66 meters. The 6SE45/5T could be submerged up to 70 meters. The pump is engineered to withstand tough water conditions containing chemicals, solids, and different pH levels. It’s compatible with 380V three-phase power supplies, especially in industrial settings. Whether used for agricultural irrigation or municipal water systems, this borehole pump provides steady output.

Shimge 10 HP Submersible Deep Well Pump 6SE45/5T Specifications

This product features a powerful 7.5 kW (10 HP) motor designed for efficient water pumping. It operates under a maximum ambient temperature of less than 40°C. The pump can handle sand content ( up to 0.01%) and hydrogen sulfide levels (up to 1.5 mg/L). It also tolerates chloride ion concentrations up to 400 mg/L and works within a pH range of 6.5 to 8.5. The pump can be immersed up to 70 meters deep. It runs on a three-phase voltage of 380V with a stable power supply. The maximum flow rate of this submersible pump is 1000 liters per minute or 60 cubic meters per hour, with a delivery head ranging from 36 to 66 meters. Designed for installation in 6-inch boreholes, this pump is perfect for water extraction, irrigation, and industrial use.

Specification	Value
Power (kW)	7.5
Power (HP)	10
Max. ambient temperature (℃)	< 40
Sand content	up to 0.01%
Hydrogen sulfide content	up to 1.5mg/L
Chloride ion content	up to 400mg/L
pH	6.5 to 8.5
Max. immersion depth (m)	70
Three-phase voltage (V)	380
Max. flow rate (l/min)	1000
Max. flow rate (m3/h)	60
Max. delivery head (m)	36-66

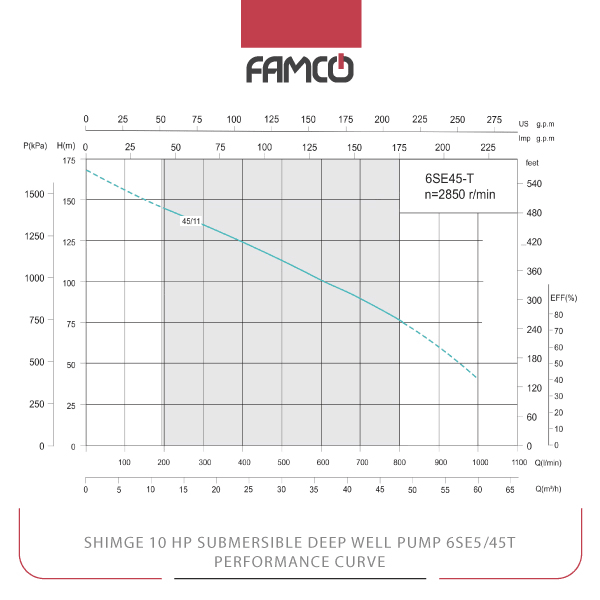

Shimge 10 HP Submersible Deep Well Pump 6SE45/5T Performance Data

M3/h	0	6	12	18	24	30	36	42	48	54	60
l/min	0	100	200	300	400	500	600	700	800	900	1000
Head (m)	76	71	66	61	56	51	46	41	35	27	18

Shimge 10 HP Submersible Deep Well Pump 6SE45/5T Applications

Deep well water extraction
Agricultural irrigation systems
Industrial water supply
Municipal water projects

Shimge 10 HP Submersible Deep Well Pump 6SE45/5T Benefits

High efficiency with 7.5 kW power
Suitable for deep boreholes up to 70 meters
Handles challenging water conditions with sand and chemical tolerance
Reliable performance with stable 380V power supply

Shimge 10 HP Submersible Deep Well Pump 6SE45/5T Price List

No.	Name	Price
1	Shimge 10 HP Submersible Deep Well Pump 6SE45/5T Price	Contact us

Brand	Shimge
Power (kW)	7.5
Power (HP)	10
Maximum Ambient Temperature (°C)	40
Maximum immersion depth (m)	70
Voltage (V)	380
Maximum Flow Rate (m3/h)	60
Maximum Delivery Head (m)	66
