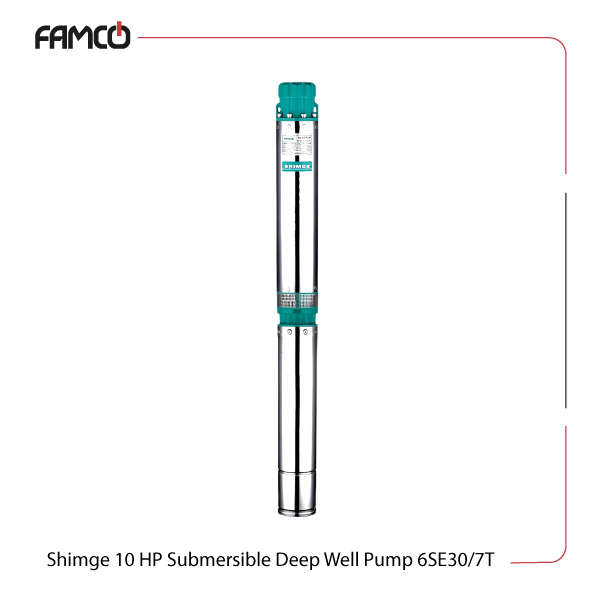

Shimge 10 HP Submersible Deep Well Pump 6SE30/7T

5.5 kW (7.5 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Shimge Pumps, Shimge Submersible Pumps

Overview of Shimge 10 HP Submersible Deep Well Pump 6SE30/7T

Configured with a 10 HP output, this Shimge pump achieves 91s-meter head height. The 6SE30/7T is built for demanding applications, like groundwater extraction and irrigation. Its design ensures durability even in challenging water conditions, including moderate sand and chemical content. Suitable for use in boreholes up to 70 meters deep, it provides reliable and efficient water delivery. The pump’s compatibility with standard three-phase 380V power makes it well-suited for commercial and large-scale water projects. The combination of this submersible pump’s features has made it popular with agricultural, municipal, and industrial sectors.

Shimge 10 HP Submersible Deep Well Pump 6SE30/7T Specifications

This product features a powerful 7.5 kW (10 HP) motor designed for efficient water pumping. It operates in environments with ambient temperatures below 40°C. The pump can handle some sand, hydrogen, and chloride ions content as shown below. It supports a pH range of 6.5 to 8.5, so it can pass along a range of liquids. The maximum immersion depth is 70 meters, and it runs on a three-phase voltage of 380V. This series of submersible pumps can deliver a maximum flow rate of 667 liters per minute or 40 cubic meters per hour, with a maximum delivery head between 41 and 91 meters. Designed for installation in 6-inch boreholes, this pump is used for groundwater extraction, irrigation, and industrial water supply systems.

Specification	Value
Power (kW)	7.5
Power (HP)	10
Max. ambient temperature (℃)	< 40
Sand content	up to 0.01%
Hydrogen sulfide content	up to 1.5mg/L
Chloride ion content	up to 400mg/L
pH	6.5 to 8.5
Max. immersion depth (m)	70
Three-phase voltage (V)	380
Max. flow rate (l/min)	667
Max. flow rate (m3/h)	40
Max. delivery head (m)	51-91

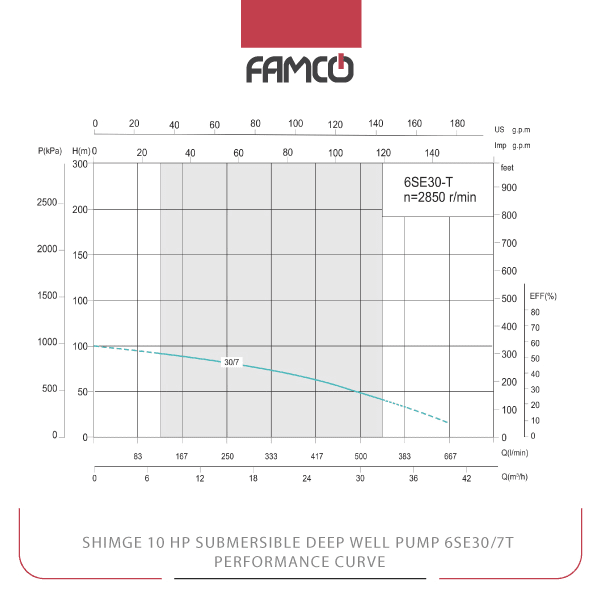

Shimge 10 HP Submersible Deep Well Pump 6SE30/7T Performance Data

M3/h	0	5	10	15	20	25	30	35	40
l/min	0	83	167	250	333	417	500	583	667
Head (m)	100	94	88	82	73	63	48	32	14

Shimge 10 HP Submersible Deep Well Pump 6SE30/7T Applications

Groundwater extraction for agriculture
Irrigation systems in farming
Industrial water supply
Municipal water projects

Shimge 10 HP Submersible Deep Well Pump 6SE30/7T Benefits

High flow rate for efficient water delivery
Deep immersion capability up to 70 meters
Suitable for various water qualities and conditions
Reliable operation with three-phase power

Shimge 10 HP Submersible Deep Well Pump 6SE30/7T Price List

No.	Name	Price
1	Shimge 10 HP Submersible Deep Well Pump 6SE30/7T Price	Contact us

Brand	Shimge
Power (kW)	7.5
Power (HP)	10
Maximum Ambient Temperature (°C)	40
Maximum immersion depth (m)	70
Voltage (V)	380
Maximum Flow Rate (m3/h)	40
Maximum Delivery Head (m)	91
