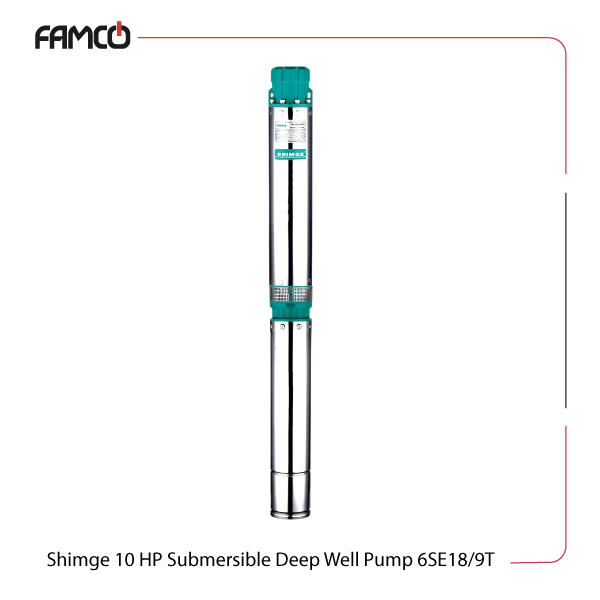

Shimge 10 HP Submersible Deep Well Pump 6SE18/9T

7.5 kW (10 HP)

Three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Shimge 10 HP Submersible Deep Well Pump 6SE18/9T

Once integrated into pumping systems, the 10 HP 6SE18/9T single-handedly takes care of professional tasks. Its design suits deep immersion up to 70 meters for well and borehole use. Its 6-inch design helps its placement into tight spaces. The pump is built to withstand water with minimal sand, hydrogen sulfide, and chloride content. Suitable for industrial, municipal, and agricultural projects, it provides efficient 450 l/min flow rates and adjustable 47 to 120-meter delivery heights. Its compatibility with a 380V three-phase power supply makes it suitable for large-scale operations.

Related Products

Shimge 10 HP Submersible Deep Well Pump 6SE18/9T Specifications

This powerful pump operates at 7.5 kW (10 HP) and is designed for demanding applications. It can best handle environments with temperatures below 40°C and is resistant to water with up to 0.01% sand content, 1.5 mg/L hydrogen sulfide, and 400 mg/L chloride ions. This collection of submersible pumps works efficiently within a pH range of 6.5 to 8.5. It can be submerged up to 70 meters deep and runs on a three-phase power supply of 380V. The maximum flow rate is 450 liters per minute, equivalent to 27 cubic meters per hour. It can deliver water at heights ranging from 47 to 120 meters in industrial and municipal settings.

Shimge 10 HP Submersible Deep Well Pump 6SE18/9T

Specification Value
Power (kW) 7.5
Power (HP) 10
Max. ambient temperature (℃) < 40
Sand content up to 0.01%
Hydrogen sulfide content up to 1.5mg/L
Chloride ion content up to 400mg/L
pH 6.5 to 8.5
Max. immersion depth (m) 70
Three-phase voltage (V) 380
Max. flow rate (l/min) 450
Max. flow rate (m3/h) 27
Max. delivery head (m) 47-120

Shimge 10 HP Submersible Deep Well Pump 6SE18/9T Performance Data

M3/h 0 3 6 9 12 15 18 21 24 27
l/min 0 50 100 150 200 250 300 350 400 450
Head (m) 128 124 119 112 102 90 77 62 43 24

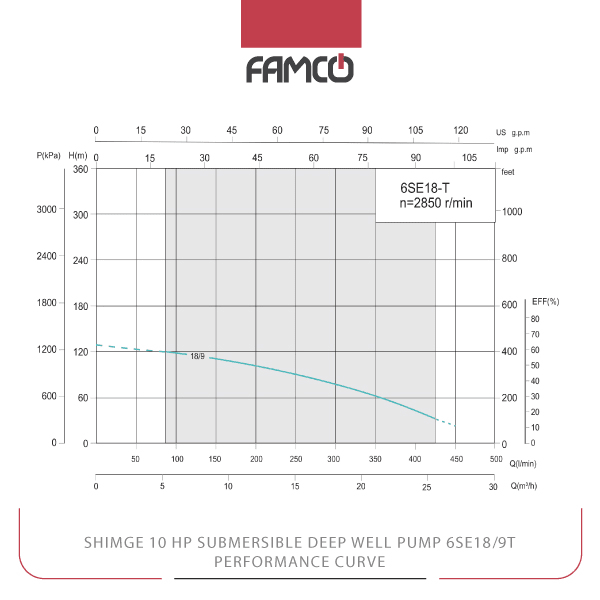

Shimge 10 HP Submersible Deep Well Pump 6SE18/9T Performance Curve

Shimge 10 HP Submersible Deep Well Pump 6SE18/9T Applications

  • Water supply in industrial plants
  • Municipal water pumping systems
  • Irrigation and agricultural water transfer
  • Deep well and borehole water extraction



Shimge 10 HP Submersible Deep Well Pump 6SE18/9T Benefits

  • High efficiency with a powerful 4 kW motor
  • Suitable for deep immersion up to 70 meters
  • Resistant to water with minimal sand and chemical content
  • Flexible flow and head options for various needs



Shimge 10 HP Submersible Deep Well Pump 6SE18/9T Price List

No. Name Price
1 Shimge 10 HP Submersible Deep Well Pump 6SE18/9T Price Contact us
Brand

Power (kW)

Power (HP)

Maximum Ambient Temperature (°C)

Maximum immersion depth (m)

Voltage (V)

Maximum Flow Rate (m3/h)

Maximum Delivery Head (m)
