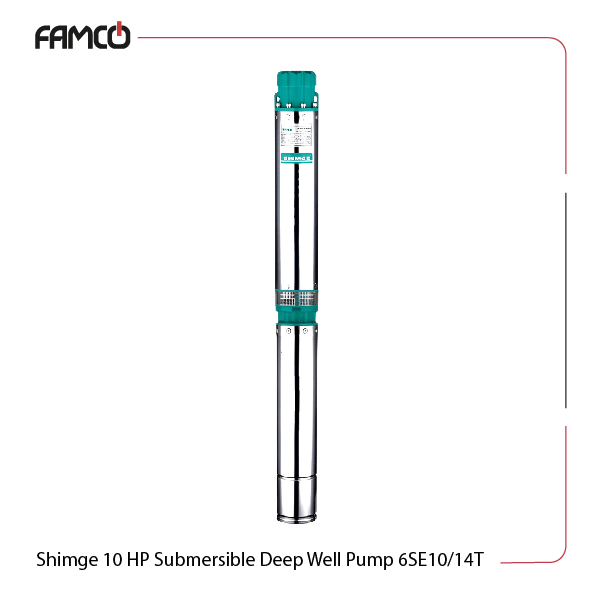

Shimge 10 HP Submersible Deep Well Pump 6SE10/14T Specifications
This Shimge pump offers a flow rate of 18 m³/h and runs at 2850 r/min for efficient and smooth operation. With a power output of 7.5 kW, it’s suited for continuous use in high-demand environments. It’s built to function in water temperatures below 40°C and works best in clean water with a pH range of 6.5 to 8.5. The submersible pumps‘ strong lift capacity and compatibility with industrial power setups make these units ideal for long-distance or high-elevation pumping. Strong build and advanced performance have given this Shimge pump the jump start it needs.
| Specefication | Value |
| Model | 6SE10/14T |
| Power (HP) | 10 |
| Power (kW) | 7.5 |
| Max ambient temperature (°C) | <40 |
| Suitable pH range | 6.5–8.5 |
| Maximum immersion (m) | 70 m below static water table |
| Maximum delivery head (m) | 77≈181 |
| Maximum flow rate (l/min) | 300 |
| Maximum flow rate (m³/h) | 18 |
| Voltage | 380V (Three-phase) |
| Rotation speed (r/min) | 2850 |

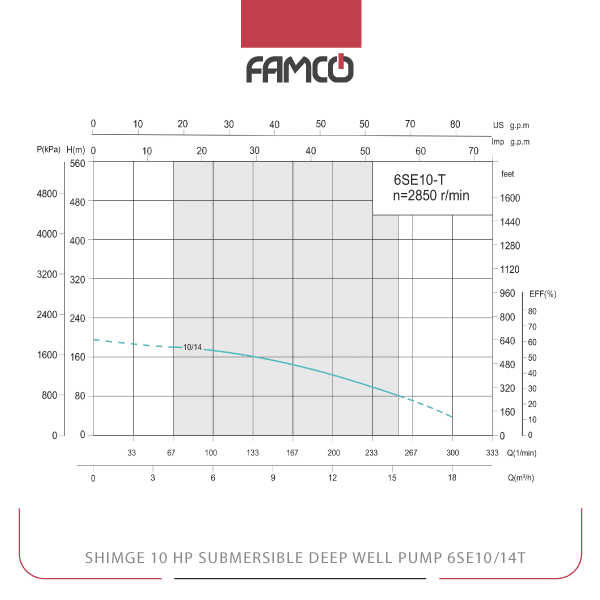

Shimge 10 HP Submersible Deep Well Pump 6SE10/14T Performance Data
| l/min | 0 | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 |
| m³/h | 0 | 33 | 67 | 100 | 133 | 167 | 200 | 233 | 267 | 300 |
| H | 196 | 186 | 181 | 172 | 160 | 143 | 122 | 97 | 67 | 34 |
Shimge 10 HP Submersible Deep Well Pump 6SE10/14T Applications
- Irrigation systems for large-scale farming
- Groundwater supply for remote buildings
- High-lift industrial water transfer
- Deep well systems for commercial sites
Shimge 10 HP Submersible Deep Well Pump 6SE10/14T Benefits
- Supports lifts up to 181 meters
- Steady water delivery at 4 m³/h
- Operates with common three-phase setups
- Designed for deep installations with stable performance
Shimge 10 HP Submersible Deep Well Pump 6SE10/14T Price List
| No. | Name | Price |
| 1 | Shimge 10 HP Submersible Deep Well Pump 6SE10/14T Price | Contact us |
