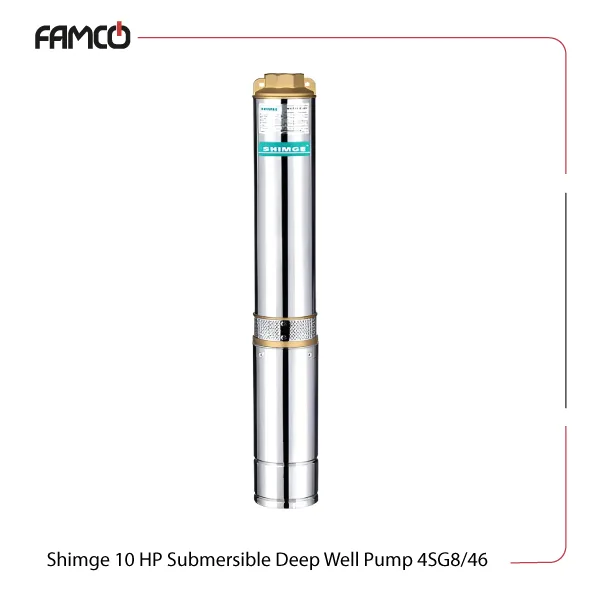

Shimge 10 HP Submersible Deep Well Pump 4SG8/46 Specifications
This powerful pump operates at 7.5 kW (10 HP). It can handle environments with temperatures below 40°C and is suitable for water with minimal sand content up to 0.01%. To expand its usage, this submersible pump is capable of managing water with hydrogen sulfide levels up to 1.5 mg/L and chloride ions up to 400 mg/L. It supports a pH range from 6.5 to 8.5, with maximized compatibility with different water qualities. The device can be immersed up to 70 meters deep, which is flexible in deep well applications. It runs on a three-phase power supply of 380V, while keeping operations stable. The maximum flow rate is 180 liters per minute, or 10.8 cubic meters per hour, with a delivery head ranging from 69 to 285 meters.
| Specification | Value |
| Power (kW) | 7.5 |
| Power (HP) | 10 |
| Max. ambient temperature (℃) | < 40 |
| Sand content | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Three-phase voltage (V) | 380 |
| Max. flow rate (l/min) | 180 |
| Max. flow rate (m3/h) | 10.8 |
| Max. delivery head (m) | 69-285 |

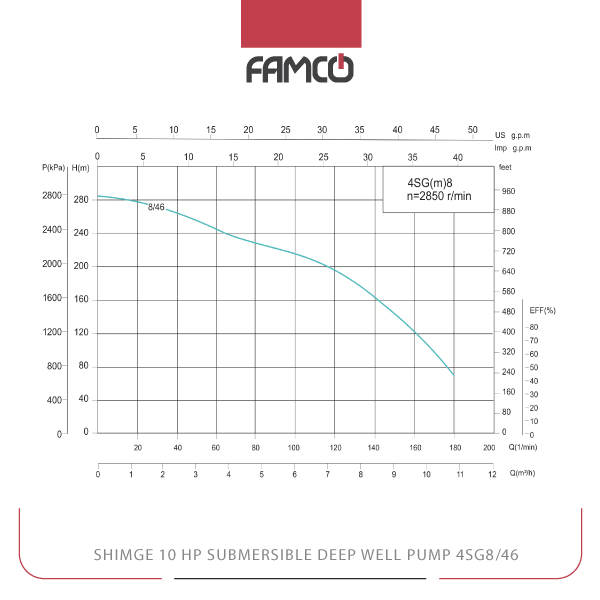

Shimge 10 HP Submersible Deep Well Pump 4SG8/46 Performance Data
| M3/h | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | 9.6 | 10.8 |
| l/min | 0 | 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 |
| Head (m) | 285 | 277 | 264 | 244 | 229 | 217 | 195 | 163 | 123 | 69 |
Shimge 10 HP Submersible Deep Well Pump 4SG8/46 Applications
- Deep well water extraction
- Municipal water supply systems
- Agricultural irrigation projects
- Industrial water transfer and treatment
Shimge 10 HP Submersible Deep Well Pump 4SG8/46 Benefits
- High flow rate and strong pressure for demanding tasks
- Suitable for deep immersion up to 70 meters
- Operates efficiently in environments with specific water qualities
- Reliable and durable for long-term use
Shimge 10 HP Submersible Deep Well Pump 4SG8/46 Price List
| No. | Name | Price |
| 1 | Shimge 10 HP Submersible Deep Well Pump 4SG8/46 Price | Contact us |
