Shimge 10 HP Submersible Deep Well Pump 4SG8/42 Specifications
This product features a powerful 7.5 kW (10 HP) motor, suitable for demanding applications. It operates efficiently in environments with ambient temperatures below 40°C. The pump can handle water with sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ions up to 400 mg/L. It functions within a pH range of 6.5 to 8.5, so this submersible pump delivers seamless performance across different water qualities. The maximum immersion depth is 70 meters. It requires a three-phase power supply of 380V. The pump provides users with a maximum flow rate of 180 liters per minute, equivalent to 10.8 cubic meters per hour. Its maximum delivery head ranges from 63 to 260 meters, so different head height requirements are covered.
| Specification | Value |
| Power (kW) | 7.5 |
| Power (HP) | 10 |
| Max. ambient temperature (℃) | < 40 |
| Sand content | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Three-phase voltage (V) | 380 |
| Max. flow rate (l/min) | 180 |
| Max. flow rate (m3/h) | 10.8 |
| Max. delivery head (m) | 63-260 |

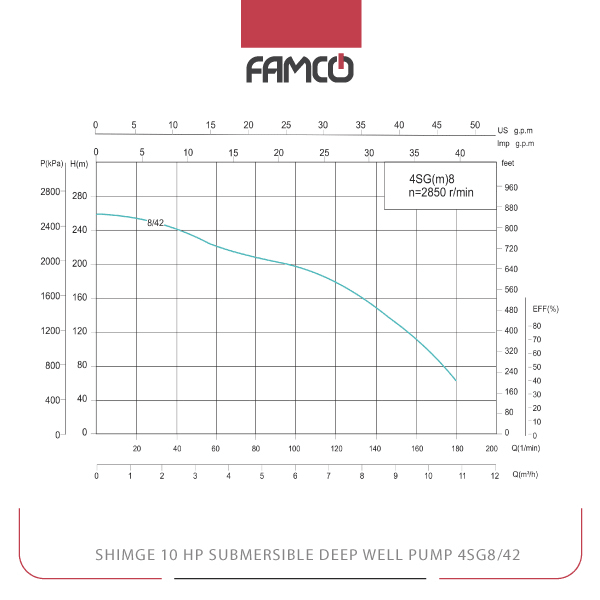

Shimge 10 HP Submersible Deep Well Pump 4SG8/42 Performance Data
| M3/h | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | 9.6 | 10.8 |
| l/min | 0 | 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 |
| Head (m) | 260 | 253 | 241 | 223 | 209 | 198 | 178 | 149 | 112 | 63 |
Shimge 10 HP Submersible Deep Well Pump 4SG8/42 Applications
- Industrial water transfer
- Agricultural irrigation systems
- Municipal water supply
- Deep well pumping
Shimge 10 HP Submersible Deep Well Pump 4SG8/42 Benefits
- High power for demanding tasks
- Suitable for deep water applications
- Handles water with impurities
- Reliable and durable performance
