Shimge 10 HP Submersible Deep Well Pump 4SG4/60

7.5 kW (10 HP)

Three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Shimge 10 HP Submersible Deep Well Pump 4SG4/60

Configured in a three-phase 380V system, the 4SG4/60 is a 1 HP pump designed for deep, heavy-duty tasks. It fits 4-inch or larger boreholes without problems. This Shimge product can operate at 70-meter deep locations. Capable of delivering up to 100 liters per minute or 6 cubic meters per hour, it provides a strong flow rate for various water management needs. The heights it achieves are 89 to 437 meters, used in irrigation, municipal water supply, and industrial processes. Built to withstand water with minimal sand, moderate hydrogen sulfide, and some chloride levels, the pump performs well in difficult tasks.

Related Products

Shimge 10 HP Submersible Deep Well Pump 4SG4/60 Specifications

Achieving a maximum immersion depth of 70 meters, Shimge 4SG4/60 fits boreholes with a diameter of 4 inches. Powered by a 380V three-phase, this submersible pump operates at 7.5 kW (10 HP). Its 100 liters per minute flow rate translates to 6 cubic meters per hour, helping it generate a maximum head of 89 to 437 meters. Ambient temperatures below 40°C best match this Shimge well pump. To increase its effective operation, it handles water with minimal sand content (up to 0.01%), hydrogen sulfide levels up to 1.5 mg/L, and chloride ion concentrations up to 400 mg/L. Its pH tolerance ranges from 6.5 to 8.5. You may incorporate this pumping solution to deep well water extraction, irrigation, and industrial water supply systems, and expect efficient service throughout operations.

Shimge 10 HP Submersible Deep Well Pump 4SG4/60

Specification Value
Power (kW) 7.5
Power (HP) 10
Max. ambient temperature (℃) < 40
Sand content up to 0.01%
Hydrogen sulfide content up to 1.5mg/L
Chloride ion content up to 400mg/L
pH 6.5 to 8.5
Max. immersion depth (m) 70
Three-phase voltage (V) 380
Max. flow rate (l/min) 100
Max. flow rate (m3/h) 6
Max. delivery head (m) 89-437

Shimge 10 HP Submersible Deep Well Pump 4SG4/60 Performance Data

M3/h 0 0.6 1.2 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6
l/min 0 10 20 30 40 50 60 70 80 90 100
Head (m) 437 423 409 396 381 358 323 273 220 158 89

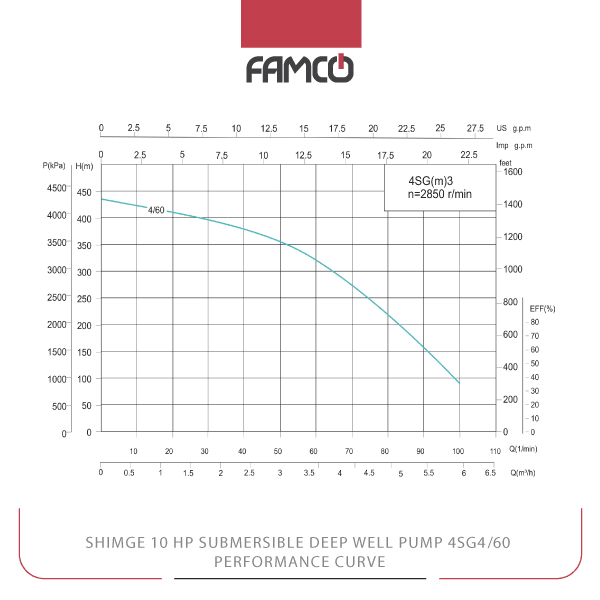

Shimge 10 HP Submersible Deep Well Pump 4SG4/60 Performance Curve

Shimge 10 HP Submersible Deep Well Pump 4SG4/60 Applications

  • Deep well water extraction
  • Irrigation systems
  • Municipal water supply
  • Industrial water management



Shimge 10 HP Submersible Deep Well Pump 4SG4/60 Benefits

  • High efficiency with 7.5 kW power output
  • Suitable for deep boreholes up to 70 meters
  • Reliable operation in challenging water conditions
  • Capable of high flow rates up to 6 m3/h



Shimge 10 HP Submersible Deep Well Pump 4SG4/60 Price List

No. Name Price
1 Shimge 10 HP Submersible Deep Well Pump 4SG4/60 Price Contact us
