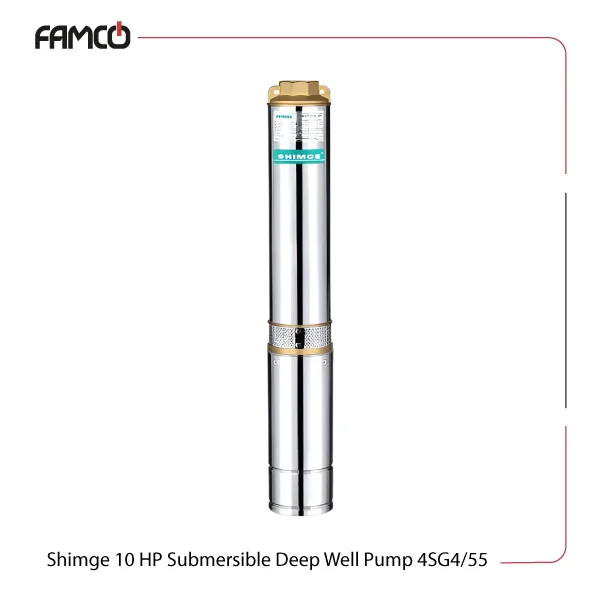

Shimge 10 HP Submersible Deep Well Pump 4SG4/55

7.5 kW (10 HP)

Three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Shimge 10 HP Submersible Deep Well Pump 4SG4/55

Compatible with three-phase 380 voltage, the 4SG4/55 is a 10 HP powerful well pump. Its ability to handle water with some polluting agents has made it suitable for different water sources. This deep well pump’s deep immersion capacity reaches up to 70 meters. A maximum flow rate of 6 m3/h, along with 401-meter heads, keeps this Shimge product on the A list. Whether used in agricultural fields or urban water systems, this pump provides a dependable solution for continuous water flow needs.

Related Products

Shimge 10 HP Submersible Deep Well Pump 4SG4/55 Specifications

The ambient temperature the 4SG4/55 tolerates must not exceed 40°C, which is easy to provide. The pump is capable of passing water containing up to 0.01% sand, 1.5 mg/L hydrogen sulfide, and 400 mg/L chloride ions, which works even in challenging water sources. It functions within a pH range of 6.5 to 8.5. This powerful submersible pump operates at 7.5 kW (10 HP). This pump reaches some of the most challenging depths of up to 70 meters. To enable smooth operations, it works on a stable three-phase voltage of 380V. The maximum flow rate is 100 liters per minute or 6 cubic meters per hour, with a delivery head ranging from 82 to 401 meters. It is designed for placement in 4-inch boreholes, suitable for various groundwater extraction needs.

Shimge 10 HP Submersible Deep Well Pump 4SG4/55

Specification Value
Power (kW) 7.5
Power (HP) 10
Max. ambient temperature (℃) < 40
Sand content up to 0.01%
Hydrogen sulfide content up to 1.5mg/L
Chloride ion content up to 400mg/L
pH 6.5 to 8.5
Max. immersion depth (m) 70
Three-phase voltage (V) 380
Max. flow rate (l/min) 100
Max. flow rate (m3/h) 6
Max. delivery head (m) 82-401
Placement in 4 inch boreholes

Shimge 10 HP Submersible Deep Well Pump 4SG4/55 Performance Data

M3/h 0 0.6 1.2 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6
l/min 0 10 20 30 40 50 60 70 80 90 100
Head (m) 401 388 375 363 349 328 296 250 202 145 82

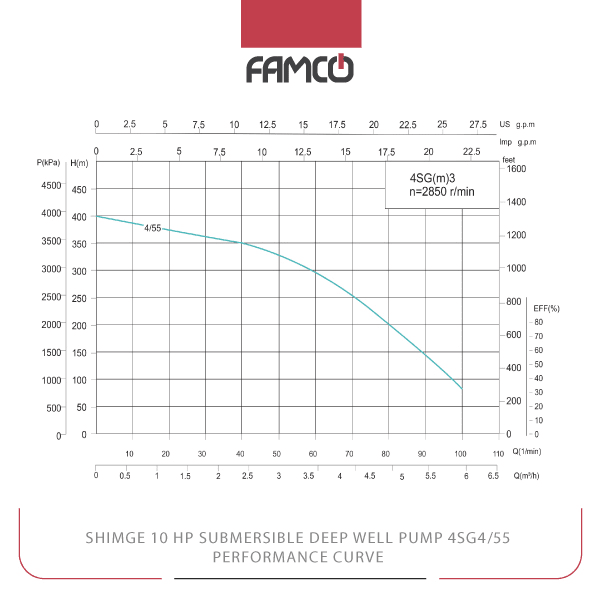

Shimge 10 HP Submersible Deep Well Pump 4SG4/55 Performance Curve

Shimge 10 HP Submersible Deep Well Pump 4SG4/55 Applications

  • Deep well water extraction
  • Irrigation systems
  • Municipal water supply
  • Industrial water processing



Shimge 10 HP Submersible Deep Well Pump 4SG4/55 Benefits

  • High efficiency with 7.5 kW power
  • Suitable for deep immersion up to 70 meters
  • Handles water with minimal sand and contaminants
  • Reliable performance in various water qualities



Shimge 10 HP Submersible Deep Well Pump 4SG4/55 Price List

No. Name Price
1 Shimge 10 HP Submersible Deep Well Pump 4SG4/55 Price Contact us
Brand

Power (kW)

Power (HP)

Maximum Ambient Temperature (°C)

Maximum immersion depth (m)

Voltage (V)

Maximum Flow Rate (m3/h)

Maximum Delivery Head (m)
