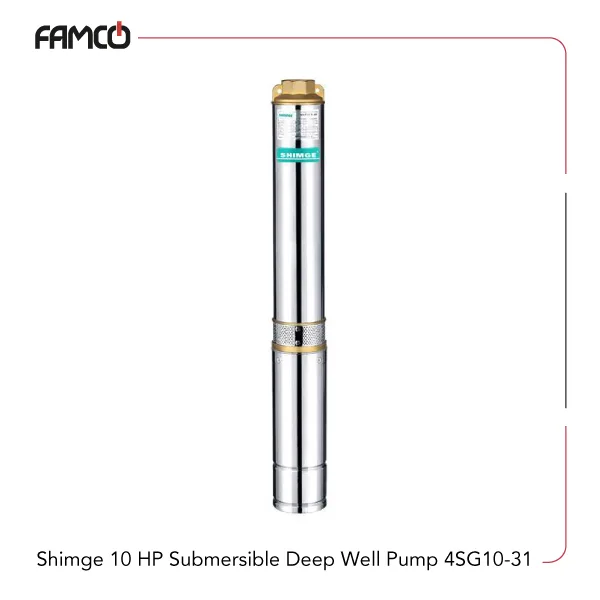

Shimge 10 HP Submersible Deep Well Pump 4SG10/31 Specifications
Shimge 10 HP submersible deep well pump 4SG10/31 operates on a frequency of 50/60 Hz and is designed for three-phase power supply. It delivers a power output of 7.5 kW, equivalent to 10 HP, with a rated current of 18 amperes. The maximum head achievable is 188 meters, making it suitable for high-pressure applications. It can handle a maximum flow rate of 12.6 cubic meters per hour, which translates to 210 liters per minute, ideal for various water transfer needs. This Shimge submersible pump functions efficiently in environments with ambient temperatures below 40°C. It is capable of operating in water with minimal sand content, up to 0.01% by mass, and can tolerate water containing hydrogen sulfide up to 1.5 mg/L and chloride ions up to 400 mg/L. The pH range for optimal operation is between 6.5 and 8.5.
| Specification | Value |
| Frequency (Hz) | 50/60 |
| Number of phases | Three-phase |
| Power (kW) | 7.5 |
| Power (HP) | 10 |
| Rated Current (A) | 18 |
| Maximum Head (m) | 188 |
| Maximum Flow rate (m3/h) | 12.6 |
| Maximum Flow rate (l/min) | 210 |
| Max. ambient temperature | < 40℃ |
| Sand content (in mass fraction) | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH range | 6.5 to 8.5 |
Shimge 10 HP Submersible Deep Well Pump 4SG10/31 Applications
- Municipal water supply systems
- Irrigation in agriculture
- Industrial water transfer
- Flood control and drainage
Shimge 10 HP Submersible Deep Well Pump 4SG10/31 Benefits
- High flow capacity and strong head pressure
- Reliable performance in contaminated water
- Energy-efficient with moderate power consumption
- Durable build suitable for tough environments
Shimge 10 HP Submersible Deep Well Pump 4SG10/31 Price List
| No. | Name | Price |
| 1 | Shimge 10 HP Submersible Deep Well Pump 4SG10/31 Price | Contact us |
