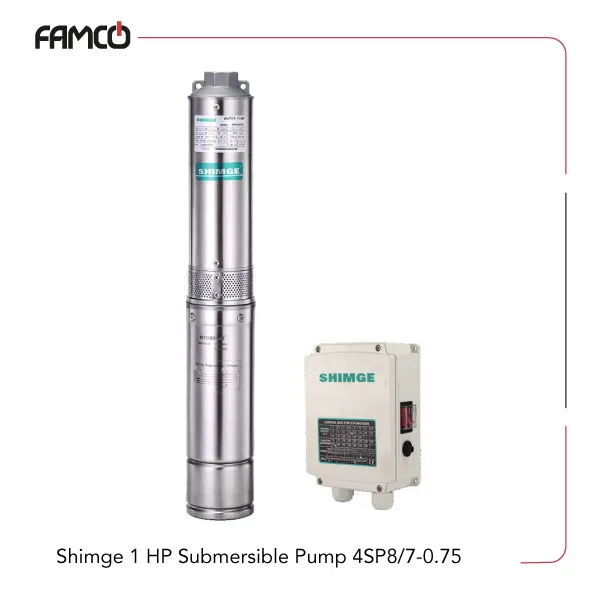

Shimge 1 HP Submersible Pump 4SP8/7-0.75 Specifications
This product is designed to operate efficiently under a variety of environmental conditions. It can withstand ambient temperatures below 40°C and handle water with sand content up to 100 grams per cubic meter. The device is suitable for water with hydrogen sulfide levels up to 1.5 milligrams per liter and chloride ion concentrations up to 400 milligrams per liter. It functions within a pH range of 6.5 to 8.5, ensuring compatibility with most natural water sources.
The equipment can be installed at depths up to 70 meters in 4-inch boreholes, making it ideal for deep well applications. It operates on a single-phase voltage of 220V or a three-phase voltage of 380V, providing flexibility for different power supplies. With a power consumption of 0.75 kilowatts (1 horsepower), this Shimge submersible pump offers a maximum flow rate of 180 liters per minute. The head range varies from 41 meters to 17 meters, with a maximum head capacity of 46 meters, ensuring reliable water delivery across various setups.
| Specification | Value |
| Max. ambient temperature | < 40°C |
| Maximum sand content | 100g/m³ |
| Maximum Hydrogen sulfide content | up to 1.5mg/L |
| Maximum chloride ion content | up to 400mg/L |
| pH range | 6.5 to 8.5 |
| Max. immersion depth | 70 meters |
| Single-phase voltage | 220V |
| Three-phase voltage | 380V |
| Installation | in 4-inch boreholes |
| Power | 0.75 kW |
| Power (HP) | 1 HP |
| Max. flow rate | 180 liters per minute |
| Head range | 41-17 meters |
| Max. head | 46 meters |

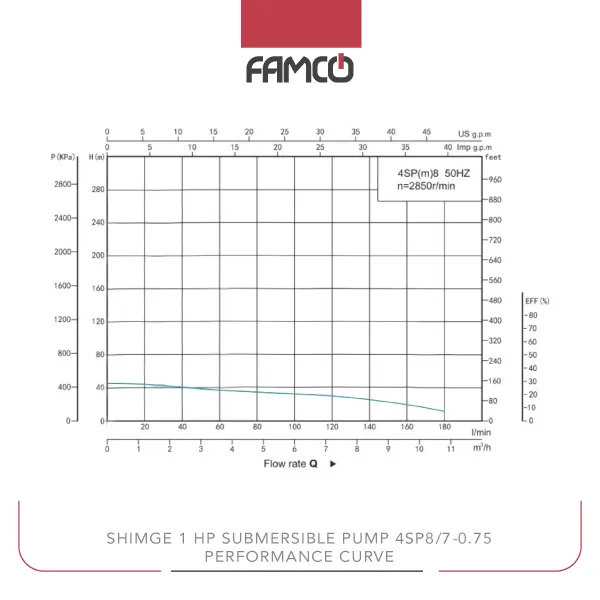

Shimge 1 HP Submersible Pump 4SP8/7-0.75 Performance Data
| m³/h | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | 9.6 | 10.8 |
| l/min | 0 | 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 |
| head (m) | 46 | 44 | 41 | 37 | 35 | 33 | 30 | 26 | 20 | 12 |
Shimge 1 HP Submersible Pump 4SP8/7-0.75 Applications
- Deep well water extraction
- Irrigation systems
- Municipal water supply
- Industrial water management
Shimge 1 HP Submersible Pump 4SP8/7-0.75 Benefits
- High efficiency at deep depths
- Flexible power options
- Suitable for various water qualities
- Reliable flow rate and head capacity
Shimge 1 HP Submersible Pump 4SP8/7-0.75 Price List
| No. | Name | Price |
| 1 | Shimge 1 HP Submersible Pump 4SP8/7-0.75 Price | Contact us |
