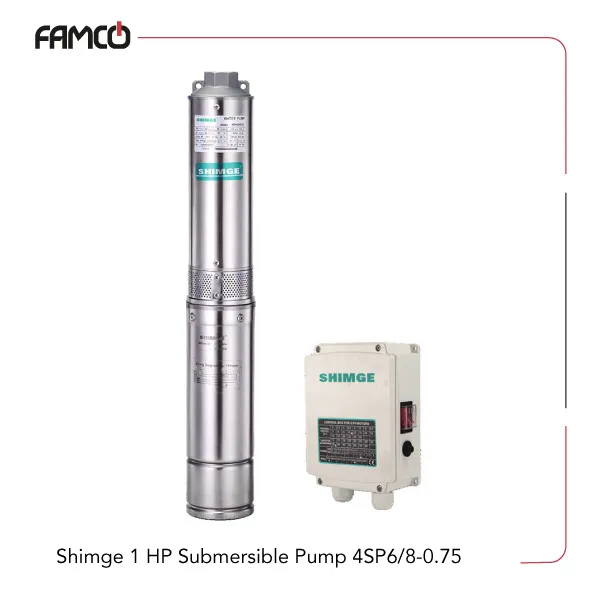

Shimge 1 HP Submersible Pump 4SP6/8-0.75

Shimge 1 HP Submersible Pump 4SP6/8-0.75 Specifications

 The Shimge submersible pumps from the 4SP6 collection function optimally within a pH range of 6.5 to 8.5. This product operates efficiently within a maximum ambient temperature of 40°C and can handle sand content up to 100 grams per cubic meter. It is designed to withstand hydrogen sulfide levels up to 1.5 milligrams per liter and chloride ion concentrations up to 400 milligrams per liter. This Shimge unit can be installed at depths up to 70 meters in 4-inch boreholes. The power supply options include 220V for single-phase and 380V for three-phase systems, with a power consumption of 0.75 kilowatts or 1 horsepower. It supports a maximum flow rate of 70 liters per minute, with a head range from 22 to 52 meters, and a maximum head of 57 meters.



Specification	Value
Max. ambient temperature	< 40°C
Maximum sand content	100g/m³
Maximum Hydrogen sulfide content	up to 1.5mg/L
Maximum chloride ion content	up to 400mg/L
pH	6.5 to 8.5
Max. immersion depth (m)	70
single-phase voltage (V)	220
three-phase voltage (V)	380
installation	in 4-inch boreholes
power (kW)	0.75
power (HP)	1
Max. flow rate (l/min)	70
head range (m)	52-22
max. head (m)	57

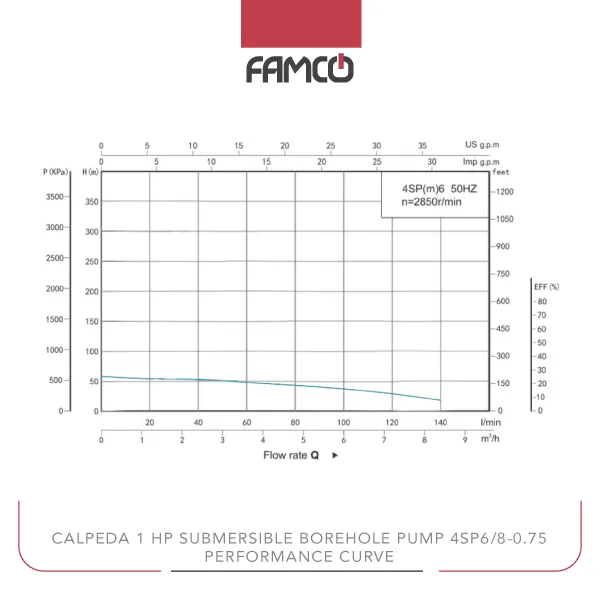

Shimge 1 HP Submersible Pump 4SP6/8-0.75 Performance Data

m³/h	0	1.2	2.4	3.6	4.8	6	7.2	8.4	head range (m)
l/min	0	10	20	30	40	50	60	70
head (m)	57	53	52	47	42	36	28	17	52-22





Shimge 1 HP Submersible Pump 4SP6/8-0.75 Applications

• Deep well water extraction
• Industrial water supply systems
• Agricultural irrigation
• Municipal water treatment



Shimge 1 HP Submersible Pump 4SP6/8-0.75 Benefits

• Handles high sand and contaminant levels
• Operates efficiently at significant depths
• Flexible voltage options for different setups
• Reliable performance in tough environments



Shimge 1 HP Submersible Pump 4SP6/8-0.75 Price List

No.	Name	Price
1	Shimge 1 HP Submersible Pump 4SP6/8-0.75 Price	Contact us
