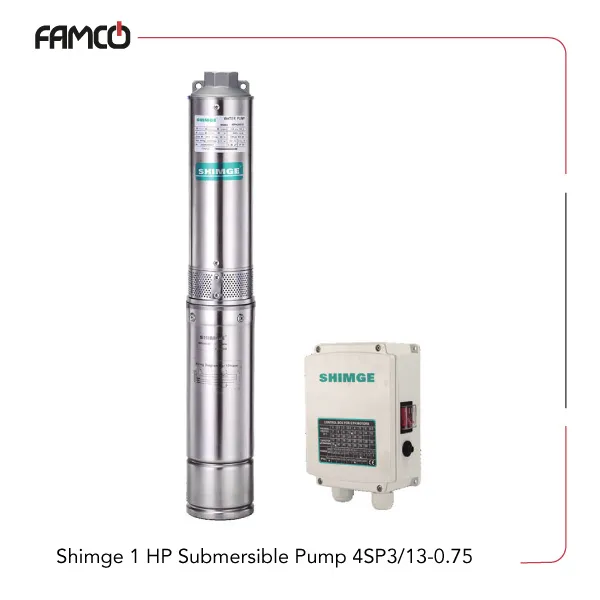

Shimge 1 HP Submersible Pump 4SP3/13-0.75 Specifications
This product is designed to operate efficiently under various environmental conditions, with a maximum ambient temperature of less than 40°C. It can handle water with sand content up to 100 grams per cubic meter, making it suitable for diverse water sources. The device can tolerate hydrogen sulfide levels up to 1.5 milligrams per liter and chloride ion concentrations up to 400 milligrams per liter, ensuring safe operation in different water qualities. It functions within a pH range of 6.5 to 8.5, which covers most natural water sources. The equipment can be immersed up to 70 meters deep, making the Shimge submersible pump ideal for deep well applications. It supports both single-phase (220V) and three-phase (380V) power supplies, allowing flexibility in installation. The power consumption is 0.75 kilowatts or 1 horsepower, providing reliable performance with moderate energy use. The maximum flow rate is 80 liters per minute, suitable for various water transfer needs. The head range varies from 92 to 51 meters, with a maximum head of 96 meters, ensuring effective water pumping across different depths and conditions. Installation is straightforward in 4-inch boreholes, making it suitable for both residential and industrial applications.
| Specification | Value |
| Max. ambient temperature | < 40°C |
| Maximum sand content | 100g/m³ |
| Maximum Hydrogen sulfide content | up to 1.5mg/L |
| Maximum chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth | 70 meters |
| Single-phase voltage | 220V |
| Three-phase voltage | 380V |
| Installation | in 4-inch boreholes |
| Power | 0.75 kW |
| Power (HP) | 1 HP |
| Max. flow rate | 80 liters per minute |
| Head range | 92-51 meters |
| Max. head | 96 meters |

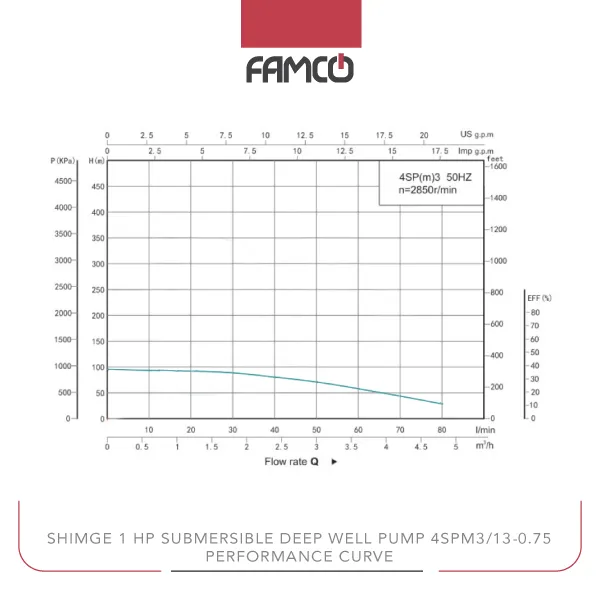

Shimge 1 HP Submersible Pump 4SP3/13-0.75 Performance Data
| m³/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.8 |
| l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
| head (m) | 96 | 93 | 92 | 89 | 80 | 71 | 58 | 44 | 28 |
Shimge 1 HP Submersible Pump 4SP3/13-0.75 Applications
- Deep well water extraction
- Irrigation systems in agriculture
- Industrial water supply
- Residential water pumping
Shimge 1 HP Submersible Pump 4SP3/13-0.75 Benefits
- Supports both single-phase and three-phase power sources
- Handles water with impurities like sand and hydrogen sulfide
- High maximum head for deep water pumping
- Easy installation in standard 4-inch boreholes
Shimge 1 HP Submersible Pump 4SP3/13-0.75 Price List
| No. | Name | Price |
| 1 | Shimge 1 HP Submersible Pump 4SP3/13-0.75 Price | Contact us |
