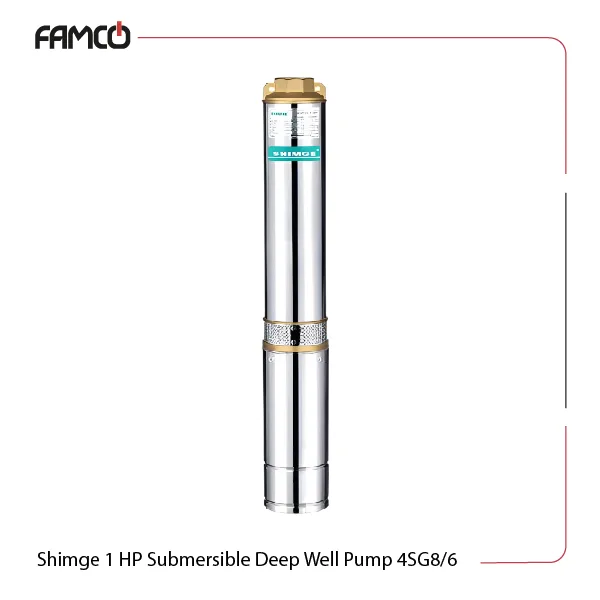

Shimge 1 HP Submersible Deep Well Pump 4SG8/6 Specifications
The device supports both single-phase and three-phase power supplies. It delivers a maximum flow rate of 180 liters per minute and can lift water up to 39 meters high. This product operates with a power of 0.75 kW, equivalent to 1 HP, making it efficient for various applications. It can handle environments with temperatures below 40°C and is designed to work with water containing up to 0.01% sand, 1.5 mg/L hydrogen sulfide, and 400 mg/L chloride ions. The device functions within a pH range of 6.5 to 8.5, which enables compatibility with water qualities. It can be submerged up to 70 meters deep, suitable for deep well applications. These submersible pumps support both single-phase (220V) and three-phase (380V) power supplies. It boasts a maximum flow rate of 180 liters per minute, or 10.8 cubic meters per hour, and can deliver water up to 39 meters high, making it ideal for various water transfer needs. Like other Shimge pumps, this one’s design ensures reliable performance in demanding conditions, making it suitable for residential, industrial, or agricultural use where efficient water pumping is required.
| Specification | Value |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Max. ambient temperature (℃) | < 40 |
| Sand content | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Single-phase voltage (V) | 220 |
| Three-phase voltage (V) | 380 |
| Max. flow rate (l/min) | 180 |
| Max. flow rate (m3/h) | 10.8 |
| Max. delivery head (m) | 39 |

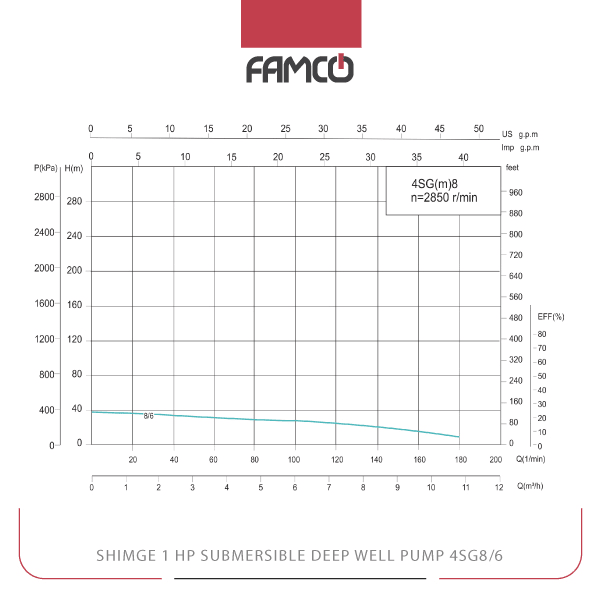

Shimge 1 HP Submersible Deep Well Pump 4SG8/6 Performance Data
| M3/h | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | 9.6 | 10.8 |
| l/min | 0 | 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 |
| Head (m) | 39 | 38 | 35 | 32 | 30 | 28 | 26 | 22 | 17 | 10 |
Shimge 1 HP Submersible Deep Well Pump 4SG8/6 Applications
- Deep well water extraction
- Irrigation systems
- Industrial water transfer
- Municipal water supply
Shimge 1 HP Submersible Deep Well Pump 4SG8/6 Benefits
- High efficiency with 0.75 kW power
- Supports deep immersion up to 70 meters
- Flexible power options with single and three-phase voltage
- Handles water with minimal sand and contaminants
Shimge 1 HP Submersible Deep Well Pump 4SG8/6 Price List
| No. | Name | Price |
| 1 | Shimge 1 HP Submersible Deep Well Pump 4SG8/6 Price | Contact us |
There are no reviews yet.
