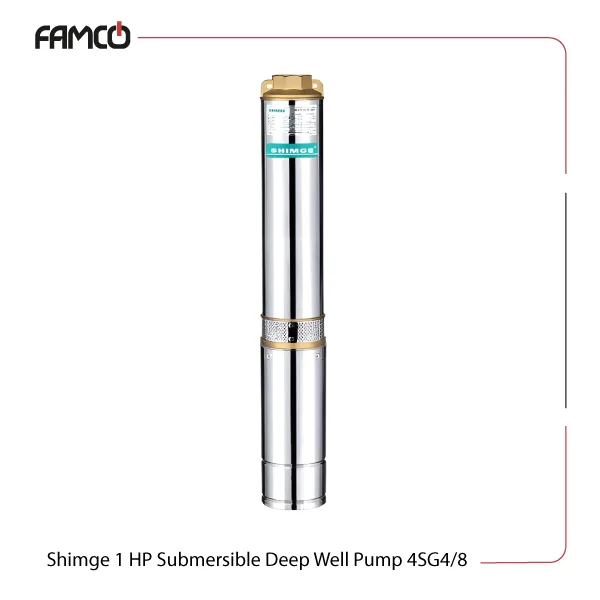

Shimge 1 HP Submersible Deep Well Pump 4SG4/8

0.55 kW (0.75 HP)

Single-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Shimge 1 HP Submersible Deep Well Pump 4SG4/8

Compatible with both single and three-phase systems, this water pump operates on 1 HP. Most suited for temperatures below 40°C, it handles water with minimal sand, hydrogen sulfide, and chloride content. Its ability to work at depths up to 70 meters makes it ideal for groundwater extraction, irrigation, and municipal water supply. With a high 100 l/min flow rate and adjustable 11 to 59 meter delivery head, it ensures consistent water flow for residential, agricultural, or industrial use. Its construction and compatibility with 4-inch boreholes make it a popular choice. This model is provided in both single- or three-phase versions.

Shimge 1 HP Submersible Deep Well Pump 4SGm4/8 (single-phase)

Shimge 1 HP Submersible Deep Well Pump 4SG4/8 (three-phase)

Related Products

Shimge 1 HP Submersible Deep Well Pump 4SG4/8 Specifications

This product features a compact 0.75 kW (1 HP) motor, suitable for various water pumping needs. To get the best performance, it works in ambient temperatures below 40°C. The 4SG4/8 pump can handle sand content up to 0.01. It is capable of managing hydrogen sulfide levels up to 1.5 mg/L and chloride ions up to 400 mg/L, so different water qualities are processed. The pH range of 6.5 to 8.5 allows it to work in slightly acidic to alkaline conditions. Even deeper wells are accessible to the submersible pumps, with a maximum immersion depth of 70 meters. The pump supports both single-phase (220V) and three-phase (380V) power supplies, while being flexible for various setups. It can deliver a maximum flow rate of 100 liters per minute or 6 cubic meters per hour, with a maximum delivery head between 11 and 59 meters. Designed for installation in 4-inch boreholes, this Shimge manufactured pump is perfectly capable of groundwater extraction, irrigation, and other water supply systems.

Shimge 1 HP Submersible Deep Well Pump 4SG4/8

Specification Value
Power (kW) 0.75
Power (HP) 1
Max. ambient temperature (℃) < 40
Sand content up to 0.01%
Hydrogen sulfide content up to 1.5mg/L
Chloride ion content up to 400mg/L
pH 6.5 to 8.5
Max. immersion depth (m) 70
Single-phase voltage (V) 220
Three-phase voltage (V) 380
Max. flow rate (l/min) 100
Max. flow rate (m3/h) 6
Max. delivery head (m) 11-59

Shimge 1 HP Submersible Deep Well Pump 4SG4/8 Performance Data

M3/h 0 0.6 1.2 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6
l/min 0 10 20 30 40 50 60 70 80 90 100
Head (m) 59 57 55 53 51 47 43 37 29 21 11

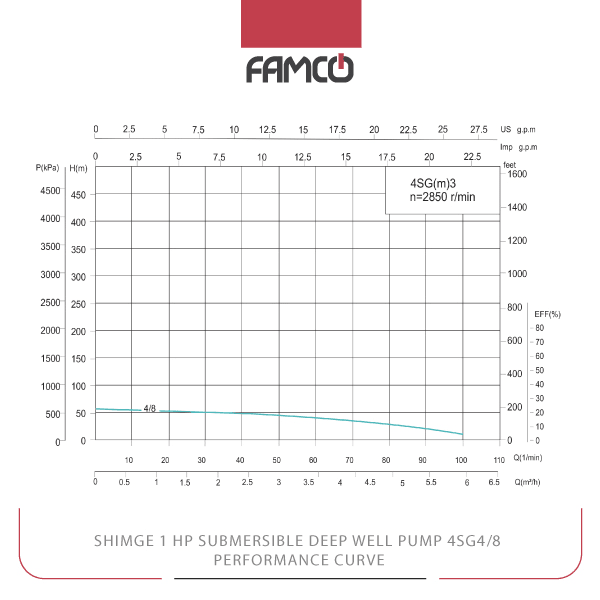

Shimge 1 HP Submersible Deep Well Pump 4SG4/8 Performance Curve

Shimge 1 HP Submersible Deep Well Pump 4SG4/8 Applications

  • Groundwater extraction for residential use
  • Irrigation systems in agriculture
  • Municipal water supply projects
  • Industrial water pumping



Shimge 1 HP Submersible Deep Well Pump 4SG4/8 Benefits

  • High efficiency with low power consumption
  • Suitable for deep well installations up to 70 meters
  • Handles water with minimal sand and contaminants
  • Flexible power options for various setups



Shimge 1 HP Submersible Deep Well Pump 4SG4/8 Price List

No. Name Price
1 Shimge 1 HP Submersible Deep Well Pump 4SG4/8 Price Contact us
Brand

Power (kW)

Power (HP)

Maximum Ambient Temperature (°C)

Voltage (V)

Maximum Flow Rate (m3/h)

Maximum Delivery Head (m)
