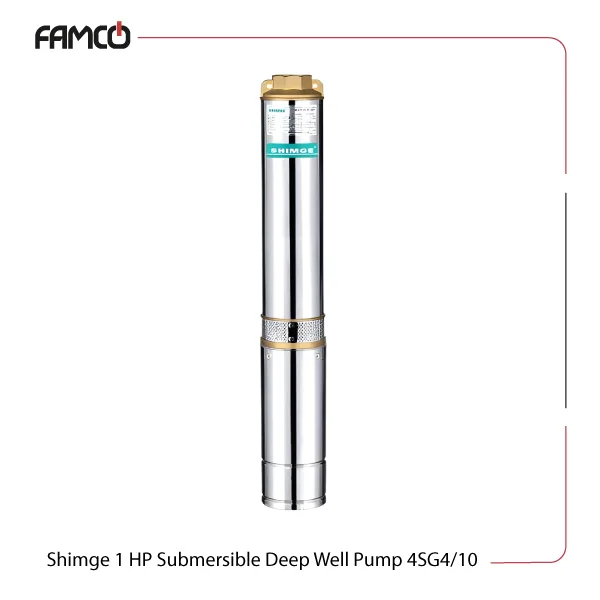

Shimge 1 HP Submersible Deep Well Pump 4SG4/10

0.75 kW (1HP)

Single- or three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Shimge 1 HP Submersible Deep Well Pump 4SG4/10

Compact and powerful, the 4SG4/10 is a 1 HP pump. The pump can operate at depths up to 70 meters and passes 100 liters per minute with a 14 to 74-meter delivery head. Used to extract water from deep boreholes, it is suitable for use in water sources with minimal sand, hydrogen sulfide, and chloride content. This model is provided in both single- or three-phase versions.

Shimge 1 HP Submersible Deep Well Pump 4SGm4/10 (single-phase)

Shimge 1 HP Submersible Deep Well Pump 4SG4/10 (three-phase)

Related Products

Shimge 1 HP Submersible Deep Well Pump 4SG4/10 Specifications

Suitable for various water extraction needs, this pump operates with a power of 0.75 kW (1 HP). It handles ambient temperatures below 40°C while passing liquids with minimal sand content (up to 0.01%). The pump is capable of managing water flows with hydrogen sulfide levels up to 1.5 mg/L and chloride ions up to 400 mg/L for diverse water sources. Most water sources qualify for this pump as long as they are within a pH range of 6.5 to 8.5. This Shimge pump can handle deep well tasks, considering it operates at depths of up to 70 meters.

Shimge 1 HP Submersible Deep Well Pump 4SG4/10

It supports both single-phase (220V) and three-phase (380V) power supplies. The maximum flow rate is 100 liters per minute or 6 cubic meters per hour, with a delivery head ranging from 14 to 74 meters. Its compact size allows its placement in specifically for 4-inch boreholes. This submersible pump is tailored to water extraction projects relying on simultaneous performance and durability.

Specification Value
Power (kW) 0.75
Power (HP) 1
Max. ambient temperature (℃) < 40
Sand content up to 0.01%
Hydrogen sulfide content up to 1.5mg/L
Chloride ion content up to 400mg/L
pH 6.5 to 8.5
Max. immersion depth (m) 70
Single-phase voltage (V) 220
Three-phase voltage (V) 380
Max. flow rate (l/min) 100
Max. flow rate (m3/h) 6
Max. delivery head (m) 14-74

Shimge 1 HP Submersible Deep Well Pump 4SG4/10 Performance Data

M3/h 0 0.6 1.2 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6
l/min 0 10 20 30 40 50 60 70 80 90 100
Head (m) 74 71 69 66 64 59 54 46 36 26 14

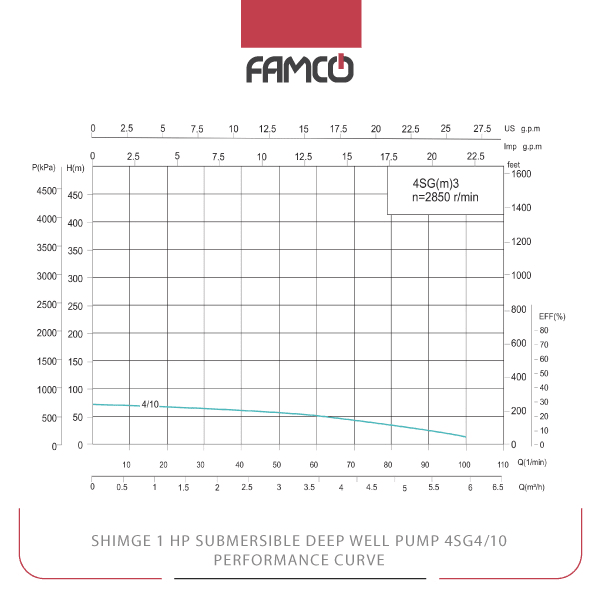

Shimge 1 HP Submersible Deep Well Pump 4SG4/10 Performance Curve

Shimge 1 HP Submersible Deep Well Pump 4SG4/10 Applications

  • Deep well water extraction
  • Agricultural irrigation systems
  • Municipal water supply projects
  • Industrial water processing



Shimge 1 HP Submersible Deep Well Pump 4SG4/10 Benefits

  • High efficiency with 1 HP power
  • Suitable for deep boreholes up to 70 meters
  • Flexible power options: single-phase and three-phase
  • Handles water with minimal sand and contaminants



Shimge 1 HP Submersible Deep Well Pump 4SG4/10 Price List

No. Name Price
1 Shimge 1 HP Submersible Deep Well Pump 4SG4/10 Price Contact us
Brand

Power (kW)

Power (HP)

Maximum Ambient Temperature (°C)

Maximum immersion depth (m)

Voltage (V)

,

Maximum Flow Rate (L/min)

Maximum Delivery Head (m)
