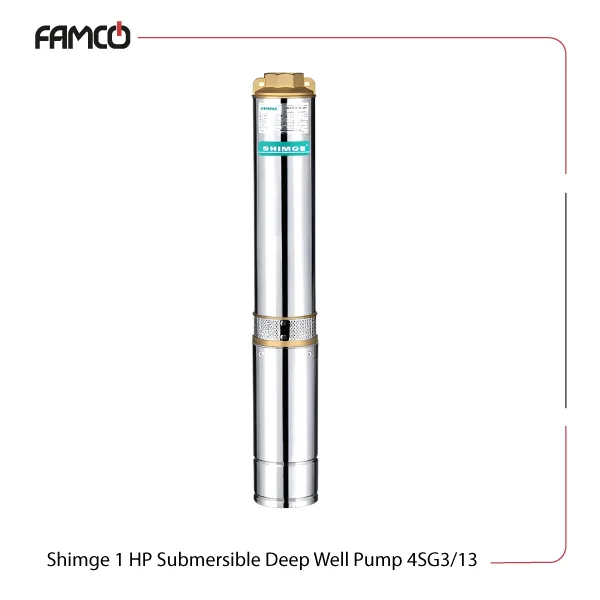

Shimge 1 HP Submersible Deep Well Pump 4SG3/13 Specifications
Covering a wide range of usages, this 1 HP Shimge pump is a friendly choice for voltages in single- and three-phase setups (220 and 380V). To maintain performance in various environments, and as a submersible pump, it can fit in 4-inch boreholes in up to 70-meter deep placements. This Shimge pump has the capacity to tolerate liquids with some pollutants, as shown below. This pumping solution achieves head heights that give users the peace of mind in varying applications, from 28 to 96 meters. Having these features, this series of submersible well pumps is well-suited for professional and more basic workspaces.
| Specification | Value |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Max. ambient temperature (℃) | < 40 |
| Sand content | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Single-phase voltage (V) | 220 |
| Three-phase voltage (V) | 380 |
| Max. flow rate (l/min) | 80 |
| Max. flow rate (m3/h) | 4.8 |
| Max. delivery head (m) | 28-96 |

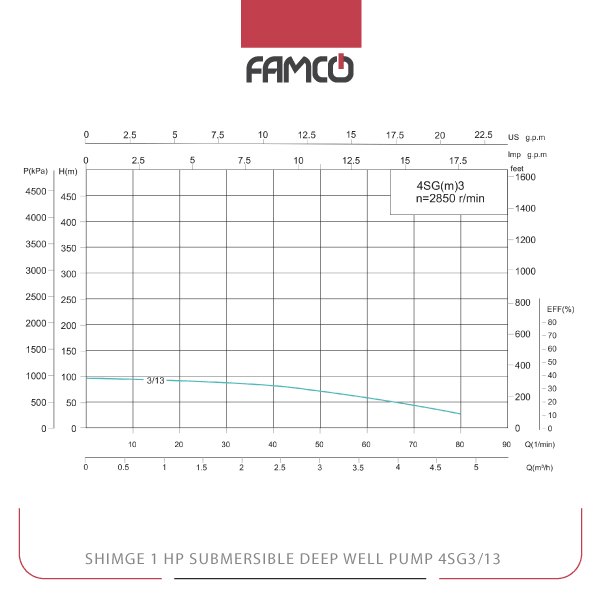

Shimge 1 HP Submersible Deep Well Pump 4SG3/13 Performance Data
| M3/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 |
| l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
| Head (m) | 96 | 93 | 92 | 89 | 80 | 71 | 58 | 44 | 28 |
Shimge 1 HP Submersible Deep Well Pump 4SG3/13 Applications
- Deep well water extraction
- Irrigation systems
- Industrial water supply
- Municipal water projects
Shimge 1 HP Submersible Deep Well Pump 4SG3/13 Benefits
- High efficiency with 0.75 kW power
- Suitable for deep wells up to 70 meters
- Flexible voltage options (220V/380V)
- Handles water with minimal sand and chemical content
Shimge 1 HP Submersible Deep Well Pump 4SG3/13 Price List
| No. | Name | Price |
| 1 | Shimge 1 HP Submersible Deep Well Pump 4SG3/13 Price | Contact us |
