Shimge 1 HP Submersible Deep Well Pump 4SG3/11 Specifications
This product features a power of 0.75 kW (1 HP), suitable for various water pumping needs. It operates efficiently in environments with ambient temperatures below 40°C. The pump can handle water with sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ions up to 400 mg/L. It works within a pH range of 6.5 to 8.5, ensuring compatibility with different water qualities. This product’s placement has been made easy with a 4-inch borehole requirement. To reach the most in-depth applications, its maximum immersion is 70 meters. To maximize its compatibility, it supports both single-phase voltage of 220V and three-phase voltage of 380V. These submersible pumps are equipped with a maximum flow rate of 80 liters per minute or 4.8 cubic meters per hour. With a maximum delivery head ranging from 24 to 81 meters, it is suitable for various water transfer tasks.
| Specification | Value |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Max. ambient temperature (℃) | < 40 |
| Sand content | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Single-phase voltage (V) | 220 |
| Three-phase voltage (V) | 380 |
| Max. flow rate (l/min) | 80 |
| Max. flow rate (m3/h) | 4.8 |
| Max. delivery head (m) | 24-81 |

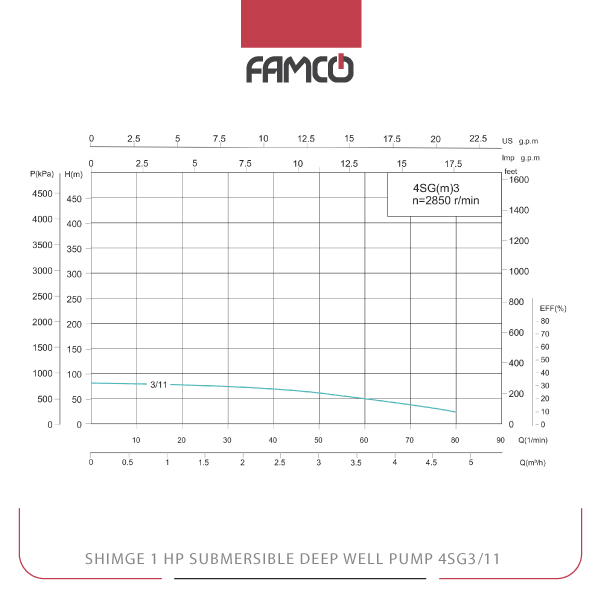

Shimge 1 HP Submersible Deep Well Pump 4SG3/11 Performance Data
| M3/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 |
| l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
| Head (m) | 81 | 79 | 78 | 75 | 68 | 60 | 49 | 37 | 24 |
Shimge 1 HP Submersible Deep Well Pump 4SG3/11 Applications
- Irrigation systems in agriculture
- Deep well water extraction
- Industrial water transfer
- Residential water supply
Shimge 1 HP Submersible Deep Well Pump 4SG3/11 Benefits
- High efficiency with 0.75 kW power
- Suitable for deep water applications up to 70 meters
- Flexible voltage options for different power supplies
- Handles water with specific quality parameters
Shimge 1 HP Submersible Deep Well Pump 4SG3/11 Price List
| No. | Name | Price |
| 1 | Shimge 1 HP Submersible Deep Well Pump 4SG3/11 Price | Contact us |
There are no reviews yet.
