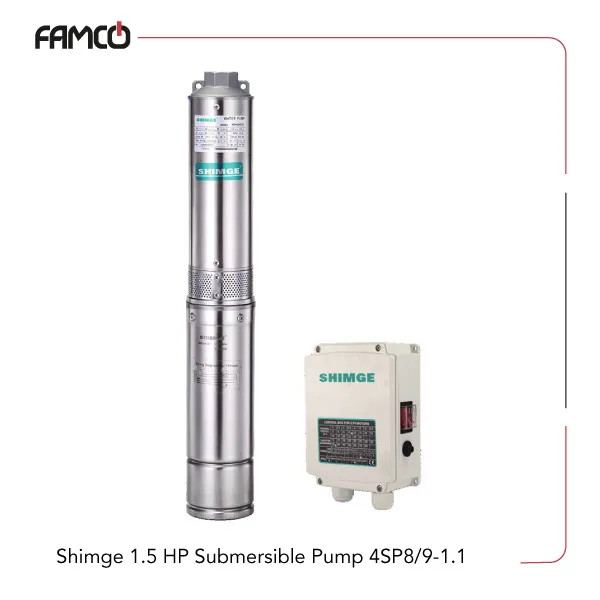

Overview of Shimge 1.5 HP Submersible Pump 4SP8/9-1.1

The 4SP8/9-1.1 is an investment that pays off in water management tasks with flow rates of up to 180 l/min and heads of around 50 meters and beyond. This pumping unit is suitable for environments with moderate temperatures and can handle water with some impurities like sand and hydrogen sulfide. Its installation in 4-inch boreholes makes it ideal for residential, agricultural, or industrial water supply systems. The pump offers a good flow rate and head range in its product class. Its compatibility with both single-phase and three-phase power supplies adds to its flexibility in two modes:

Shimge 1.5 HP Submersible Pump 4SP8/9-1.1 (single-phase)

Shimge 1.5 HP Submersible Pump 4SP8/9-1.1 (three-phase)

Shimge 1.5 HP Submersible Pump 4SP8/9-1.1 Specifications

This product operates efficiently within an ambient temperature of less than 40°C. It can handle sand content up to 100 grams per cubic meter and hydrogen sulfide levels up to 1.5 milligrams per liter. The chloride ion concentration should not exceed 400 milligrams per liter, and it functions well within a pH range of 6.5 to 8.5. Designed for deep water applications, it supports immersion depths up to 70 meters. The device can be powered with a single-phase voltage of 220V or a three-phase voltage of 380V, making it versatile for different setups. It is installed in 4-inch boreholes, ensuring easy integration into existing systems. The power consumption in this Shimge submersible pump is 1.1 kilowatts or 1.5 horsepower, providing a good balance of efficiency and performance. It can deliver a maximum flow rate of 180 liters per minute, with a head range from 52 to 23 meters, and a maximum head of 57 meters, suitable for various water pumping needs.

Specification	Value
Max. ambient temperature	< 40°C
Maximum sand content	100g/m³
Maximum Hydrogen sulfide content	up to 1.5mg/L
Maximum chloride ion content	up to 400mg/L
pH	6.5 to 8.5
Max. immersion depth (m)	70
single-phase voltage (V)	220
three-phase voltage (V)	380
installation	in 4-inch boreholes
power (kW)	1.1
power (HP)	1.5
Max. flow rate (l/min)	180
head range (m)	52-23
max. head (m)	57

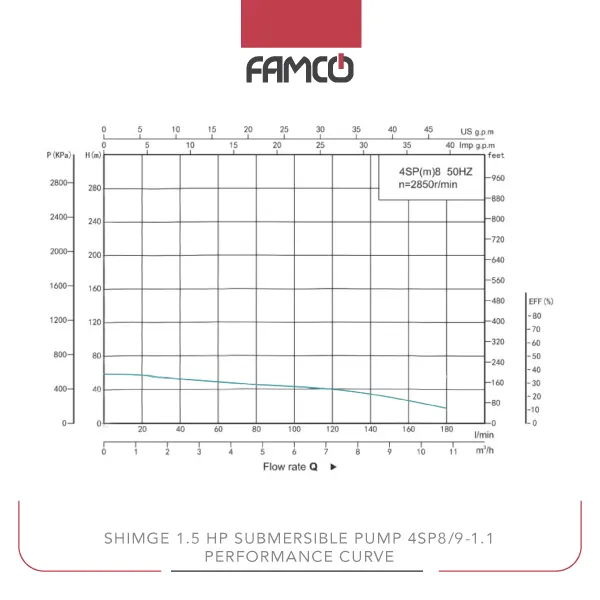

Shimge 1.5 HP Submersible Pump 4SP8/9-1.1 Performance Data

m³/h	0	1.2	2.4	3.6	4.8	6	7.2	8.4	9.6	10.8
l/min	0	20	40	60	80	100	120	140	160	180
head (m)	57	56	52	48	45	43	39	34	28	17

Shimge 1.5 HP Submersible Pump 4SP8/9-1.1 Applications

Deep well water extraction
Irrigation systems in agriculture
Municipal water supply
Industrial water transfer

Shimge 1.5 HP Submersible Pump 4SP8/9-1.1 Benefits

High efficiency with low power consumption
Suitable for various water qualities and impurities
Easy installation in existing boreholes
Reliable performance at different depths and flow rates

Shimge 1.5 HP Submersible Pump 4SP8/9-1.1 Price List

No.	Name	Price
1	Shimge 1.5 HP Submersible Pump 4SP8/9-1.1 Price	Contact us

Brand	Shimge
Applications	Deep well water extraction, Water Supply Connections, Water Transfer and Supply
Power (kW)	1.1
Power (HP)	1.5
Maximum Flow Rate (L/min)	180
Maximum Delivery Head (m)	57
