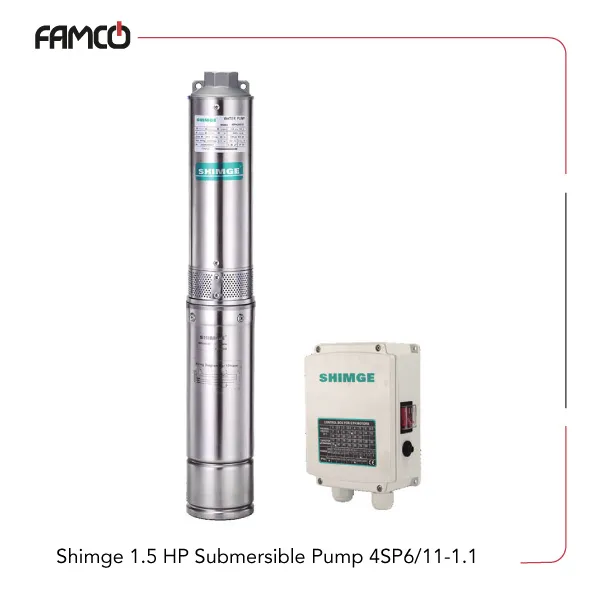

Shimge 1.5 HP Submersible Pump 4SP6/11-1.1 Specifications
This product is designed to operate efficiently under various environmental conditions. It can withstand ambient temperatures below 40°C and handle water with sand content up to 100 grams per cubic meter. The device is suitable for water with hydrogen sulfide levels up to 1.5 milligrams per liter and chloride ions up to 400 milligrams per liter, making it versatile for different water qualities. It functions within a pH range of 6.5 to 8.5, ensuring compatibility with most natural water sources. The maximum immersion depth is 70 meters, allowing deep water extraction. It supports both single-phase (220V) and three-phase (380V) power supplies, making the Shimge submersible pump‘s adaptable to various electrical setups. The installation is designed for 4-inch boreholes, ensuring easy setup. With a power output of 1.1 kilowatts (or 1.5 horsepower), it provides a maximum flow rate of 70 liters per minute. The head range varies from 73 to 31 meters, with a maximum head of 78 meters, suitable for different pumping needs and heights.
| Specification | Value |
| Max. ambient temperature | < 40°C |
| Maximum sand content | 100g/m³ |
| Maximum Hydrogen sulfide content | up to 1.5mg/L |
| Maximum chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| single-phase voltage (V) | 220 |
| three-phase voltage (V) | 380 |
| installation | in 4-inch boreholes |
| power (kW) | 1.1 |
| power (HP) | 1.5 |
| Max. flow rate (l/min) | 70 |
| head range (m) | 73-31 |
| max. head (m) | 78 |
Shimge 1.5 HP Submersible Pump 4SP6/11-1.1 Performance Data
| m³/h | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | head range (m) |
| l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | |
| head (m) | 78 | 74 | 72 | 66 | 58 | 50 | 38 | 25 | 73-31 |
Shimge 1.5 HP Submersible Pump 4SP6/11-1.1 Applications
- Deep well water extraction
- Agricultural irrigation systems
- Residential water supply
- Industrial water pumping
Shimge 1.5 HP Submersible Pump 4SP6/11-1.1 Benefits
- Handles high sand and contaminant levels
- Flexible power options for different setups
- Deep immersion capability up to 70 meters
- Reliable performance in various water qualities
Shimge 1.5 HP Submersible Pump 4SP6/11-1.1 Price List
| No. | Name | Price |
| 1 | Shimge 1.5 HP Submersible Pump 4SP6/11-1.1 Price | Contact us |
