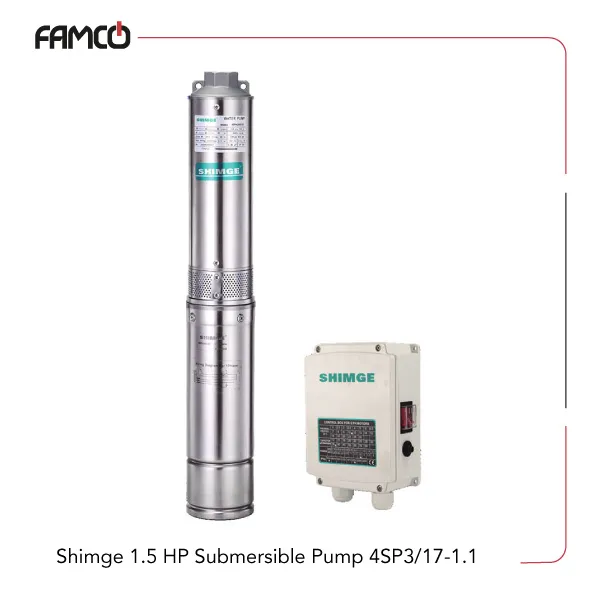

Overview of Shimge 1.5 HP Submersible Pump 4SP3/17-1.1

The 1.5 HP 4SP3/17-1.1 Shimge sends fluids to around 125-meter heights with ease. It is built to operate under specific environmental conditions, including moderate temperatures and water with certain chemical contents. Its one of a kind design allows it to be installed in boreholes with a diameter of 4 inches, making it versatile for different well sizes. The pump’s high head capacity and flow rate make it suitable for tasks like water supply, irrigation, and boosting water pressure in large systems. Its compatibility with both single-phase and three-phase power supplies adds to its flexibility, ensuring it can be used in different settings. Overall, this pump offers a combination of power, durability, and adaptability for efficient water management. You cnn use this Shimge submersible pump operating in and compatible with two power modes:

Shimge 1.5 HP Submersible Pump 4SP3/17-1.1 (Single-phase)

Shimge 1.5 HP Submersible Pump 4SP3/17-1.1 (Three-phase)

Shimge 1.5 HP Submersible Pump 4SP3/17-1.1 Specifications

This product operates efficiently in environments with temperatures below 40°C and can handle sand content up to 100 grams per cubic meter. It is suitable for water with hydrogen sulfide levels up to 1.5 mg/L and chloride ions up to 400 mg/L, making it ideal for various water qualities. The device functions within a pH range of 6.5 to 8.5, ensuring compatibility with most natural water sources. It can be immersed up to 70 meters deep, providing flexibility for different installation depths. Powered by a 220V single-phase or 380V three-phase supply, this Shimge submersible pump delivers 1.1 kW (or 1.5 HP) of power. The pump can handle a maximum flow rate of 80 liters per minute, with a head range from 67 to 120 meters, and a maximum head of 125 meters, making it suitable for high-demand applications and deep well installations.

Shimge 1.5 HP Submersible Pump 4SP3/17-1.1

Specification	Value
Max. ambient temperature	< 40°C
Maximum sand content	100g/m³
Maximum Hydrogen sulfide content	up to 1.5mg/L
Maximum chloride ion content	up to 400mg/L
pH	6.5 to 8.5
Max. immersion depth (m)	70
single-phase voltage (V)	220
three-phase voltage (V)	380
installation	in 4-inch boreholes
power (kW)	1.1
power (HP)	1.5
Max. flow rate (l/min)	80
head range (m)	120-67
max. head (m)	125

Shimge 1.5 HP Submersible Pump 4SP3/17-1.1 Performance Data

m³/h	0	0.6	1.2	1.8	2.4	3	3.6	4.2	4.8
l/min	0	10	20	30	40	50	60	70	80
head (m)	125	122	120	116	109	95	77	56	32

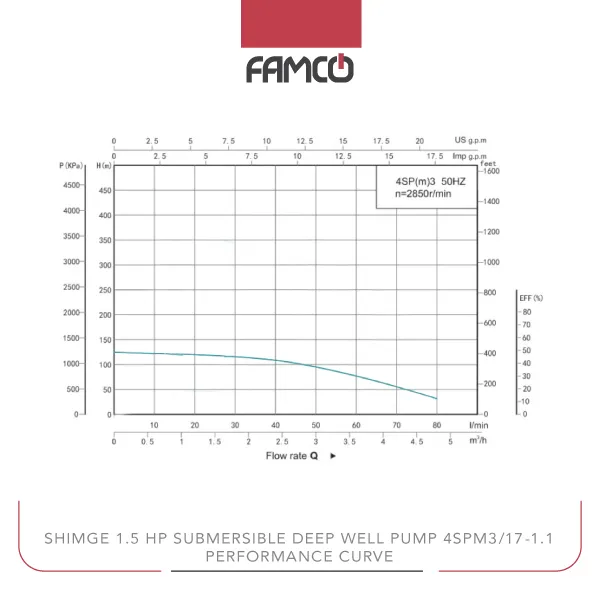

Shimge 1.5 HP Submersible Pump 4SP3/17-1.1 Performance Curve

Shimge 1.5 HP Submersible Pump 4SP3/17-1.1 Applications

Water supply for residential and commercial buildings
Irrigation systems in agriculture
Deep well water extraction
Pressure boosting in water distribution networks

Shimge 1.5 HP Submersible Pump 4SP3/17-1.1 Benefits

High efficiency with a maximum head of 125 meters
Flexible installation options with 70-meter immersion depth
Suitable for water with moderate chemical content
Operates reliably in environments below 40°C

Shimge 1.5 HP Submersible Pump 4SP3/17-1.1 Price List

No.	Name	Price
1	Shimge 1.5 HP Submersible Pump 4SP3/17-1.1 Price	Contact us

Brand	Shimge
Applications	Deep well water extraction, Industrial water transfer, Municipal water supply
Power (kW)	1.1
Power (HP)	1.5
Maximum Flow Rate (L/min)	80
Maximum Delivery Head (m)	125
