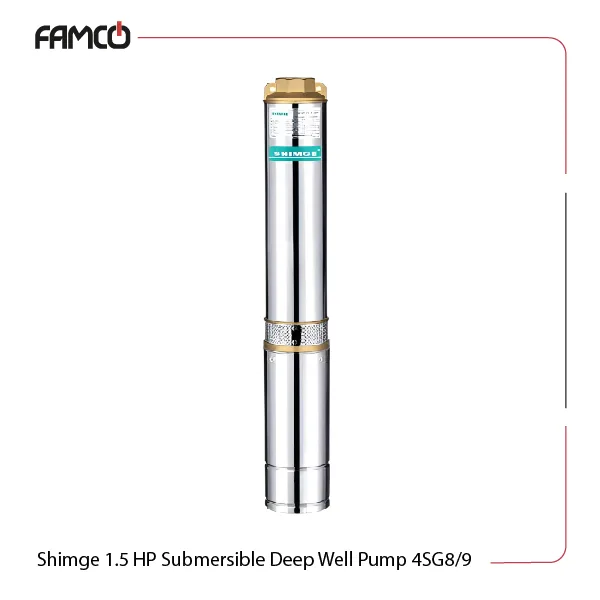

Shimge 1.5 HP Submersible Deep Well Pump 4SG8/9

1.1 kW (1.5 HP)

Single- or three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Shimge 1.5 HP Submersible Deep Well Pump 4SG8/9

Compatible with both single and three-phase setups, the 4SG8/9 is a 1.5 HP water pump. Specific impurities, below 0.01% sand, 1.5 mg/L hydrogen sulfide, and 400 mg/L chloride ions, are safe to handle. Its high 180 liters per minute flow rate, and adjustable 17 to 57-meter head make its integration into irrigation, water supplies, and industrial uses a breeze. The durable design ensures long-term operation even in challenging conditions for both residential and commercial projects. This model is provided in both single- or three-phase versions.

Shimge 1.5 HP Submersible Deep Well Pump 4SG8/9 (single-phase)

Shimge 1.5 HP Submersible Deep Well Pump 4SGm8/9 (three-phase)

Related Products

Shimge 1.5 HP Submersible Deep Well Pump 4SG8/9 Specifications

This product features a power output of 1.1 kW (1.5 HP), suitable for various pumping needs. It operates efficiently in environments with temperatures below 40°C. The pump can handle water with sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ions up to 400 mg/L. This collection of Shimge pumps functions within a pH range of 6.5 to 8.5, to give these submersible pumps the compatibility they require. The maximum immersion depth is 70 meters for deep well applications. It supports both single-phase (220V) and three-phase (380V) power supplies, which provides flexibility for different setups. These Shimge pumps can deliver a maximum flow rate of 180 liters per minute or 10.8 cubic meters per hour, with a maximum head of 17 to 57 meters, suitable for various water transfer tasks.

Shimge 1.5 HP Submersible Deep Well Pump 4SG8/9

Specification Value
Power (kW) 1.1
Power (HP) 1.5
Max. ambient temperature (℃) < 40
Sand content up to 0.01%
Hydrogen sulfide content up to 1.5mg/L
Chloride ion content up to 400mg/L
pH 6.5 to 8.5
Max. immersion depth (m) 70
Single-phase voltage (V) 220
Three-phase voltage (V) 380
Max. flow rate (l/min) 180
Max. flow rate (m3/h) 10.8
Max. delivery head (m) 17-57

Shimge 1.5 HP Submersible Deep Well Pump 4SG8/9 Performance Data

M3/h

0 1.2 2.4 3.6 4.8 6 7.2 8.4 9.6 10.8

l/min

0 20 40 60 80 100 120 140 160 180

Head (m)

57 56 52 48 45 43 39 34 26 17

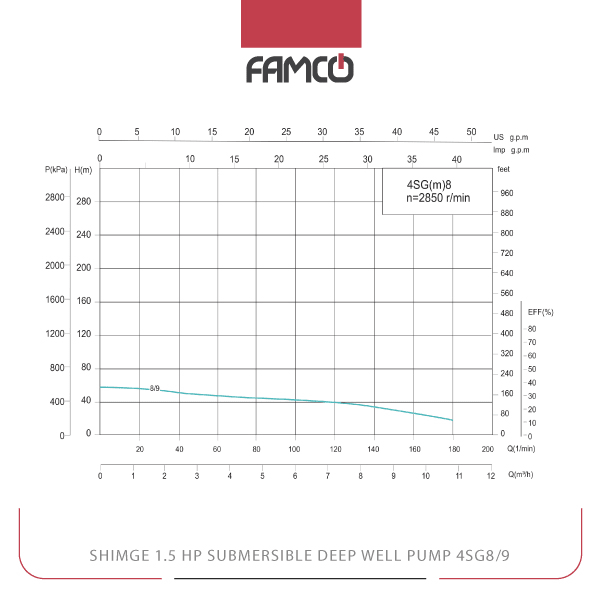

Shimge 1.5 HP Submersible Deep Well Pump 4SG8/9 Performance Curve

Shimge 1.5 HP Submersible Deep Well Pump 4SG8/9 Applications

  • Deep well water extraction
  • Irrigation systems
  • Municipal water supply
  • Industrial water transfer



Shimge 1.5 HP Submersible Deep Well Pump 4SG8/9 Benefits

  • High efficiency with 1.1 kW power output
  • Suitable for various water qualities and impurities
  • Flexible voltage options for different setups
  • Deep immersion capability up to 70 meters



Shimge 1.5 HP Submersible Deep Well Pump 4SG8/9 Price List

No. Name Price
1 Shimge 1.5 HP Submersible Deep Well Pump 4SG8/9 Price Contact us
Brand

Power (kW)

Power (HP)

Maximum Ambient Temperature (°C)

Maximum immersion depth (m)

Voltage (V)

,

Maximum Flow Rate (m3/h)

Maximum Delivery Head (m)
