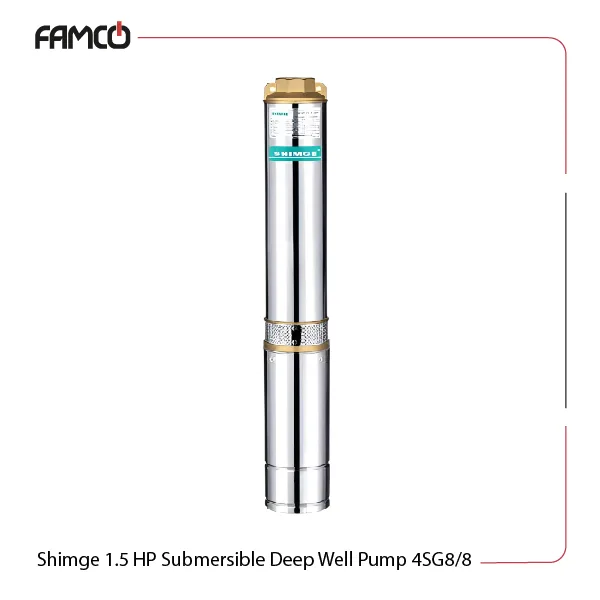

Shimge 1.5 HP Submersible Deep Well Pump 4SG8/8

1.1 kW (1.5 HP)

Single- or three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Shimge 1.5 HP Submersible Deep Well Pump 4SG8/8

This 1.5 HP water pump is designed for efficient water transfer with a maximum of 180 l/min. The 4SG8/8 can operate in environments with moderate temperatures (up to 40℃) while handling water with some impurities, like sand and chloride ions (up to 0.01% and 400mg/L, respectively). Its 10.8 m3h highest flow rate and adjustable 15-51 meter head make it versatile for different applications, from irrigation to water supply systems. This model is provided in both single- or three-phase versions.

Shimge 1.5 HP Submersible Deep Well Pump 4SG8/8 (single-phase)

Shimge 1.5 HP Submersible Deep Well Pump 4SGm8/8 (three-phase)

Related Products

Shimge 1.5 HP Submersible Deep Well Pump 4SG8/8 Specifications

This product features a power output of 1.1 kW (1.5 HP), suitable for various water pumping needs. It operates efficiently in environments with ambient temperatures below 40°C. The device can handle water with sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ion concentrations up to 400 mg/L. It functions within a pH range of 6.5 to 8.5 to reinforce a submersible pump with utmost compatibility. The maximum immersion depth is 70 meters, making it ideal for deep water applications. It supports both single-phase voltage of 220V and three-phase voltage of 380V, providing flexibility for different power setups. The pump can deliver a maximum flow rate of 180 liters per minute, equivalent to 10.8 cubic meters per hour, with a maximum delivery head ranging from 15 to 51 meters. These specifications make it a reliable choice for various industrial, agricultural, and domestic water transfer tasks, combining power efficiency with durability and adaptability to different water conditions. Overall, this Shimge pump is a reliable and efficient solution for various water management needs, combining power, flexibility, and durability in one compact unit.

Shimge 1.5 HP Submersible Deep Well Pump 4SG8/8

Specification Value
Power (kW) 1.1
Power (HP) 1.5
Max. ambient temperature (℃) < 40
Sand content up to 0.01%
Hydrogen sulfide content up to 1.5mg/L
Chloride ion content up to 400mg/L
pH 6.5 to 8.5
Max. immersion depth (m) 70
Single-phase voltage (V) 220
Three-phase voltage (V) 380
Max. flow rate (l/min) 180
Max. flow rate (m3/h) 10.8
Max. delivery head (m) 15-51

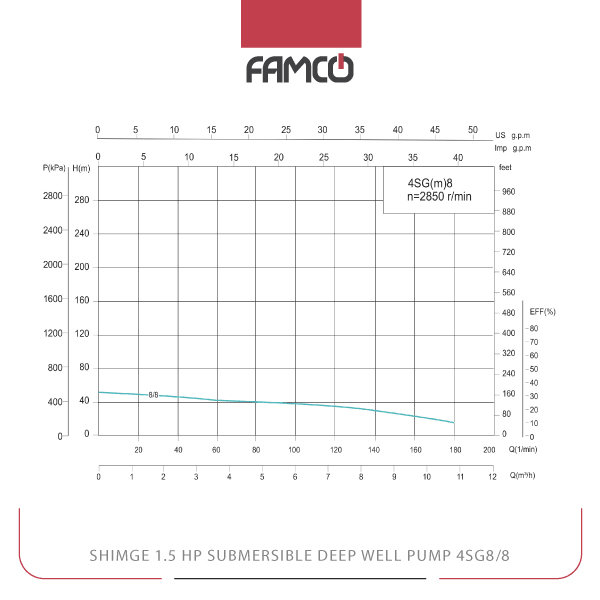

Shimge 1.5 HP Submersible Deep Well Pump 4SG8/8 Performance Data

M3/h 0 1.2 2.4 3.6 4.8 6 7.2 8.4 9.6 10.8
l/min 0 20 40 60 80 100 120 140 160 180
Head (m) 51 50 46 43 40 38 35 30 23 15

Shimge 1.5 HP Submersible Deep Well Pump 4SG8/8

Shimge 1.5 HP Submersible Deep Well Pump 4SG8/8 Applications

  • Irrigation systems for agriculture
  • Water supply for residential or commercial buildings
  • Industrial water transfer tasks
  • Deep well water extraction



Shimge 1.5 HP Submersible Deep Well Pump 4SG8/8 Benefits

  • High flow rate for efficient water transfer
  • Flexible power options with single and three-phase support
  • Durable design suitable for challenging water conditions
  • Adjustable head for versatile applications



Shimge 1.5 HP Submersible Deep Well Pump 4SG8/8 Price List

No. Name Price
1 Shimge 1.5 HP Submersible Deep Well Pump 4SG8/8 Price Contact us
Brand

Power (kW)

Power (HP)

Maximum Ambient Temperature (°C)

Maximum immersion depth (m)

Voltage (V)

,

Maximum Flow Rate (L/min)

Maximum Delivery Head (m)
