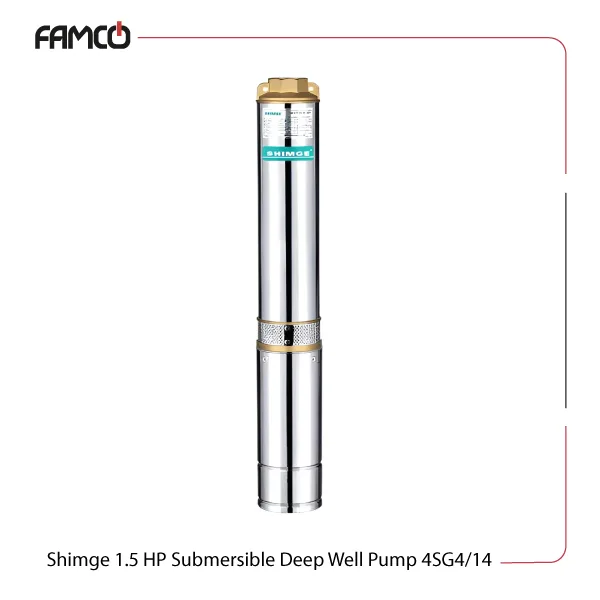

Shimge 1.5 HP Submersible Deep Well Pump 4SG4/14

1.1 kW (1.5 HP)

Single-or three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Shimge 1.5 HP Submersible Deep Well Pump 4SG4/14

The 4SG4/14 is equipped with a power of 1.1 kW, reaching 104-meter head heights. Even 70-meter boreholes are reachable with this Shimge product. Easy to install in 4-inch boreholes, it is compatible with standard 220V and 380V power sources. The pump’s 100 l/min flow rate and 6 m3/h head range make it customizable based on different water pressure requirements. Its design emphasizes durability and efficiency for well water pumping, irrigation systems, and other water management applications. This model is provided in both single- or three-phase versions.

Shimge 1.5 HP Submersible Deep Well Pump 4SGm4/14 (single-phase)

Shimge 1.5 HP Submersible Deep Well Pump 4SG4/14 (three-phase)

Related Products

Shimge 1.5 HP Submersible Deep Well Pump 4SG4/14 Specifications

This product features a power of 1.1 kW (1.5 HP). To maintain optimal performance, it operates best in ambient temperatures below 40°C. The pump can handle water with sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ion concentrations up to 400 mg/L. It functions within a pH range of 6.5 to 8.5. The maximum 70-meter immersion depth allows deep well applications. Its running on 220V single- and 380V three-phase power supplies has made it a flexible choice. The pump can deliver a maximum flow rate of 100 liters per minute, equivalent to 6 cubic meters per hour. This submersible pump has a maximum delivery head ranging from 21 to 104 meters with strong water pressure. Designed for placement in 4-inch boreholes, this pump takes on well water extraction, irrigation, and other water supply systems at various depths and flow rates.

Shimge 1.5 HP Submersible Deep Well Pump 4SG4/14

Specification Value
Power (kW) 1.1
Power (HP) 1.5
Max. ambient temperature (℃) < 40
Sand content up to 0.01%
Hydrogen sulfide content up to 1.5mg/L
Chloride ion content up to 400mg/L
pH 6.5 to 8.5
Max. immersion depth (m) 70
Single-phase voltage (V) 220
Three-phase voltage (V) 380
Max. flow rate (l/min) 100
Max. flow rate (m3/h) 6
Max. delivery head (m) 21-104

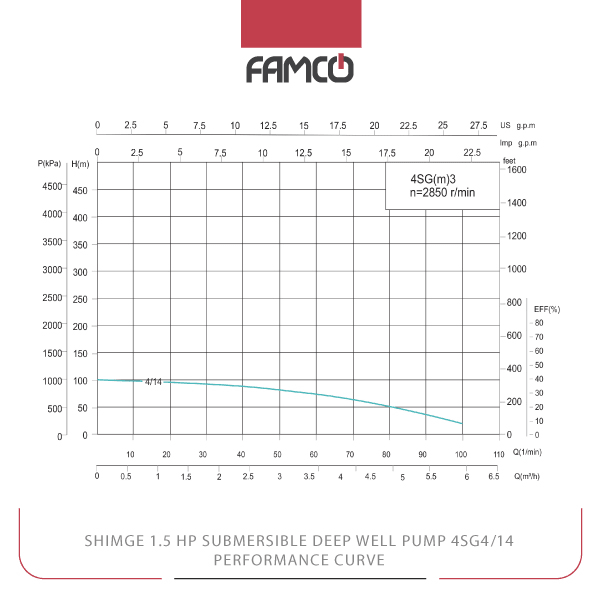

Shimge 1.5 HP Submersible Deep Well Pump 4SG4/14 Performance Curve

M3/h 0 0.6 1.2 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6
l/min 0 10 20 30 40 50 60 70 80 90 100
Head (m) 104 99 97 95 90 84 76 65 53 39 21

Shimge 1.5 HP Submersible Deep Well Pump 4SG4/14 Performance Curve

Shimge 1.5 HP Submersible Deep Well Pump 4SG4/14 Applications

  • Deep well water extraction
  • Irrigation systems for agriculture
  • Residential water supply
  • Industrial water pumping



Shimge 1.5 HP Submersible Deep Well Pump 4SG4/14 Benefits

  • High efficiency with 1.1 kW power
  • Suitable for deep boreholes up to 70 meters
  • Handles water with specific quality parameters
  • Easy to install in standard 4-inch boreholes



Shimge 1.5 HP Submersible Deep Well Pump 4SG4/14 Price List

No. Name Price
1 Shimge 1.5 HP Submersible Deep Well Pump 4SG4/14 Price Contact us
