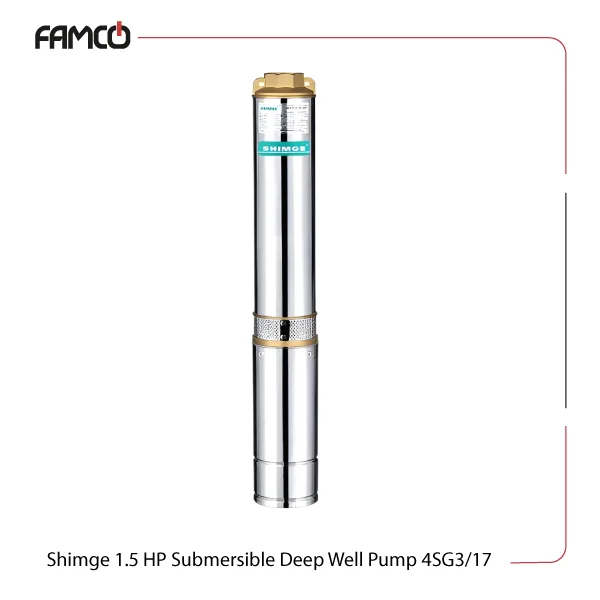

Shimge 1.5 HP Submersible Deep Well Pump 4SG3/17 Specifications
Featuring a power output of 1.1 kW (1.5 HP), this Shimge pumping engineering operates best with ambient temperatures below 40°C. If impurities are a concern, this pump is the answer. This submersible pump handles water with sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ion concentrations up to 400 mg/L. It functions within a pH range of 6.5 to 8.5, so it works well with different water qualities. The maximum immersion depth is 70 meters, and deeper pumping locations remain accessible. It supports both single-phase (220V) and three-phase (380V) power supplies. The pump can deliver a maximum flow rate of 80 liters per minute or 4.8 cubic meters per hour. With a compact design, a 4-inch installation space suffices. Its maximum delivery head ranges from 32 to 125 meters, so it lifts water efficiently over various heights. Overall, this product is designed for reliable water transfer, suitable for industrial, agricultural, and municipal water systems.
| Specification | Value |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Max. ambient temperature (℃) | < 40 |
| Sand content | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Single-phase voltage (V) | 220 |
| Three-phase voltage (V) | 380 |
| Max. flow rate (l/min) | 80 |
| Max. flow rate (m3/h) | 4.8 |
| Max. delivery head (m) | 32-125 |

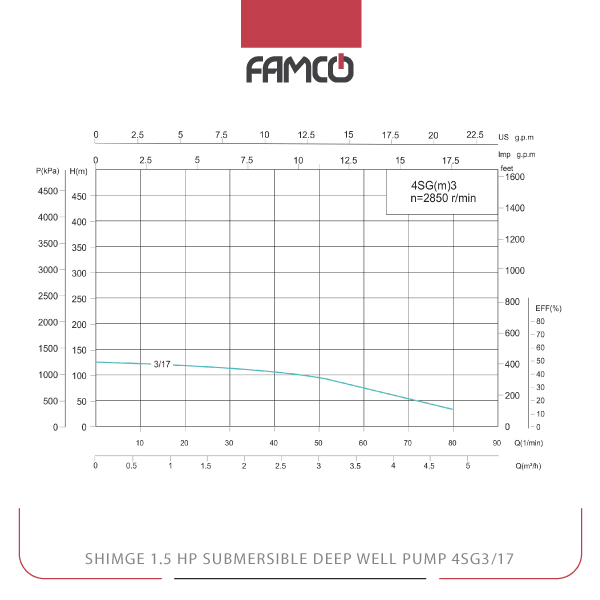

Shimge 1.5 HP Submersible Deep Well Pump 4SG3/17 Performance Data
| M3/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 |
| l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
| Head (m) | 125 | 122 | 120 | 116 | 109 | 95 | 77 | 56 | 32 |
Shimge 1.5 HP Submersible Deep Well Pump 4SG3/17 Applications
- Irrigation systems for agriculture
- Water supply in municipal projects
- Industrial water transfer
- Deep well pumping
Shimge 1.5 HP Submersible Deep Well Pump 4SG3/17 Benefits
- High efficiency with a maximum flow rate of 80 l/min
- Flexible power options with single and three-phase support
- Deep immersion capability up to 70 meters
- Suitable for water with minor impurities like sand and chlorides
Shimge 1.5 HP Submersible Deep Well Pump 4SG3/17 Price List
| No. | Name | Price |
| 1 | Shimge 1.5 HP Submersible Deep Well Pump 4SG3/17 Price | Contact us |
