Shimge 1.5 HP Submersible Deep Well Pump 4SG3/15 Specifications
This product features a power output of 1.1 kW (1.5 HP), suitable for various pumping needs. It operates efficiently in environments with ambient temperatures below 40°C. The device can handle water with sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ion concentrations up to 400 mg/L. It functions well within a pH range of 6.5 to 8.5. The maximum immersion depth is 70 meters, so that far down pumping locations are never out of reach. It supports both single-phase voltage of 220V and three-phase voltage of 380V to support most available power systems. This series of submersible pumps has recorded a maximum flow rate of 80 liters per minute, which equals 4.8 cubic meters per hour. Its maximum delivery head ranges from 28 to 110 meters, making it suitable for various lifting and water transfer tasks.
| Specification | Value |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Max. ambient temperature (℃) | < 40 |
| Sand content | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Single-phase voltage (V) | 220 |
| Three-phase voltage (V) | 380 |
| Max. flow rate (l/min) | 80 |
| Max. flow rate (m3/h) | 4.8 |
| Max. delivery head (m) | 28-110 |

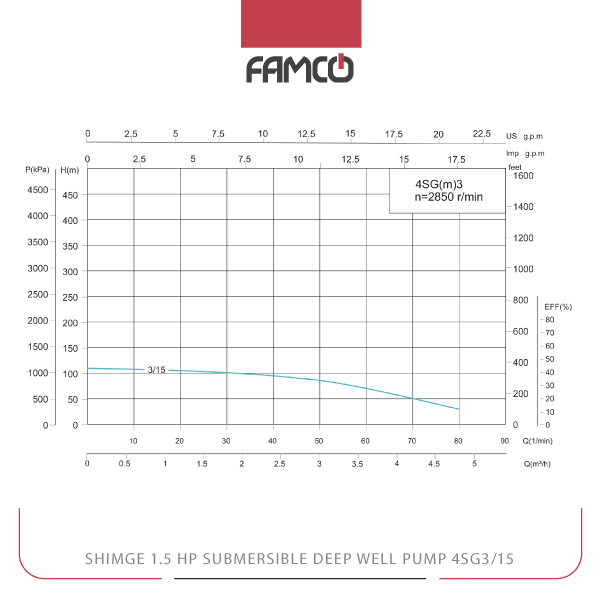

Shimge 1.5 HP Submersible Deep Well Pump 4SG3/15 Performance Data
| M3/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 |
| l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
| Head (m) | 110 | 108 | 106 | 102 | 96 | 84 | 68 | 49 | 28 |
Shimge 1.5 HP Submersible Deep Well Pump 4SG3/15 Applications
- Deep well water extraction
- Irrigation systems for agriculture
- Industrial water transfer
- Municipal water supply
Shimge 1.5 HP Submersible Deep Well Pump 4SG3/15 Benefits
- High efficiency with 1.1 kW power output
- Suitable for deep water applications up to 70 meters
- Handles water with impurities like sand and hydrogen sulfide
- Flexible power options with single-phase and three-phase support
Shimge 1.5 HP Submersible Deep Well Pump 4SG3/15 Price List
| No. | Name | Price |
| 1 | Shimge 1.5 HP Submersible Deep Well Pump 4SG3/15 Price | Contact us |
