Shimge 0.75 HP Submersible Pump 4SPm8/5-0.55

0.55 kW (0.75 HP)

Single-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Shimge Pumps, Shimge Submersible Pumps

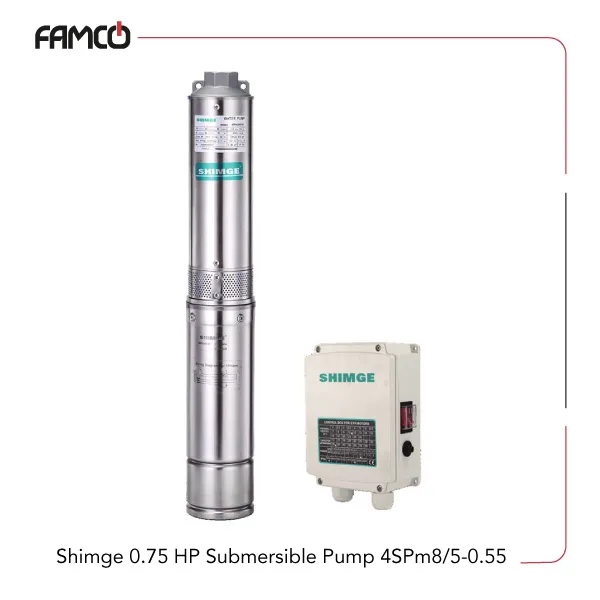

Overview of Shimge 0.75 HP Submersible Pump 4SPm8/5-0.55

The 4SPm3/9-0.55 is a 0.75 HP Shimge pump with flow rates reaching 10.8 m³/h. This Shimge submersible pump is suitable for use in environments with moderate temperatures and water quality conditions. Its compact size and efficient power consumption make it ideal for residential, agricultural, and industrial water supply systems. The pump’s ability to operate at significant depths and handle different water qualities ensures versatility and durability in various settings. Easy installation in 4-inch boreholes and a robust design allow for long-term use with minimal maintenance.

Shimge 0.75 HP Submersible Pump 4SPm8/5-0.55 Specifications

This product operates efficiently in environments with a maximum ambient temperature of less than 40°C. It can handle sand content up to 100 grams per cubic meter and hydrogen sulfide levels up to 1.5 milligrams per liter. The chloride ion concentration should not exceed 400 milligrams per liter, and the pH level must stay within 6.5 to 8.5 for optimal performance. This Shimge submersible pump is designed for installation in boreholes with a diameter of 4 inches and can be submerged up to 70 meters deep. The device runs on a single-phase power supply of 220 volts and consumes 0.55 kilowatts (or 0.75 horsepower). It can deliver a maximum flow rate of 180 liters per minute, with a head range from 11 to 28 meters, and a maximum head of 32 meters, making it suitable for various water pumping applications.

Specification	Value
Max. ambient temperature	< 40°C
Maximum sand content	100g/m³
Maximum Hydrogen sulfide content	up to 1.5mg/L
Maximum chloride ion content	up to 400mg/L
pH	6.5 to 8.5
Max. immersion depth (m)	70
Single-phase voltage (V)	220
Installation	in 4-inch boreholes
Power (kW)	0.55
Power (HP)	0.75
Max. flow rate (l/min)	180
Head range (m)	28-11
Max. head (m)	32

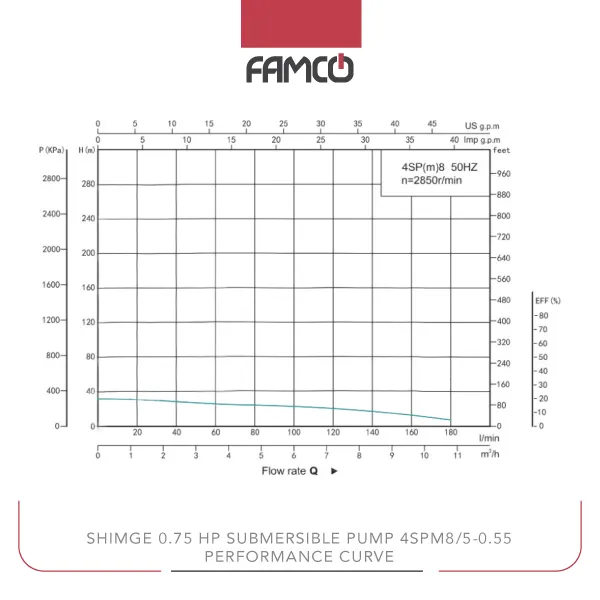

Shimge 0.75 HP Submersible Pump 4SPm8/5-0.55 Performance Data

m³/h	0	1.2	2.4	3.6	4.8	6	7.2	8.4	9.6	10.8
l/min	0	20	40	60	80	100	120	140	160	180
head (m)	32	31	28	26	25	23	21	17	13	7

Shimge 0.75 HP Submersible Pump 4SPm8/5-0.55 Applications

Residential water supply systems
Agricultural irrigation projects
Industrial water extraction
Deep well water pumping

Shimge 0.75 HP Submersible Pump 4SPm8/5-0.55 Benefits

High efficiency at low power consumption
Suitable for deep borehole installation
Handles water with moderate sand and chemical content
Easy to install and maintain

Shimge 0.75 HP Submersible Pump 4SPm8/5-0.55 Price List

No.	Name	Price
1	Shimge 0.75 HP Submersible Pump 4SPm8/5-0.55 Price	Contact us

Brand	Shimge
Applications	Domestic, Civil, Industrial, Municipal water supply, Water Supply Lines
Power (kW)	0.55
Power (HP)	0.75
Maximum Flow Rate (L/min)	180
Maximum Delivery Head (m)	32
